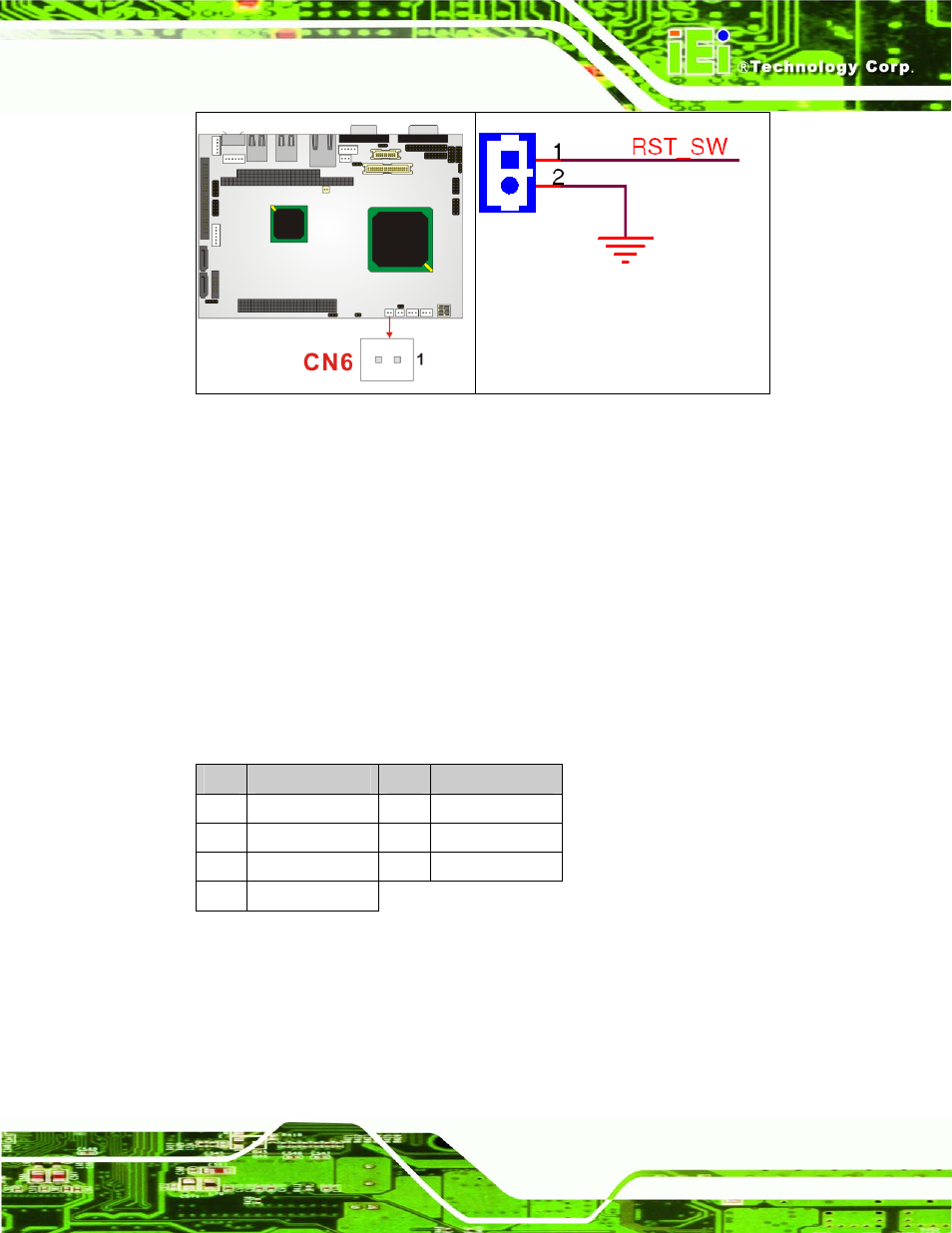

Figure 4-22: CN6 Connector Location
4.2.21 SATA Drive Ports
CN Label: CN10, CN11
CN Type: 7-pin port
CN Pinouts: See Table 4-25
CN Location: See Figure 4-23
The SATA drive ports provide connectivity to SATA drives with a maximum data transfer
rate of 150MB/s.
PIN DESCRIPTION PIN DESCRIPTION
1 GND 5 RX-
2 TX+ 6 RX+
3 TX- 7 GND
4 GND
Table 4-25: CN10, CN11 Connector Pinouts
