NANO-LX EPIC SBC
Mini jumper Pack
Quick Installation Guide
Utility CD
5.4 SO-DIMM Installation
WARNING:
Using incorrectly specified SO-DIMM may cause permanently damage
the NANO-LX. Please make sure the purchased SO-DIMM complies
with the memory specifications of the NANO-LX. SO-DIMM
specifications compliant with the NANO-LX are listed in Chapter 2.
To install a SO-DIMM into a SO-DIMM socket, please follow the steps below and refer to
Figure 5-1.

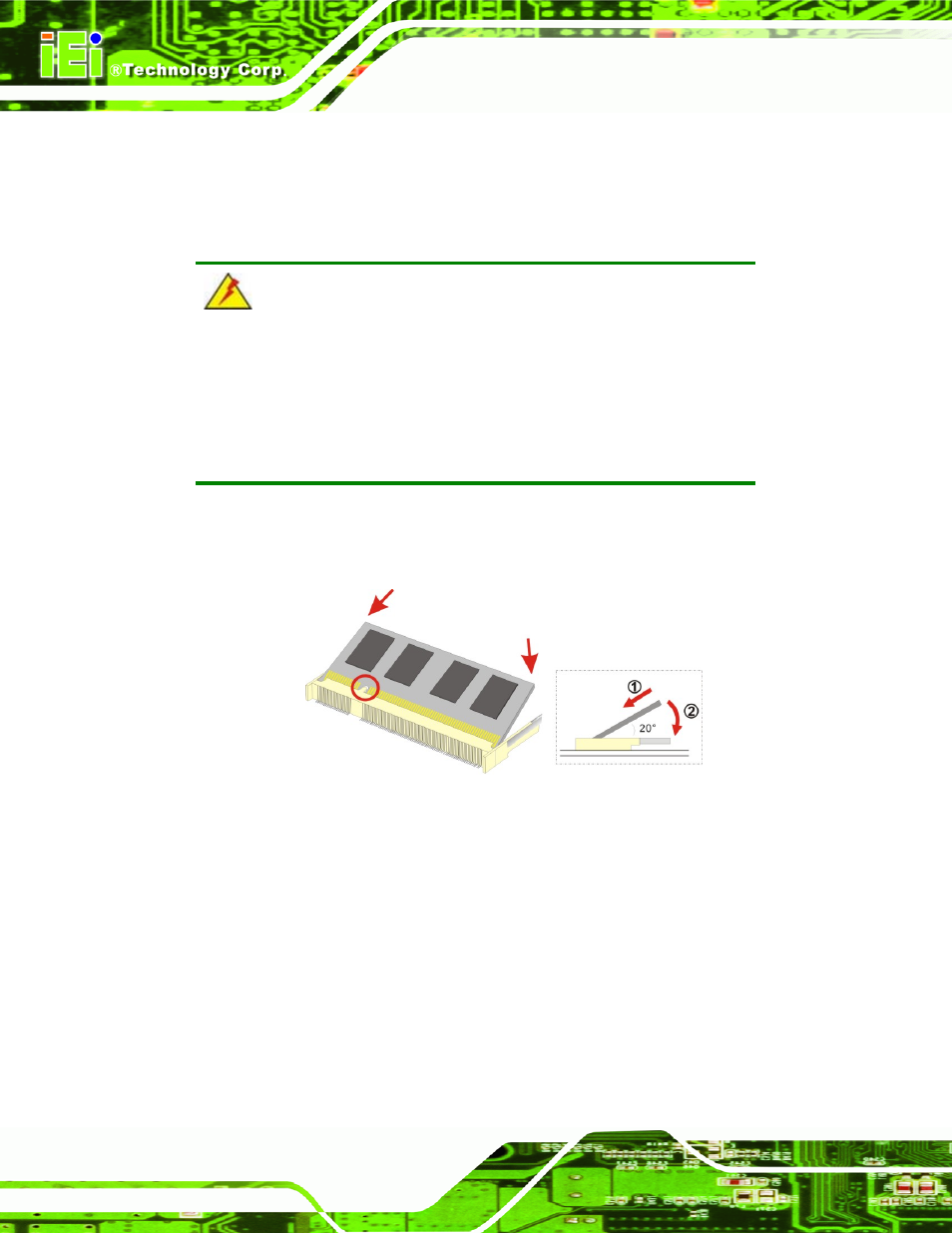

Figure 5-1: SO-DIMM Installation
Step 1: Locate the SO-DIMM socket. Place the NANO-LX on an anti-static pad with the
solder side facing up.
Step 2: Align the SO-DIMM with the socket. The SO-DIMM must be oriented in such a
way that the notch in the middle of the SO-DIMM must be aligned with the
plastic bridge in the socket.
Step 3: Insert the SO-DIMM. Push the SO-DIMM chip into the socket at an angle. (See
Figure 5-1)
