NANO-LX EPIC SBC

Chapter 3.

Step 2:

Align the PS/2 connector. Align the PS/2 connector on the keyboard/mouse Y

cable with the PS/2 connector on the external peripheral interface.

Step 3:

Insert the PS/2 connector

Once the connector is properly aligned, insert the

PS/2 connector from the keyboard/mouse Y cable into the PS/2 connector on

the NANO-LX. See Figure 5-14.

Step 4:

Connect the keyboard and mouse. A keyboard and mouse can each be

connected to one of the PS/2 connectors. The keyboard PS/2 connector and

mouse PS/2 connector are both marked. Please make sure the keyboard and

mouse are connected to the correct PS/2 connector.

Step 0:

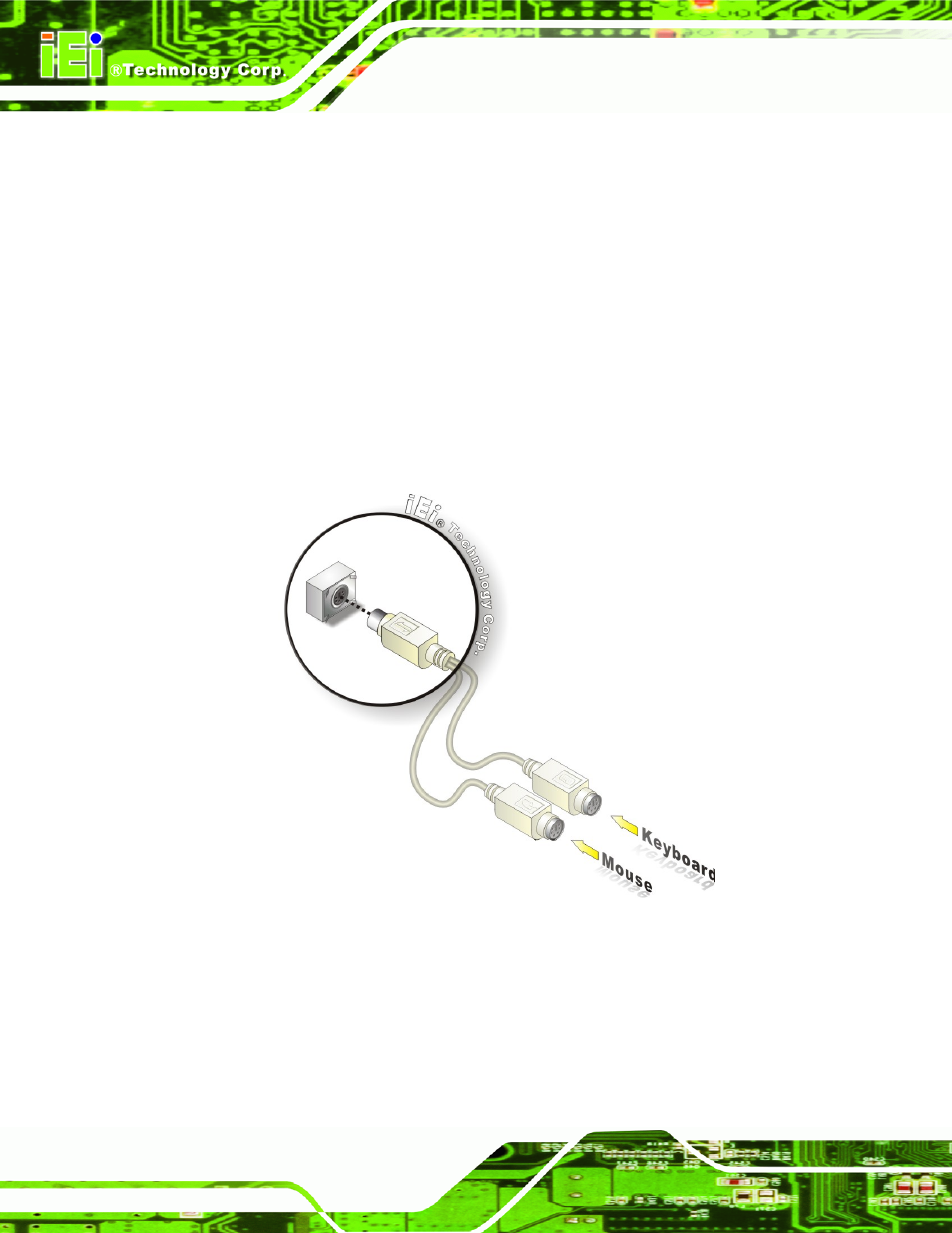

Figure 5-14: PS/2 Connector

5.9.3 Serial Device Connection

The NANO-LX has a single female DB-9 connector on the external peripheral interface

panel for a serial device. Follow the steps below to connect a serial device to the

NANO-LX.
