NANO-LX EPIC SBC

1 x VGA connector

1 x RJ-45 Ethernet connector

2 x USB combo connectors

1 x PS/2 connector

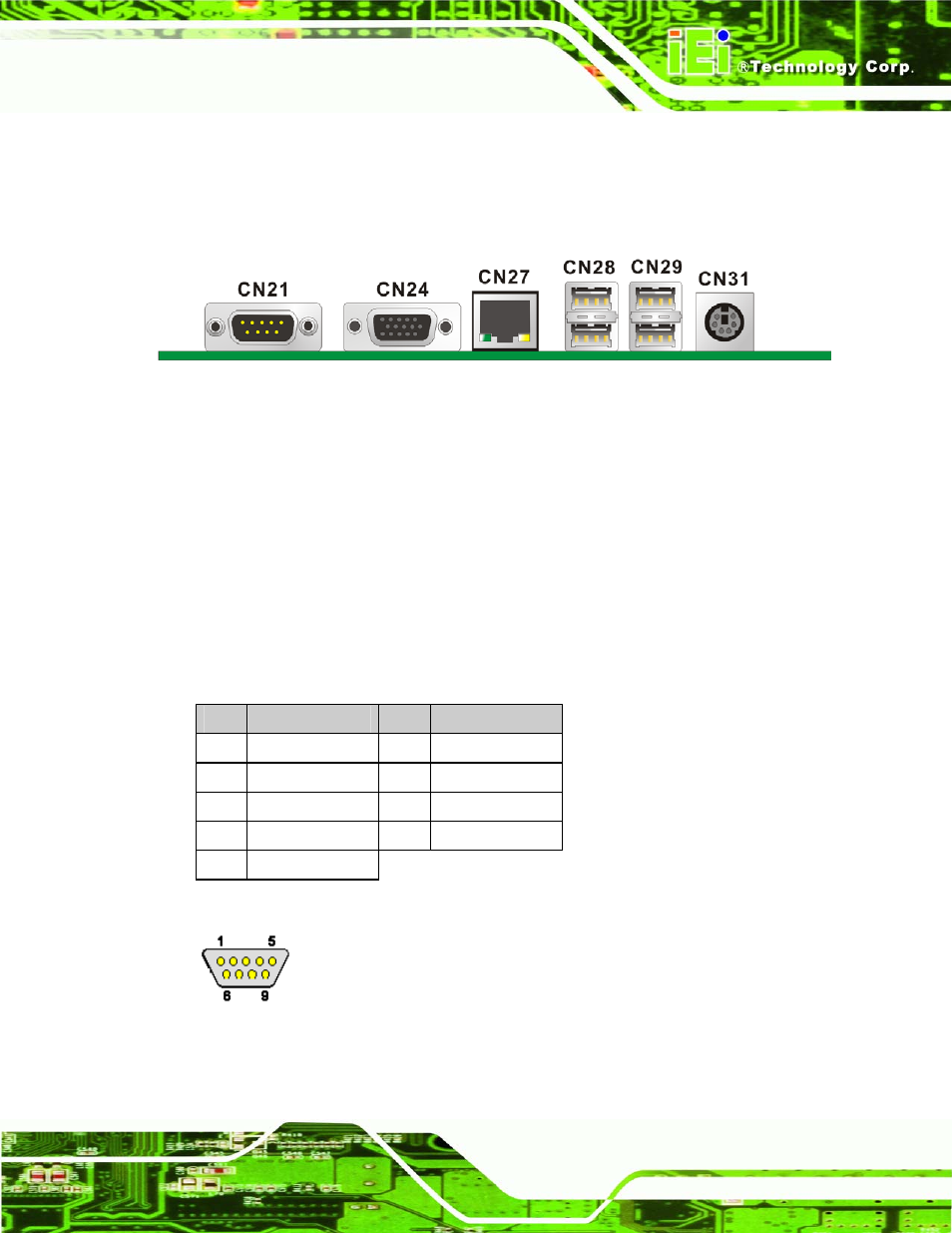

Figure 4-26: NANO-LX CPU Board Rear Panel

4.3.1 RS232 Serial Connector

CN Label:

CN21

CN Type:

RS-232

CN Pinouts:

See Table 4-29 and Figure 4-27

CN Location:

See Figure 4-26

The RS-232 Serial connector provides serial connection in the RS-232 mode.

PIN

DESCRIPTION

PIN

DESCRIPTION

1 DCD

6 DSR

2 RXD

7 RTS

3 TXD

8 CTS

4 DTR

9 RI/Vout

5 GND

Table 4-29: CN21 Pinouts

Figure 4-27: CN21 Pinout Locations

Page 81
