NANO-LX EPIC SBC

CAUTION!

SATA hard drives may come with both a 4P power connector and a SATA power

interface. Attach either the 4P connector or the SATA power cable to the SATA

hard drives.

DO NOT

attach both the power connectors to your SATA hard drives

at the same time! Doing so will cause damage.

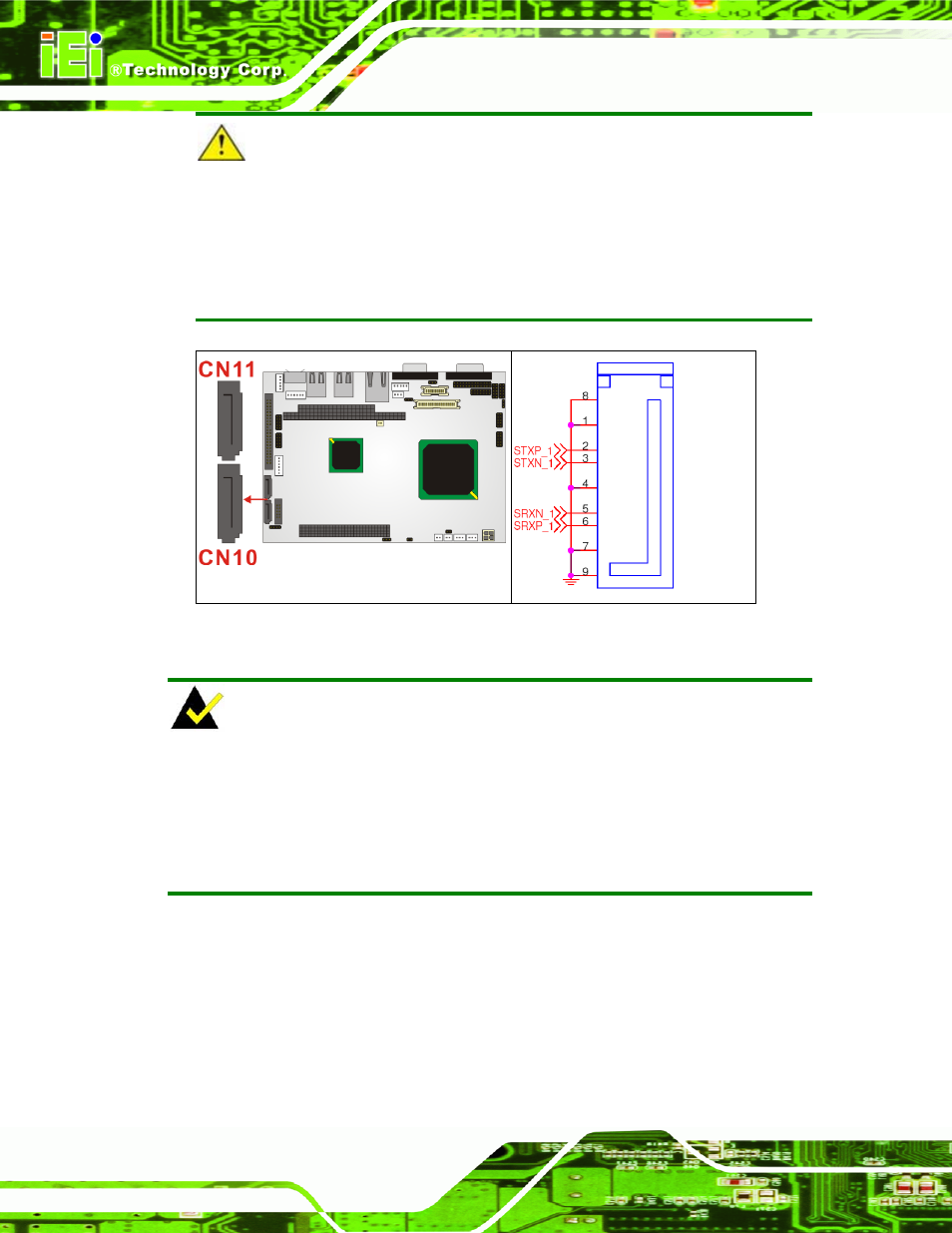

Figure 4-23: CN10, CN11 Connector Locations

NOTE:

1. SATA is supported by:

• Windows 2000 SP4
• Windows XP SP1
• Windows 2003, or later versions.

2. Older OSes, such as Windows 98SE or ME, do not support the SATA interface.

4.2.22 Serial Communications Connector

CN Label:

CN14, CN15, CN16, CN17, CN19

CN Type:

14-pin headers (2x5 pins)

CN Pinouts:

See Table 3-27 and Table 4-27

CN Location:

Page 76
