NANO-LX EPIC SBC
PIN DESCRIPTION
1
BL_ADJ
(default:GND)
2 GND
3 VCC12
4 GND
5 VDD_EN
Table 4-14: CN26 Connector Pinouts

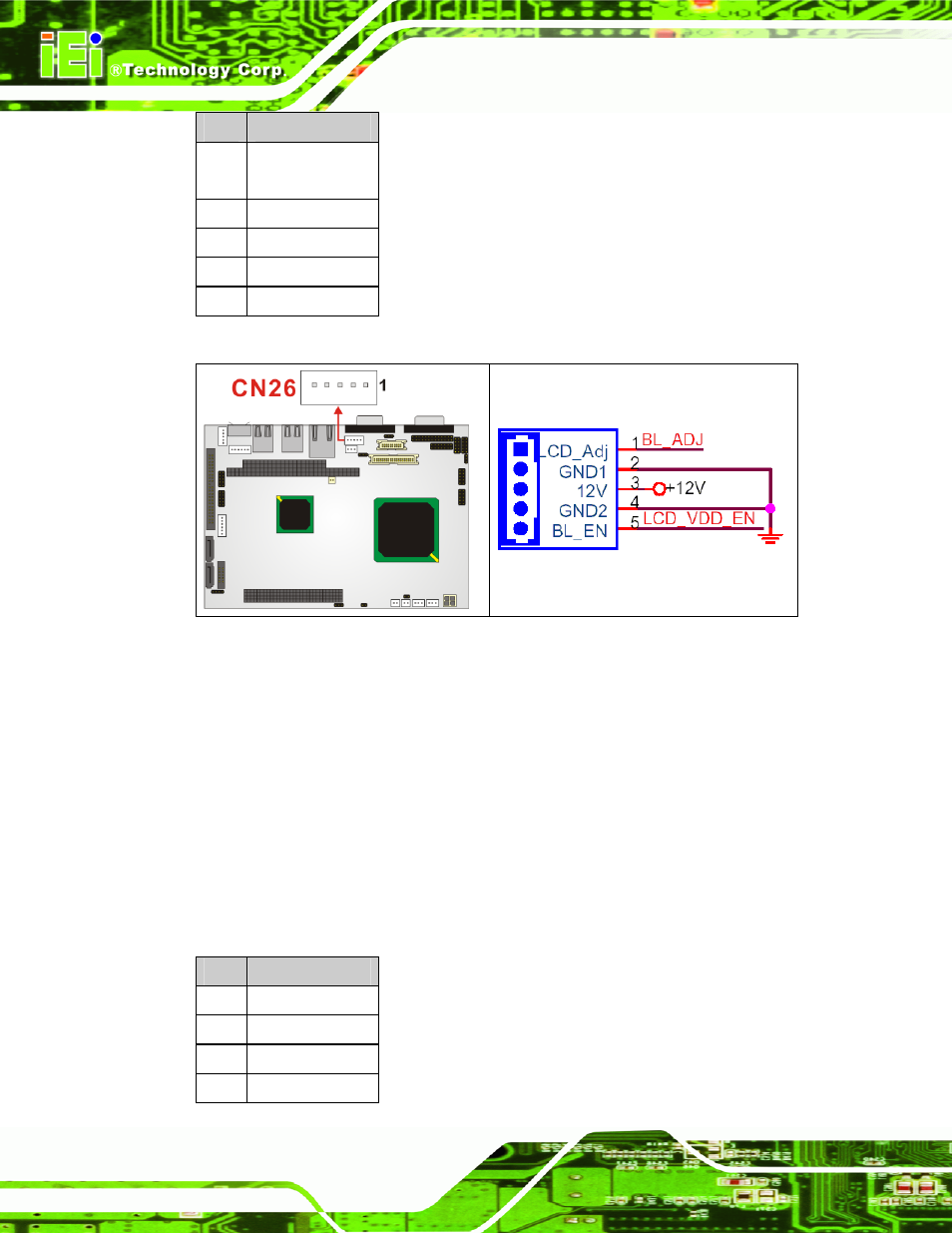

Figure 4-13: CN26 Connector Location
4.2.12 IrDA Connector
CN Label: CN32
CN Type: 5-pin header
CN Pinouts: See Table 4-15
CN Location: See Figure 4-14
The integrated IrDA connector supports both the SIR and ASKIR infrared protocols.
PIN DESCRIPTION
1 VCC5
2 NC
3 IR-RX
4 GND
