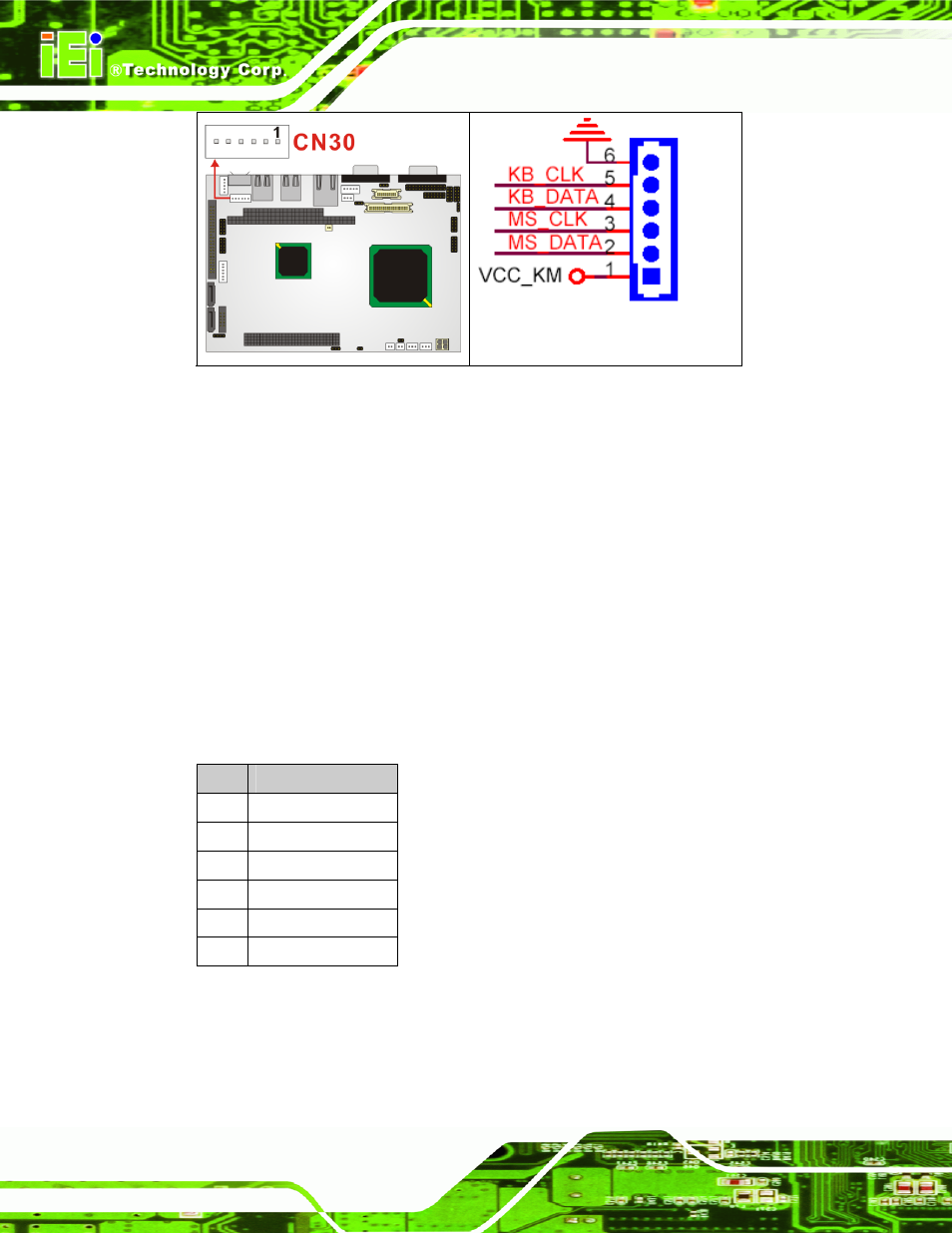

Figure 4-15: CN30 Connector Location
4.2.14 LED Power Connector
CN Label: CN12
CN Type: 6-pin header
CN Pinouts: See Table 4-17
CN Location: See Figure 4-16
The LED power connector provides the connectivity to the power and hard drive activity
LEDs on the chassis front panel. An adapter cable is required.
PIN DESCRIPTION
1 +5V
2 GND
3 POWER LED+
4 POWER LED-
5 HDD LED+
6 HDD LED-
Table 4-17: CN12 Connector Pinouts
