NANO-LX EPIC SBC
29 +12V INTA- INTB- INTC-
30 -12v TBD2 TBD GND/3.3V
Table 4-21: CN7 (PCI-104) Connector Pinouts

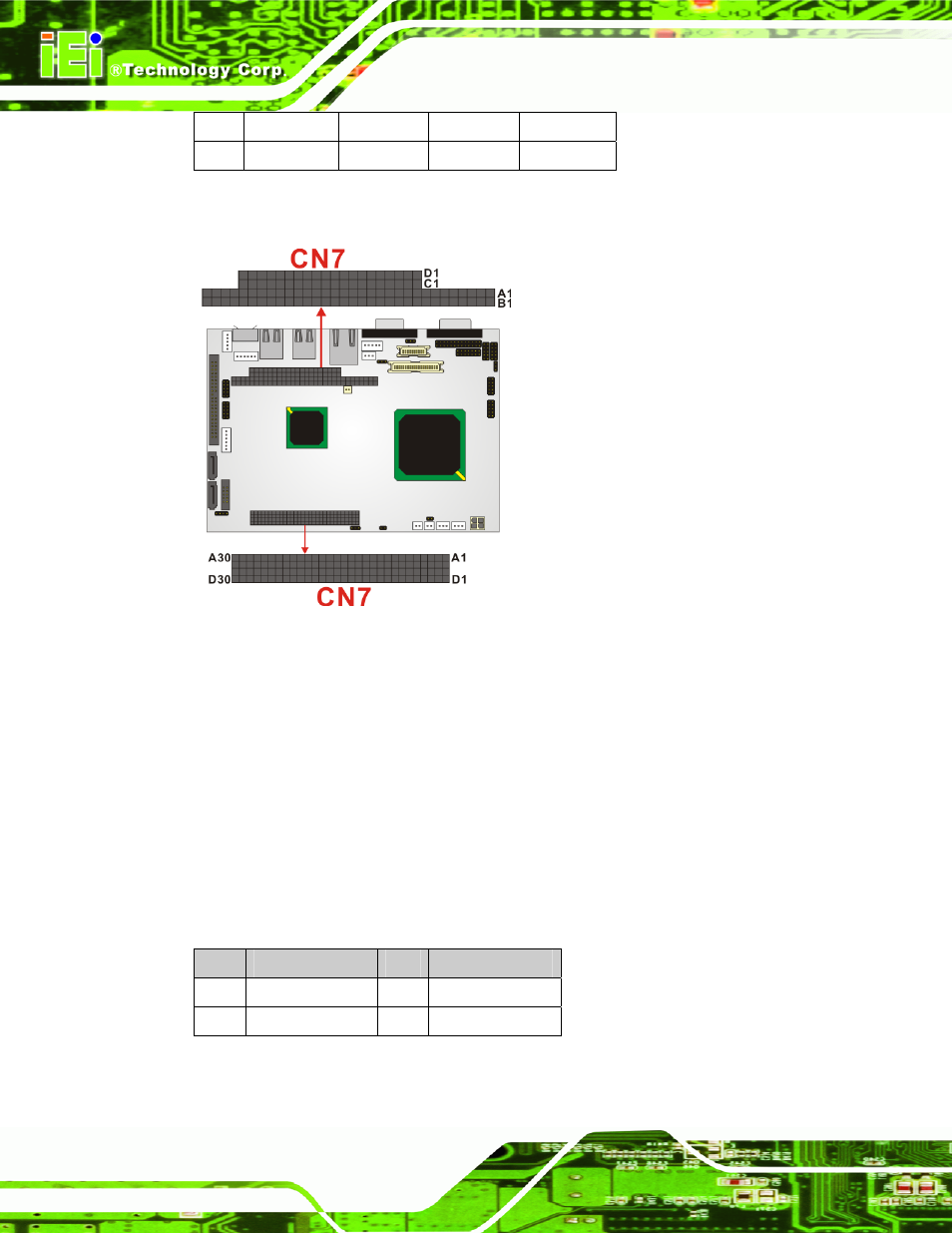

Figure 4-19: CN7 Connector Location
4.2.18 Power Connector
CN Label: CN2
CN Type: 4-pin header (2x2 pins)
CN Pinouts: See Table 4-22
CN Location: See Figure 4-20
This connector supports the ATX-12V power supply.
PIN DESCRIPTION PIN DESCRIPTION
1 GND 2 GND
3 +12V 4 +12V
Table 4-22: CN2 Connector Pinouts
