NANO-LX EPIC SBC

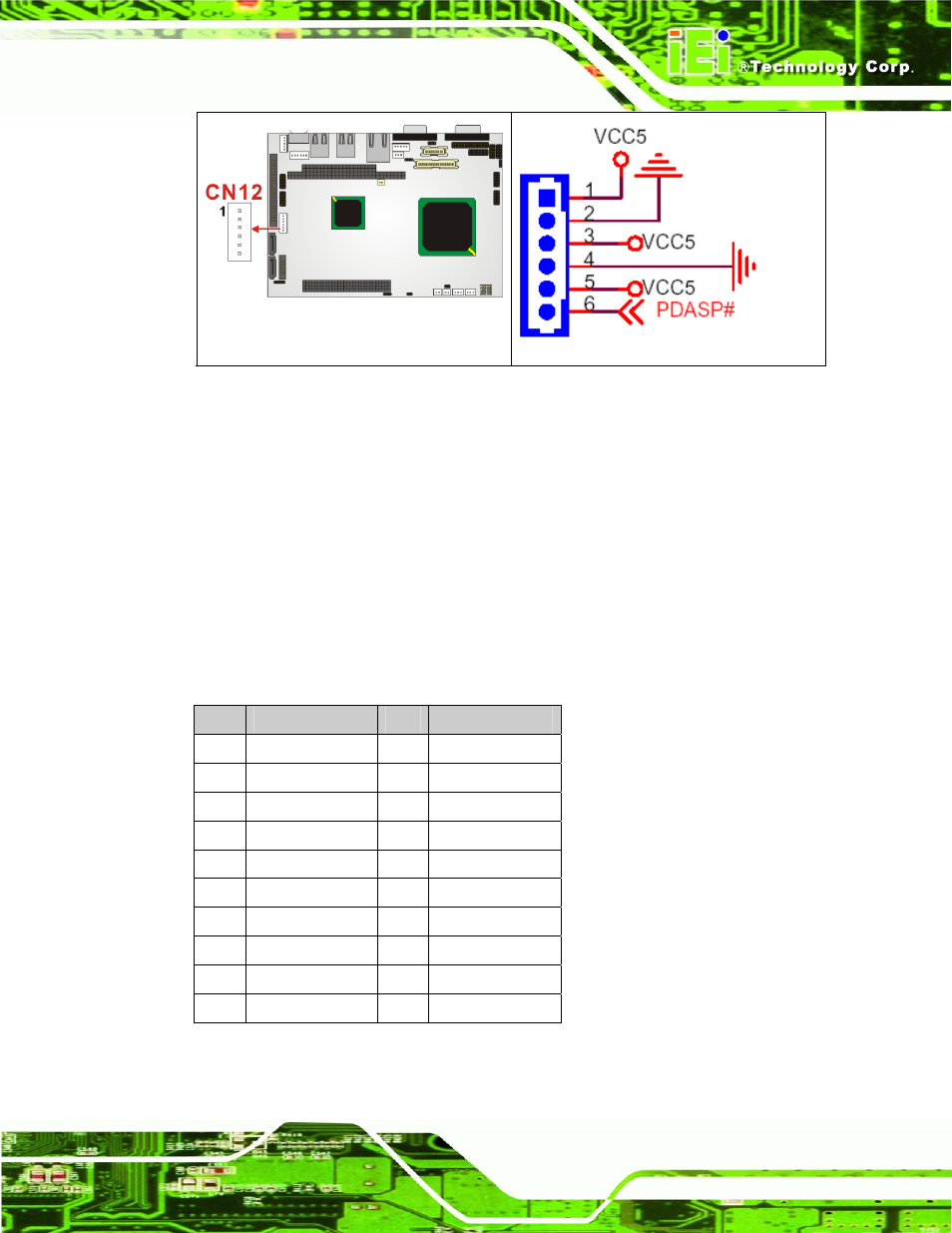

Figure 4-16: CN12 Connector Location
4.2.15 LVDS LCD Panel Connector
CN Label: CN23
CN Type: 20-pin header (2x10)
CN Pinouts: See Table 4-18
CN Location: See Figure 4-17
The LVDS LCD connector connects to a one or two channel (18-bit or 24-bit) LVDS panel.
PIN DESCRIPTION PIN DESCRIPTION
2 GND 1 GND
4 LVDS_Y0- 3 LVDS_Y0+
6 LVDS_Y1- 5 LVDS_Y1+
8 LVDS_Y2- 7 LVDS_Y2+
10 LVDS_CLK- 9 LVDS_CLK+
12 NC 11 NC
14 GND 13 GND
16 I_SCL 15 I_SDA
18 LCD_VCC 17 LCD_VCC
20 LCD_VCC 19 LCD_VCC
Table 4-18: CN23 Connector Pinouts
