4.1 Peripheral Interface Connectors
The locations of the peripheral interface connectors are shown in Section 4.1.1. A
complete list of all the peripheral interface connectors can be seen in Section 4.1.2.
4.1.1 NANO-LX SBC Layout
Figure 4-1 shows the onboard peripheral connectors, backplane peripheral connectors
and onboard jumpers on the front side of the card.

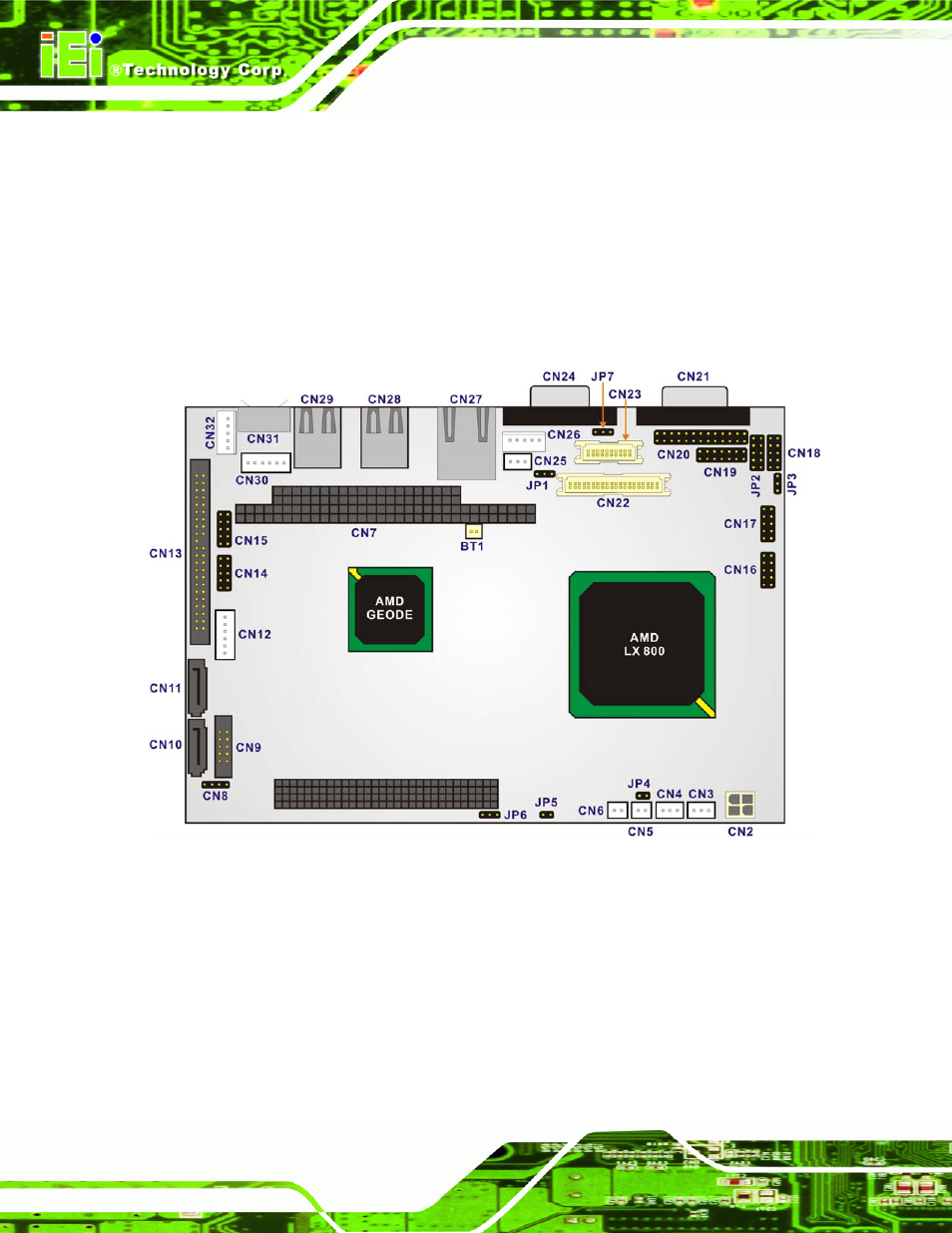

Figure 4-1: Connector and Jumper Locations (Front Side)
