NANO-LX EPIC SBC
The Ethernet connector provides a 10/100BaseT Ethernet connection to a local or internet
network. Refer to the table below for the Ethernet port LED indication.
PIN DESCRIPTION PIN DESCRIPTION
1 TX- 5 N/C
2 N/C 6 RX-
3 TX- 7 N/C
4 RX+ 8 N/C
Table 4-31: CN27 Connector Pinouts

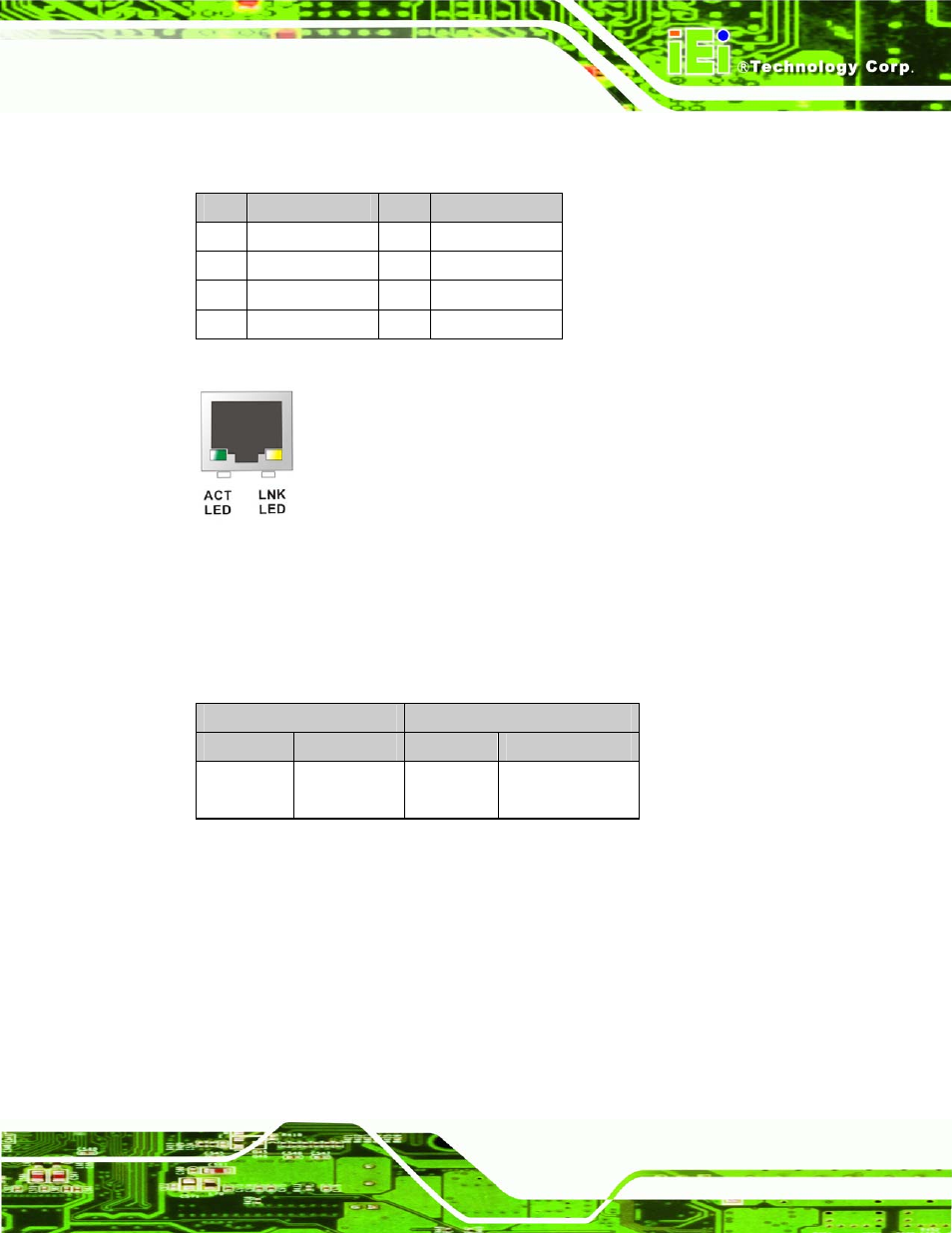

Figure 4-29: CN27 Connector
The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked (Table
4-32).
SPEED LED LINK LED
Status Description Status Description
GREEN ON: 100MB
OFF: 10MB
YELLOW ON: Linked
Flashing: Activity
Table 4-32: CN27 Connector LEDs
4.3.4 USB Combo Connectors
CN Label: CN28, CN29
CN Type: USB port
CN Pinouts: See Table 4-33
CN Location: See Figure 4-26
