NANO-LX EPIC SBC

PIN

DESCRIPTION

5 IR-TX

Table 4-15: CN32 Connector Pinouts

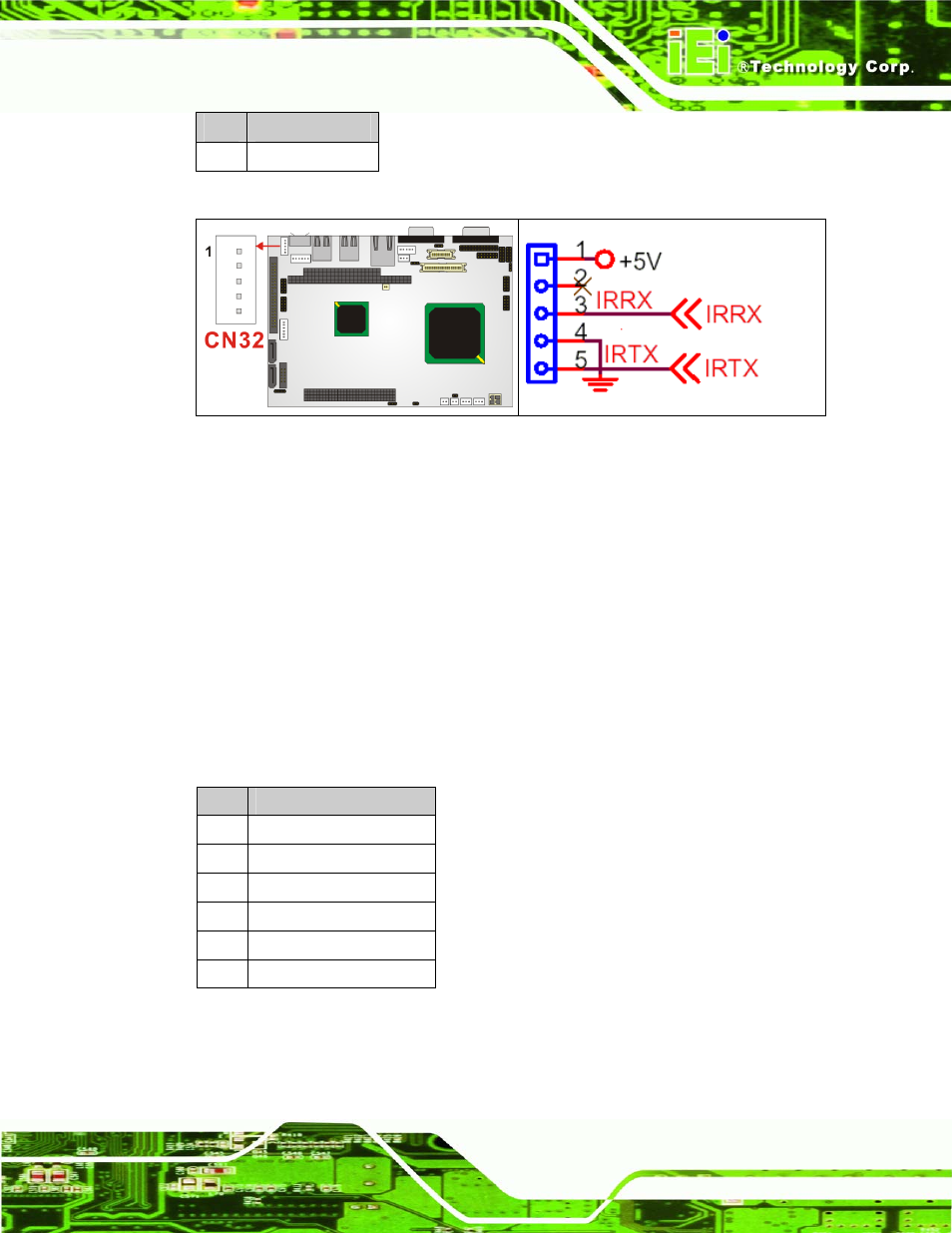

Figure 4-14: CN32 Connector Location

4.2.13 Keyboard/Mouse Connector

CN Label:

CN30

CN Type:

6-pin header

CN Pinouts:

See Table 4-16

CN Location:

See Figure 4-15

For alternative applications, an on board keyboard/mouse pin header connector is also

available.

PIN

DESCRIPTION

1 VCC

2 MS_DATA

3 MS_CLK

4 KB_DATA

5 KB_CLK

6 GND

Table 4-16: CN30 Connector Pinouts

Page 65
