NANO-LX EPIC SBC
4.2.7 Digital Input Output Connector
CN Label: CN18
CN Type: 10-pin header (2x5 pins)
CN Pinouts: See Table 4-10
CN Location: See Figure 4-9
The Digital Input Output connector is a user-programmable general-purpose I/O controller
managed through a Winbond W83697HF LPC SI/O chip.
PIN DESCRIPTION PIN DESCRIPTION
1 GND 2 VCC5
3 OUT0 4 OUT1
5 OUT2 6 OUT3
7 IN0 8 IN1
9 IN2 10 IN3
Table 4-10: CN18 Connector Pinouts

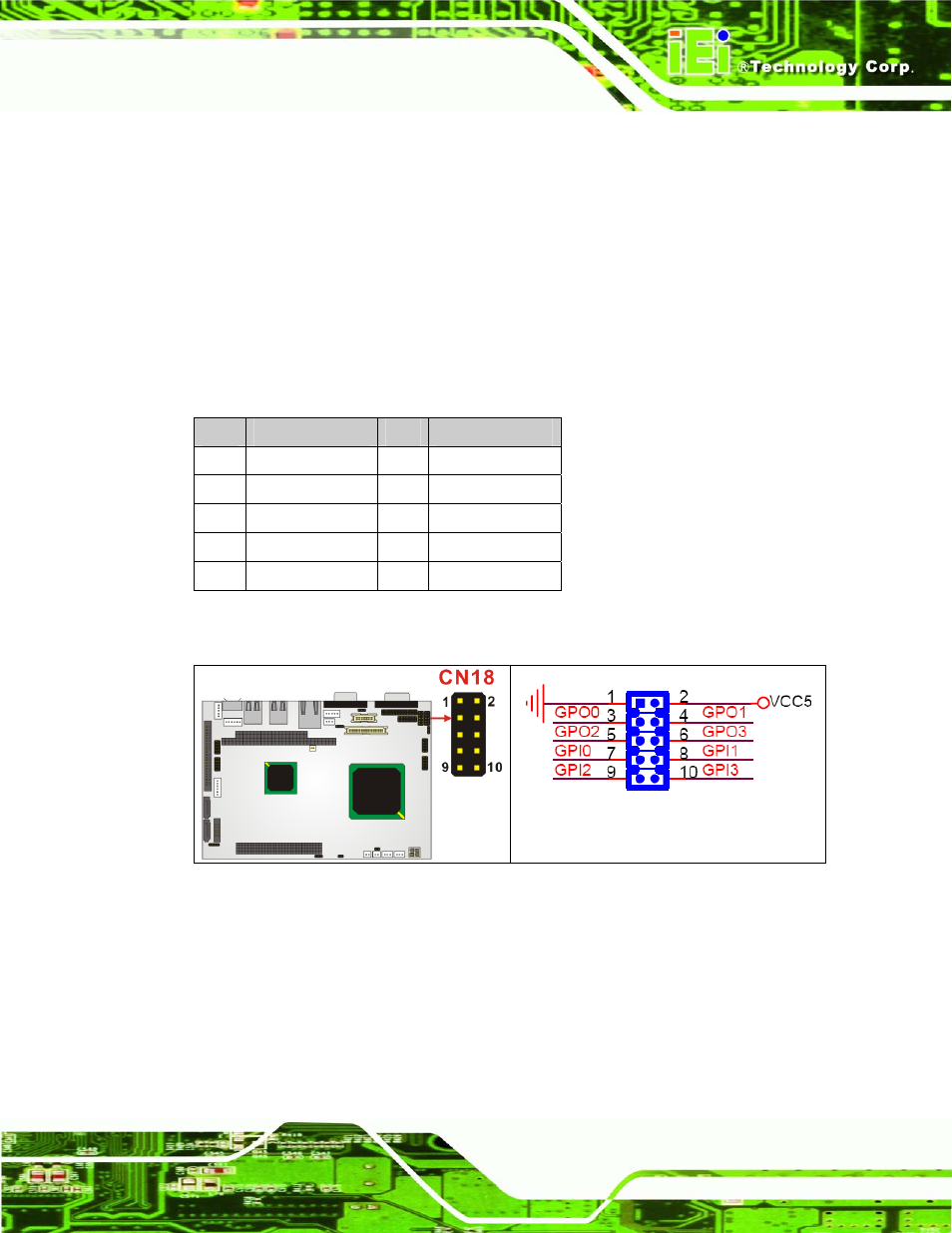

Figure 4-9: CN18 Connector Location
4.2.8 Fan Connector
CN Label: CN4
CN Type: 3-pin header
CN Pinouts: See Table 4-11
