NANO-LX EPIC SBC

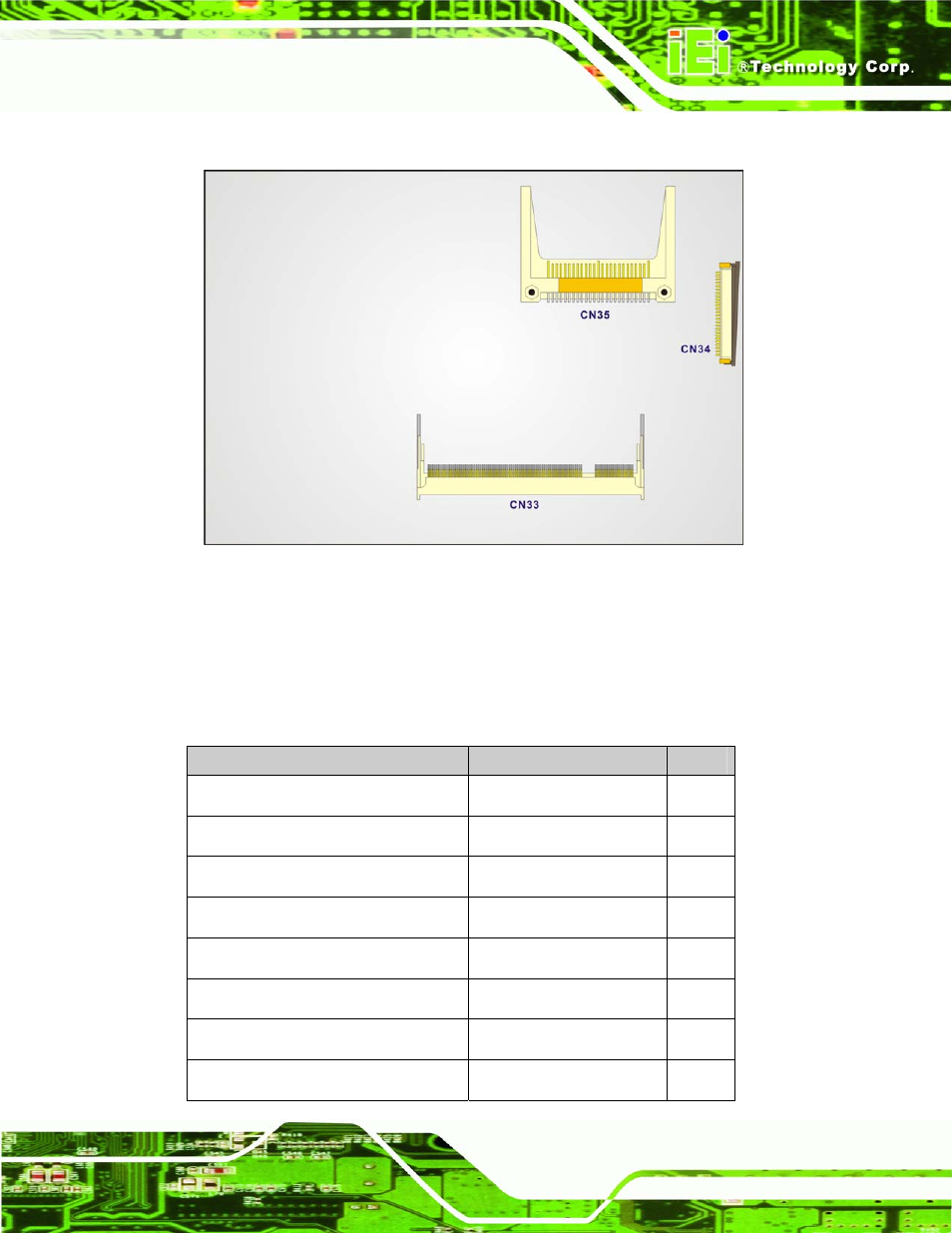

Figure 4-2 shows the onboard peripheral connectors on the solder side of the board.
Figure 4-2: Connector and Jumper Locations (Solder Side)
4.1.2 Peripheral Interface Connectors
Table 4-1 shows a list of the peripheral interface connectors on the NANO-LX SBC.
Detailed descriptions of these connectors can be found in Section 4.2.
Connector Type Label
200-pin DDR SO-DIMM socket 200-pin socket CN33
ATX connector 3-pin header CN3
ATX Power Button connector 2-pin header CN5
Audio CD-In connector 4-pin header CN8
Audio connector 10-pin header CN9
Battery Connector 2-pin header BT1
Compact Flash Type II connector 50-pin header CN35
Digital Input Output connector 10-pin header CN18
Page 49
