4 cpu support, 1 amd® geode™ lx800 500mhz overview, 4 cpu s – IEI Integration NANO-LX v1.10 User Manual
Page 30: Upport, 1 amd, Geode™ lx800 500mhz overview, Figure 2-3: data flow block diagram
NANO-LX EPIC SBC

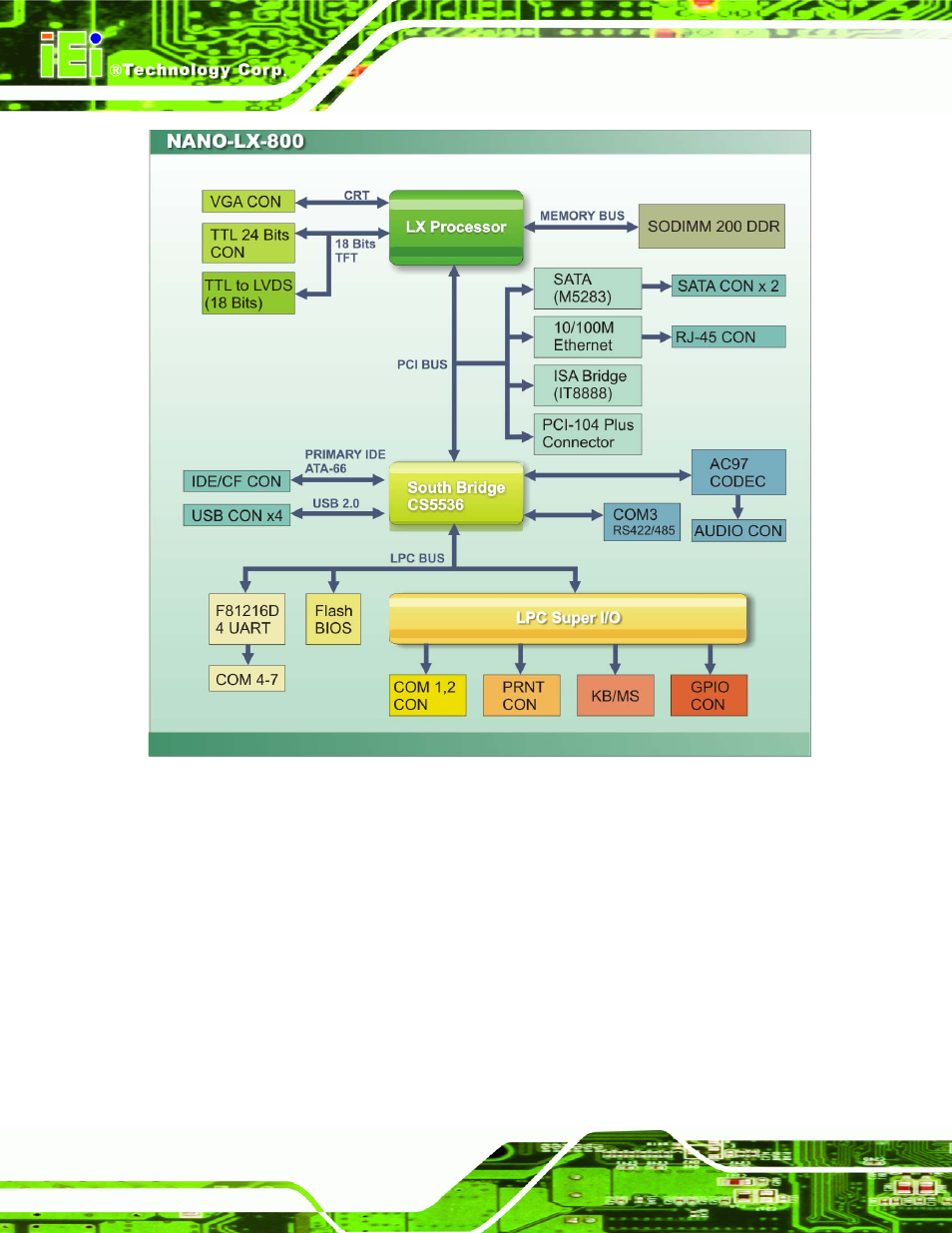

Figure 2-3: Data Flow Block Diagram
2.4 CPU Support
The NANO-LX series motherboards all come with a preinstalled AMD® Geode™ LX800
500MHz CPU.
2.4.1 AMD
®
Geode™ LX800 500MHz Overview
The specifications for the 500MHz AMD® Geode™ LX800 are listed below
x86/x87-compatible core
Processor frequency up to 500 MHZ
Page 30
