Step 2:

Properly align the cooling kit. Make sure the four spring screw fasteners can

pass through the pre-drilled holes on the PCB.

Step 3:

Mount the cooling kit. Gently place the cooling kit on top of the CPU. Make

sure the four threaded screws on the corners of the cooling kit properly pass

through the predrilled holes on the bottom of the PCB.

Step 4:

Secure the cooling kit. From the solder side of the PCB, align the support

bracket to the screw threads on heat sink that were inserted through the PCB

holes. (See

Figure 4-6)

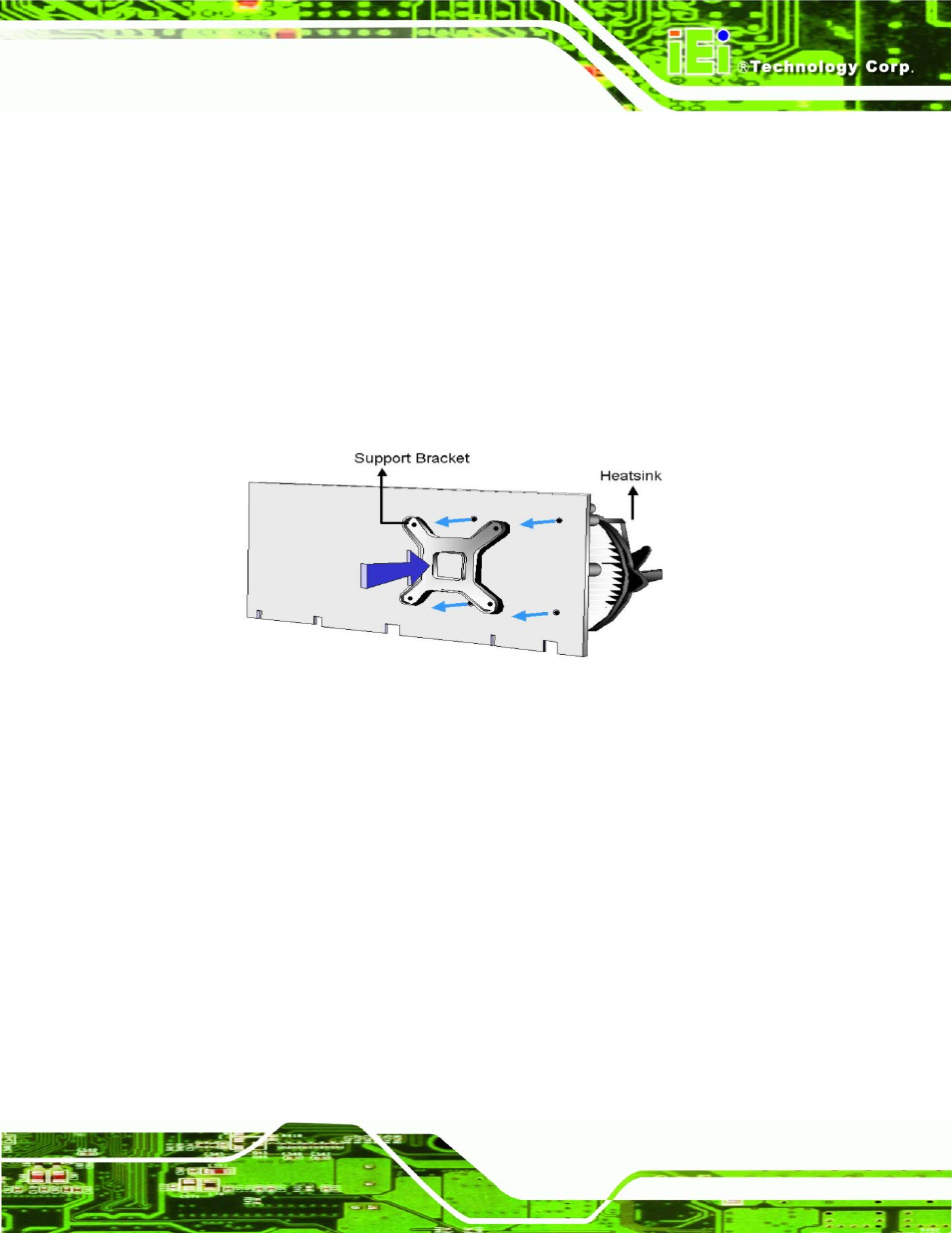

Figure 4-6: Securing the Heat sink to the PCB Board

Step 5:

Tighten the screws. Use a screwdriver to tighten the four screws. Tighten each

nut a few turns at a time and do not over-tighten the screws.

Step 6:

Connect the fan cable. Connect the cooling kit fan cable to the fan connector

on the IMBA-Q454-R10. Carefully route the cable and avoid heat generating

chips and fan blades.
