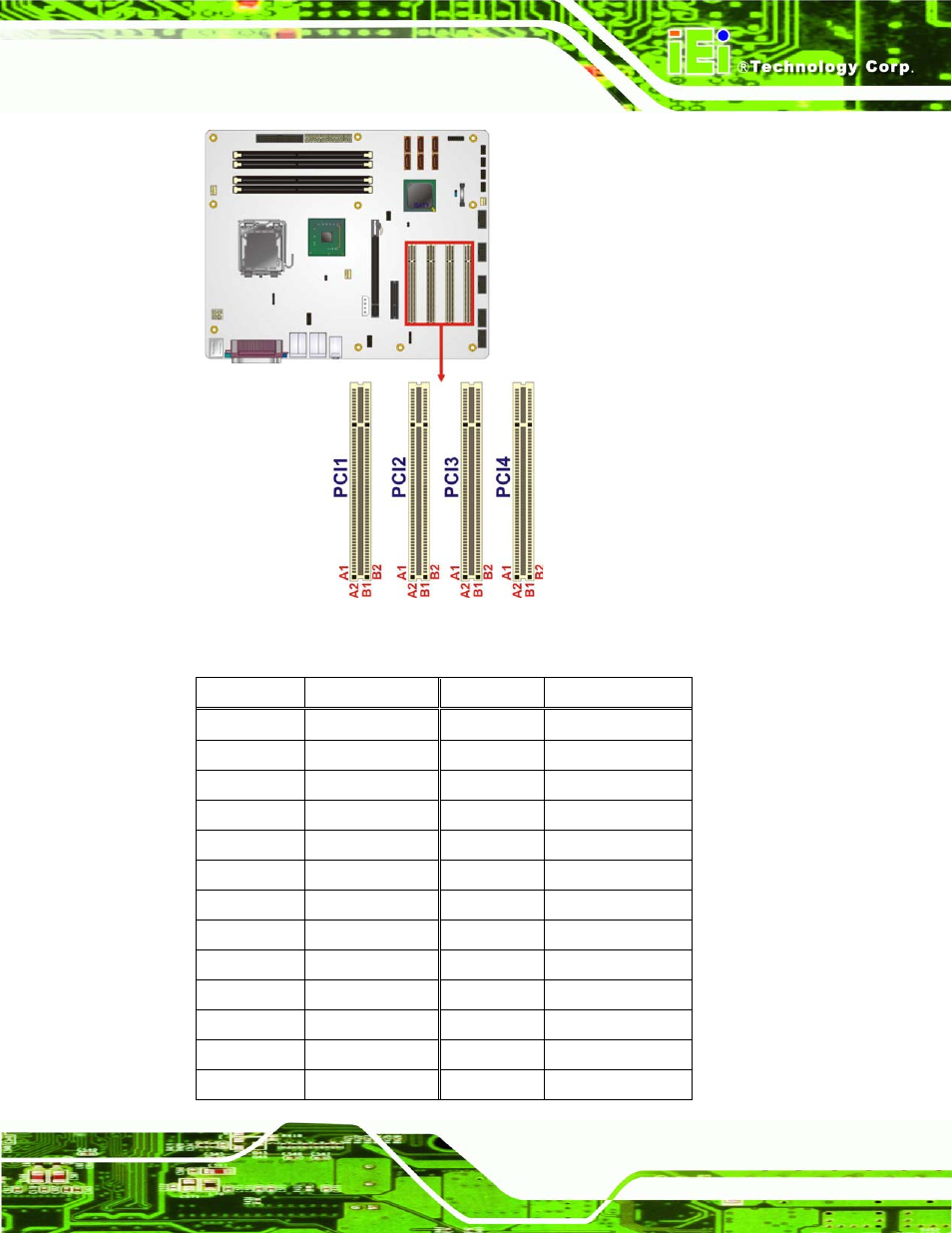

Figure 3-13: PCI Slot Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
A1 TRST B1 -12 V
A2 +12 V B2 TCK
A3 TMS B3 GND
A4 TDI B4 TDO
A5 +5 V B5 +5 V
A6 INTA B6 +5 V
A7 INTC B7 INTB
A8 +5 V B8 INTD
A9 RESERVED3 B9 PRSNT1
A10 +5 V B10 RESERVED1
A11 RESERVED4 B11 PRSNT2
A12 GND B12 GND
A13 GND B13 GND
