4 external peripheral interface panel dimensions, Figure 1-2: imba-q454-r10 dimensions (mm) – IEI Integration IMBA-Q454 v1.01 User Manual
Page 19
IMBA-Q454-R10 User Manual
Page 19

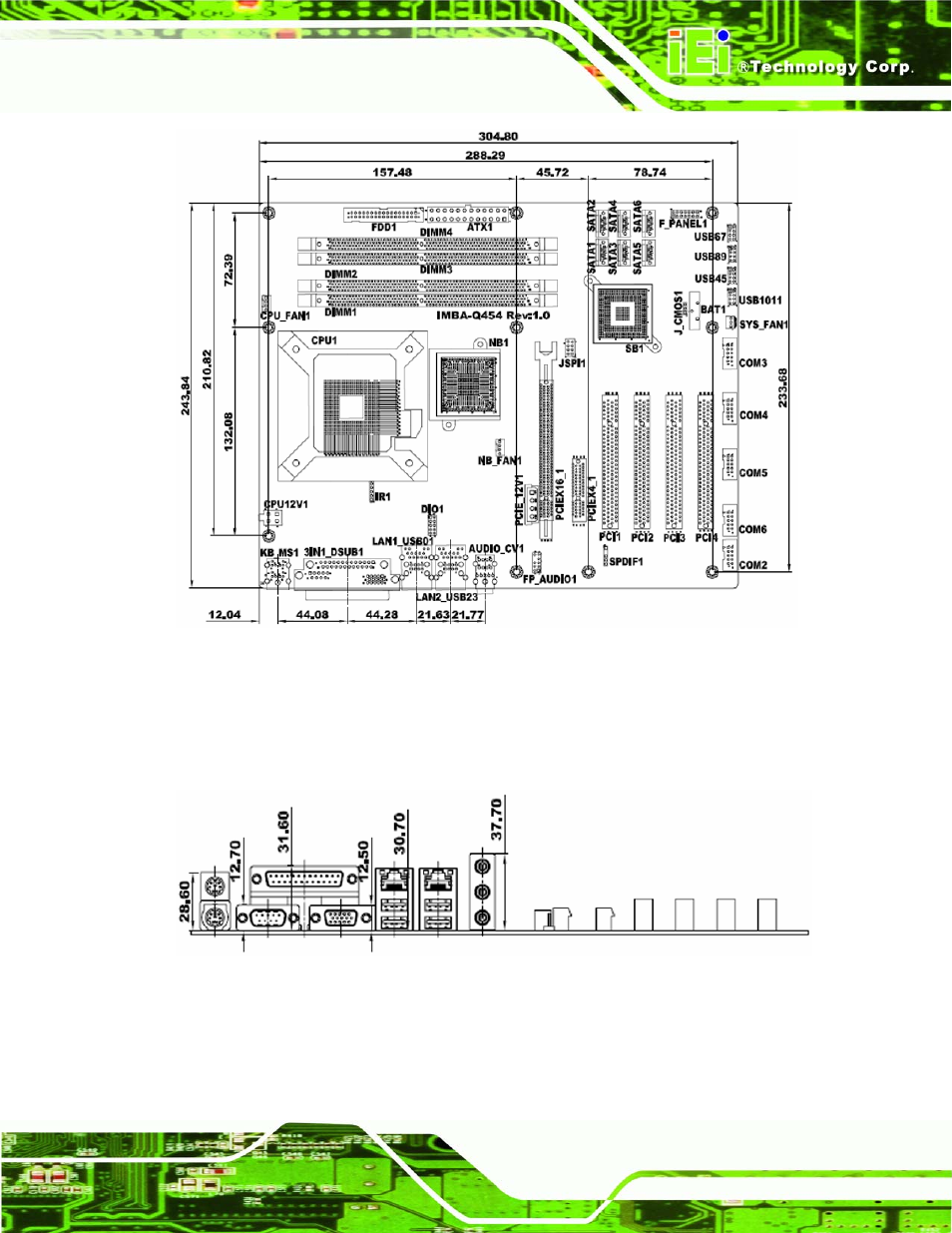

Figure 1-2: IMBA-Q454-R10 Dimensions (mm)
1.1.4 External Peripheral Interface Panel Dimensions
External peripheral interface connector panel dimensions are shown in Figure 1-3.
Figure 1-3: External Interface Panel Dimensions (mm)
