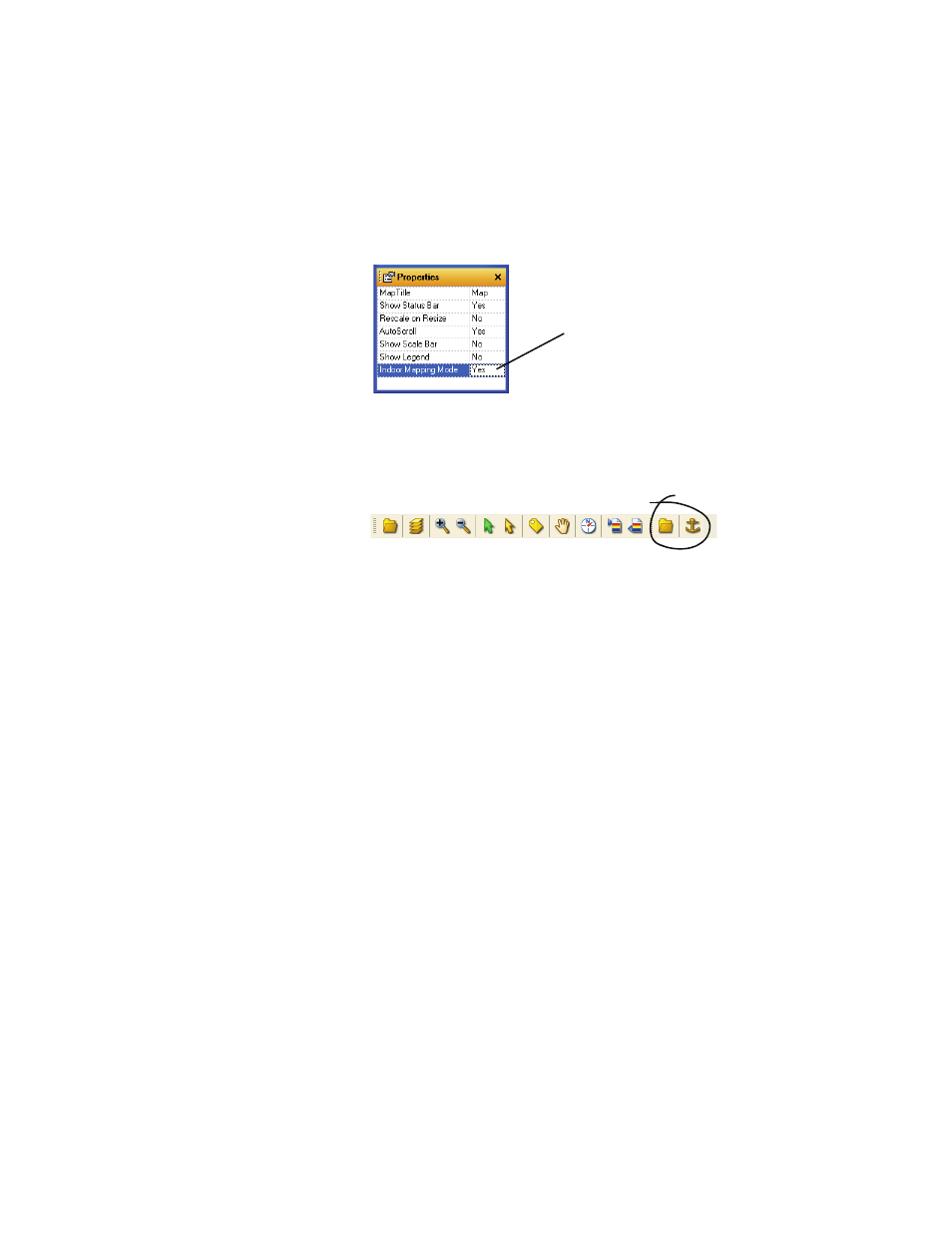

Figure 75 Select indoor mapping mode option
3 This adds two icons to the map view. Select the new load
map icon. Refer to Figure 76 .
Figure 76 Added indoor icons
4 In the map load dialog box, enter:
a Locate and select a indoor floor plan (BMP or JPG).
b Enter the floor plan outer dimensions (Meters or Feet).
c Select a map corner as a reference point from the
drop- down list dialog.
d Enter the corresponding map reference coordinates for
the selected reference point. Refer to Figure 77 on
page 100.
Select Indoor Mapping Mode
Two icons added to menu
