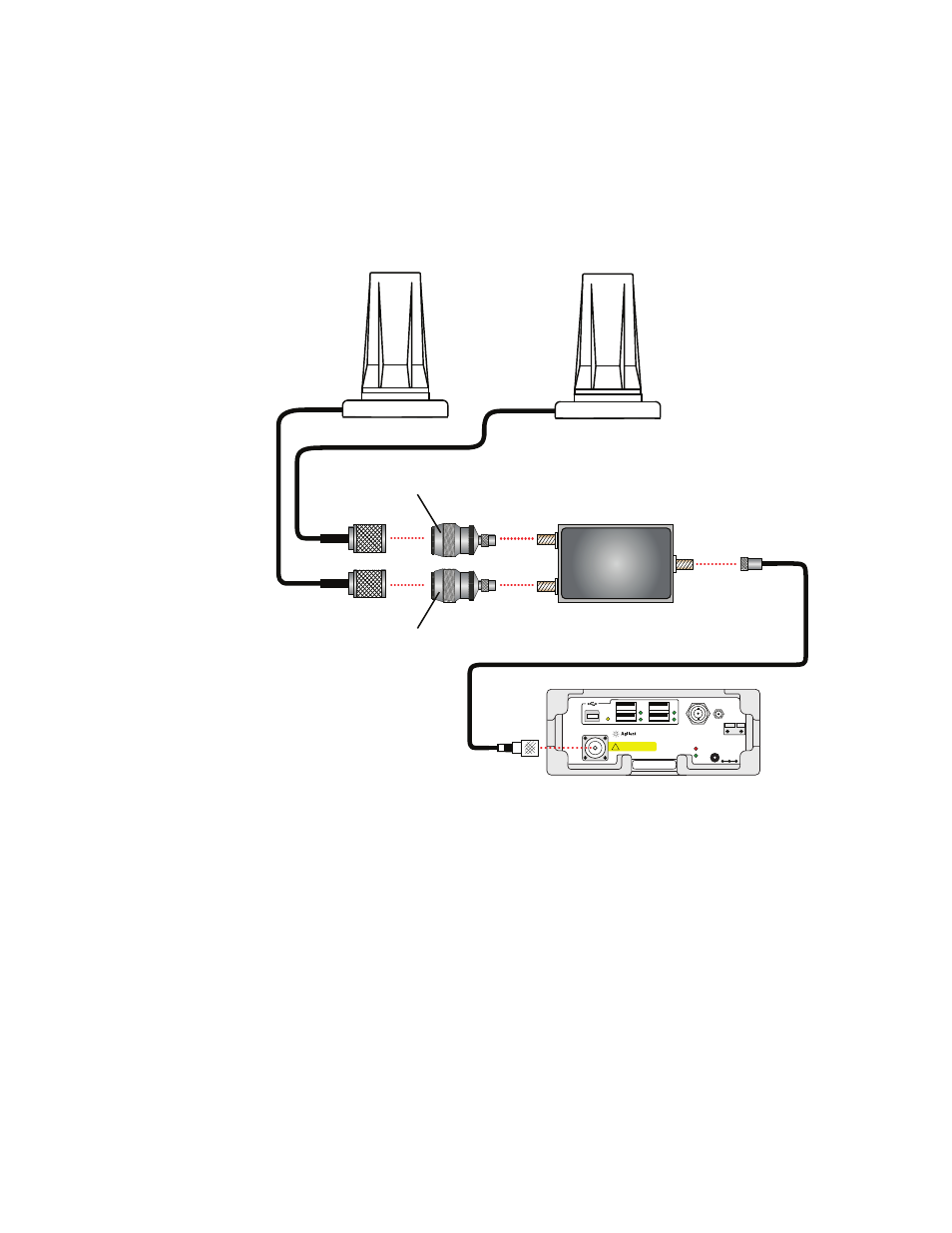

Connecting a single E645xC receiver
The Agilent digital receiver can be connected directly to the
serial port of your laptop. The direct serial port connection
provides RF measurement information and GPS coordinate
results.
RF IN
W1314A-120
Quad Band Receiver
9-34VDC
18W TYP
48W MAX
GPS
ANT.
GPS
1PPS
TEMP
STAT
450-496, 921-962 MHz
1800-1885, 2100-2180 MHz
+10 dBm (10 mW) MAX
20 VDC MAX
!
W1314A Receiver
W1314-80027 Cable (SMA Male to N-Type, 2ft/0.7m)
W1314-80025 Combiner
2-way 350 MHz to 600 MHz
W1314-80026 Connector Adapter
SMA Male to N-Type Female
W1314-80026 Connector Adapter
SMA Male to N-Type Female
W1314-80024 Antenna
(Magnetic Mount)
2.3 GHz to 6 GHz
W1314-80023 Antenna
(Magnetic Mount)
700 MHz to 2700 MHz
RF In Port
