Set Up Your System
3
Agilent E6474A User’s Guide
35
If your PC does not have an RS- 232 serial port you can use
a serial to USB convertor. Agilent recommends the Agilent
E5805A (USB/4- port RS- 232 Interface Module). When using
other USB interface models, ensure that they support HS
serial communication.
on page 35 for typical serial port
connection (this diagram does not include a GPS antenna).

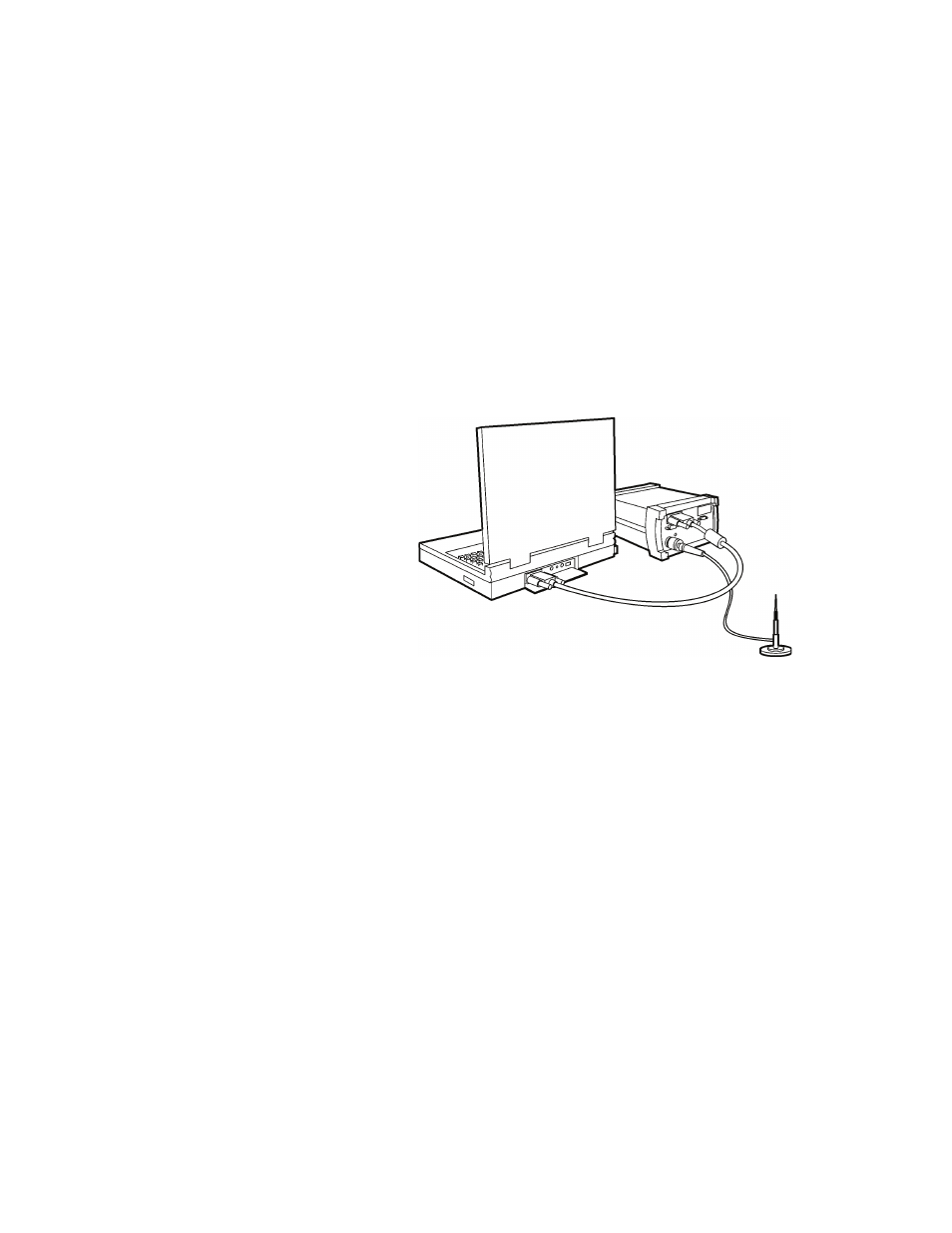

Figure 15
Serial port connection for Agilent digital receiver
Connecting multiple E645xC receivers
When you configure multiple receivers, only one receiver
(the master receiver) is physically connected to the
computer and is able to supply input from the GPS. You
attach an external GPS system (unless it has internal GPS)
to the master receiver only. The other receiver(s) receive
their GPS signal from the master receiver. If other receivers
contain internal GPS systems, their GPS is ignored.
If your PC does not have an RS- 232 serial port you can use
a serial to USB convertor. Agilent recommends the Agilent
E5805A (USB/4- port RS- 232 Interface Module). When using
other USB interface models, ensure that they support HS
serial communication.
Serial port
RF Antenna
