Use Your System 4
Agilent E6474A User’s Guide 93
The cellsite importer is a utility for taking a source cellsite
data file and mapping this source data to a master list of
cellsite fields within the E6474A application. This is done by
creating a cross- reference between the source data items
and the data fields in the master list. The cellsite source file
is an ASCII TAB delimited file containing raw information
about the cellsites. It contains information about latitude,
longitude, cell name and sector widths and more. Once a
cross- reference file is created, it can be used to transform
many source data files into the required XML output format.
How to use the cellsite importer
Follow these steps:

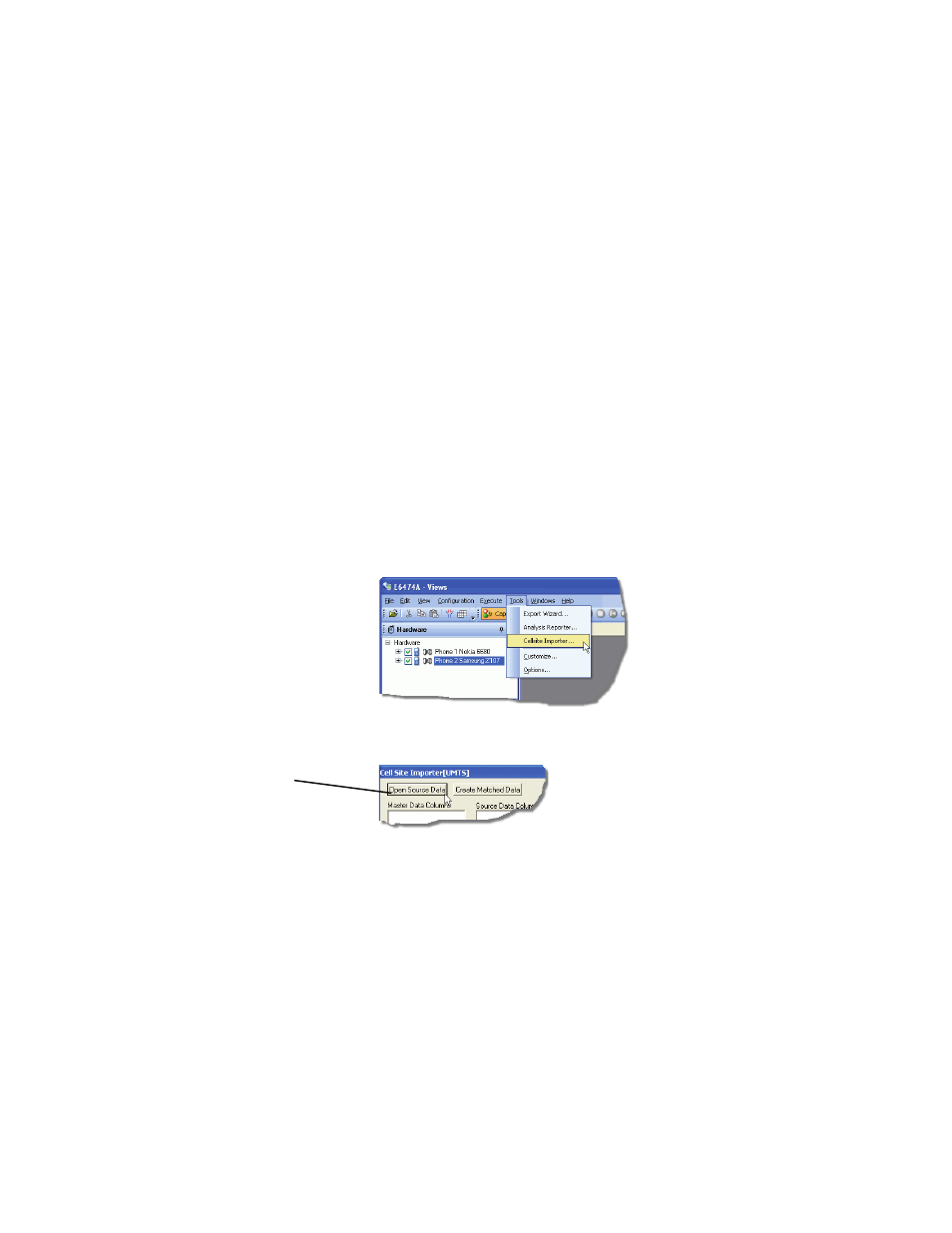

1 Select Tools > Cellsite Importer. The cellsite importer
opens. ( Figure 67 ).
Figure 67 Cellsite importer menu option
2 Select Open Source Data. ( Figure 68 )
Figure 68 Open data source button
Select open button
