Add a PETracer ML to Device Emulation Test Setup
To add a PETracer ML to the above setup:
Step 1 Attach connectors A and C to the Exerciser as described above.
Step 2 Attach connectors B to Port 1 and connector D to Port 2 on the PETracer
ML Analyzer.

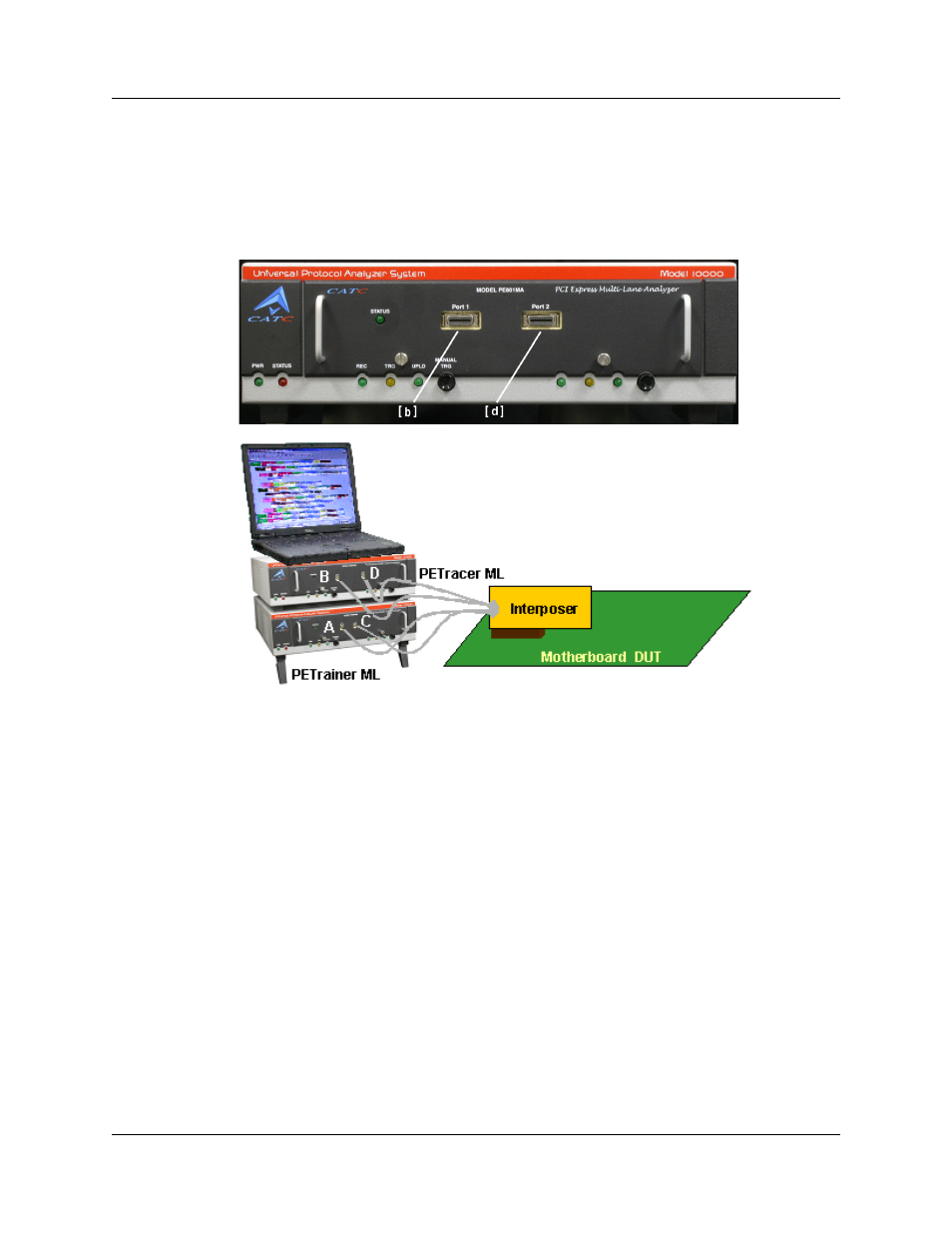

Figure 3.5 PETracer ML Front Panel showing where Connectors B and D Attach
