PETracer ML User Manual Chapter 2: Hardware Description
Teledyne LeCroy
21

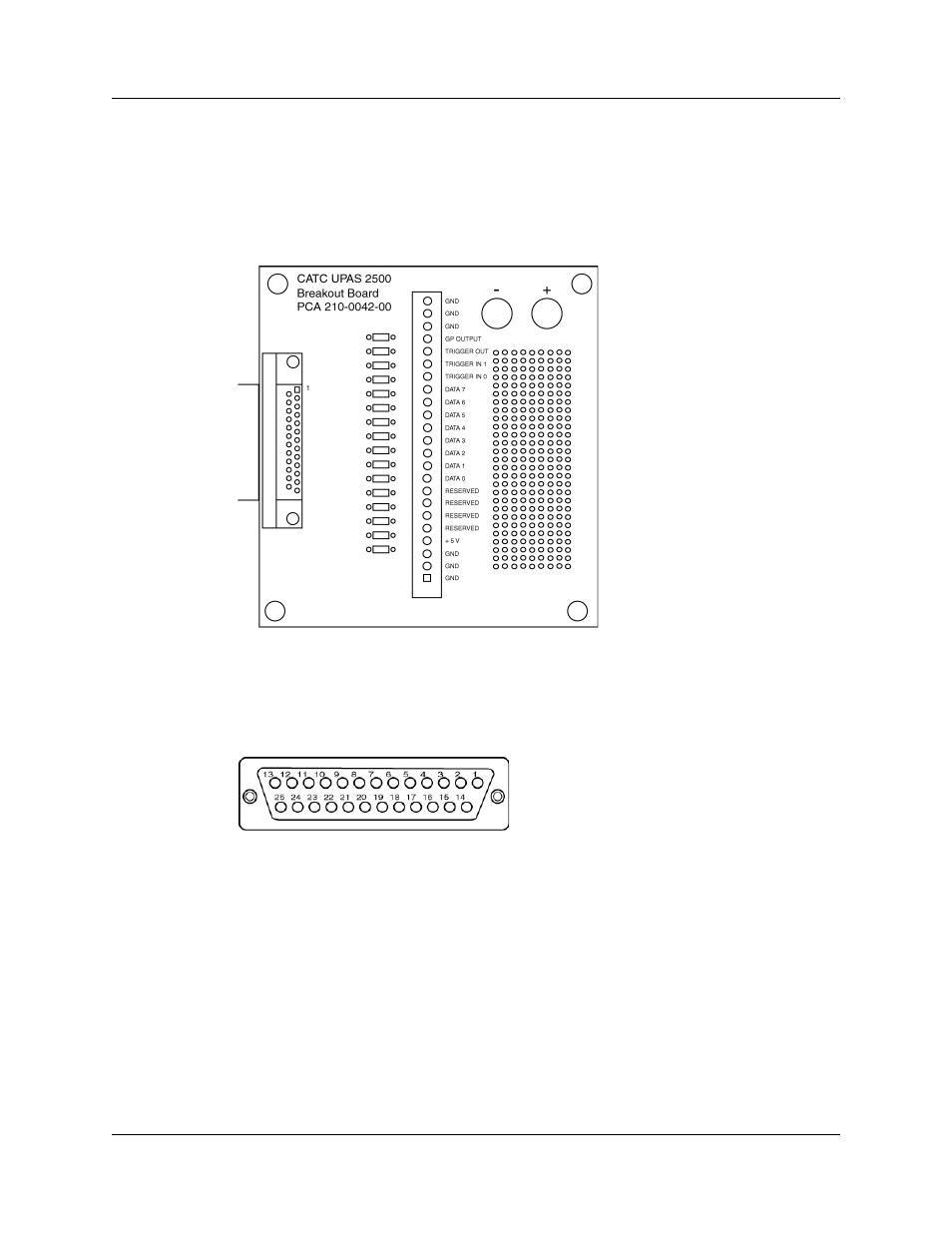

2.10 External Interface Breakout Board
With each Analyzer, Teledyne LeCroy includes an External Interface Breakout Board for
accessing several potentially useful standard, LV TTL output and input signals. The
Breakout Board also offers a simple way to connect logic Analyzers or other tools to the
PETracer ML Analyzer unit. Six ground pins and one 5-volt pin are provided.
The Breakout Board connects via a cable to the Data In/Out connector located on the
rear of the Analyzer unit. Each signaling pin is isolated by a 100
 series resistor and a
buffer inside the Analyzer unit.
Data In/Out Connector (on cable)
