9.11 Configuration Space View
The Configuration Space View displays information about the Configuration Space state
as of the current packet of the currently selected device. The view shows the
Configuration Space Header and the PCI-compatible or PCI Express
Capability Structures.
To display the Configuration Space View for a device at a packet:

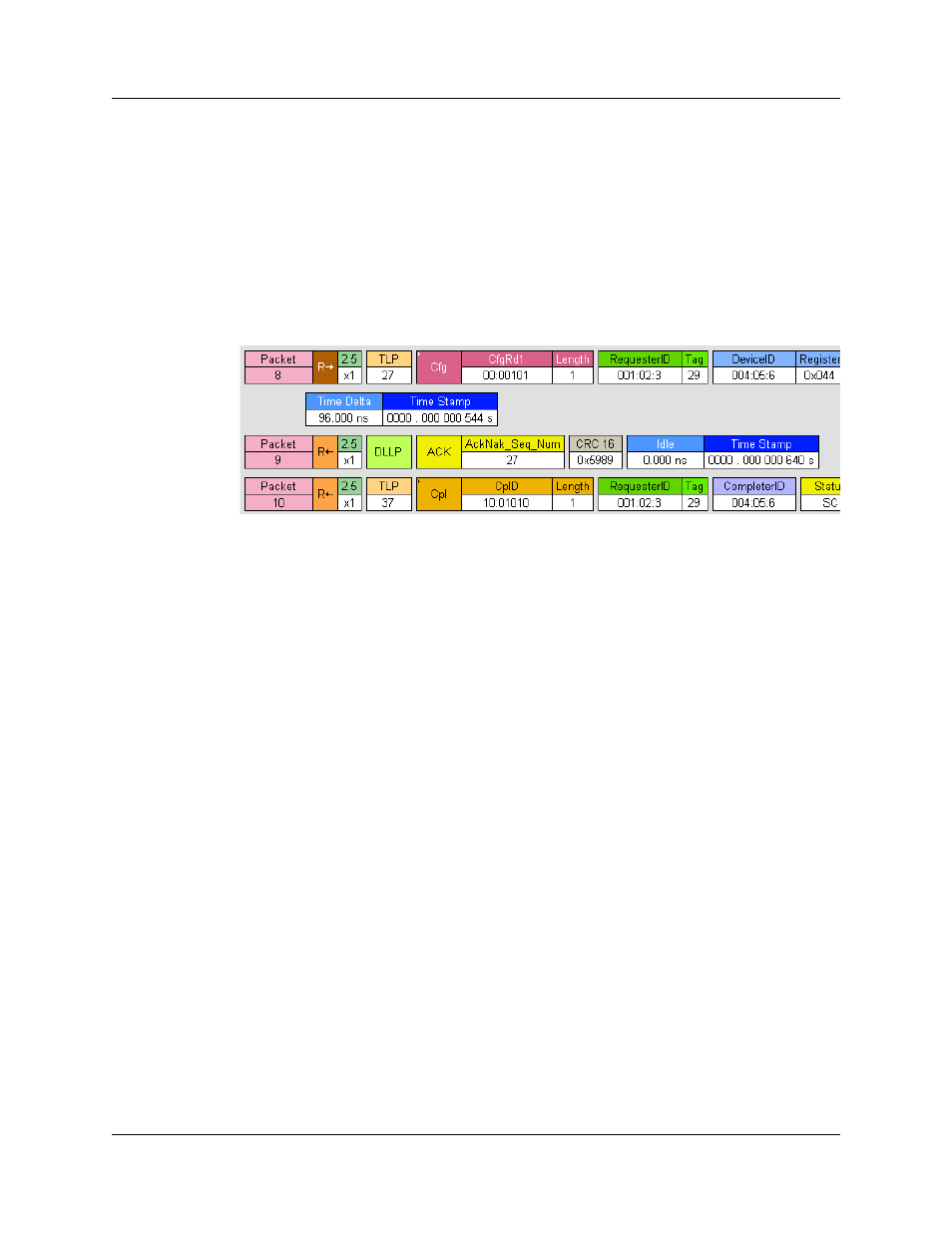

Step 1 Open a CATC Trace, such as the sample file cfg_pci_express.pex.
Step 2 Scroll to a packet with a Configuration header.
Step 3 Select Report > Configuration Space > to display the
Configuration Space View.
or
