Chapter 8: Recording Options PETracer ML User Manual
138
Teledyne LeCroy

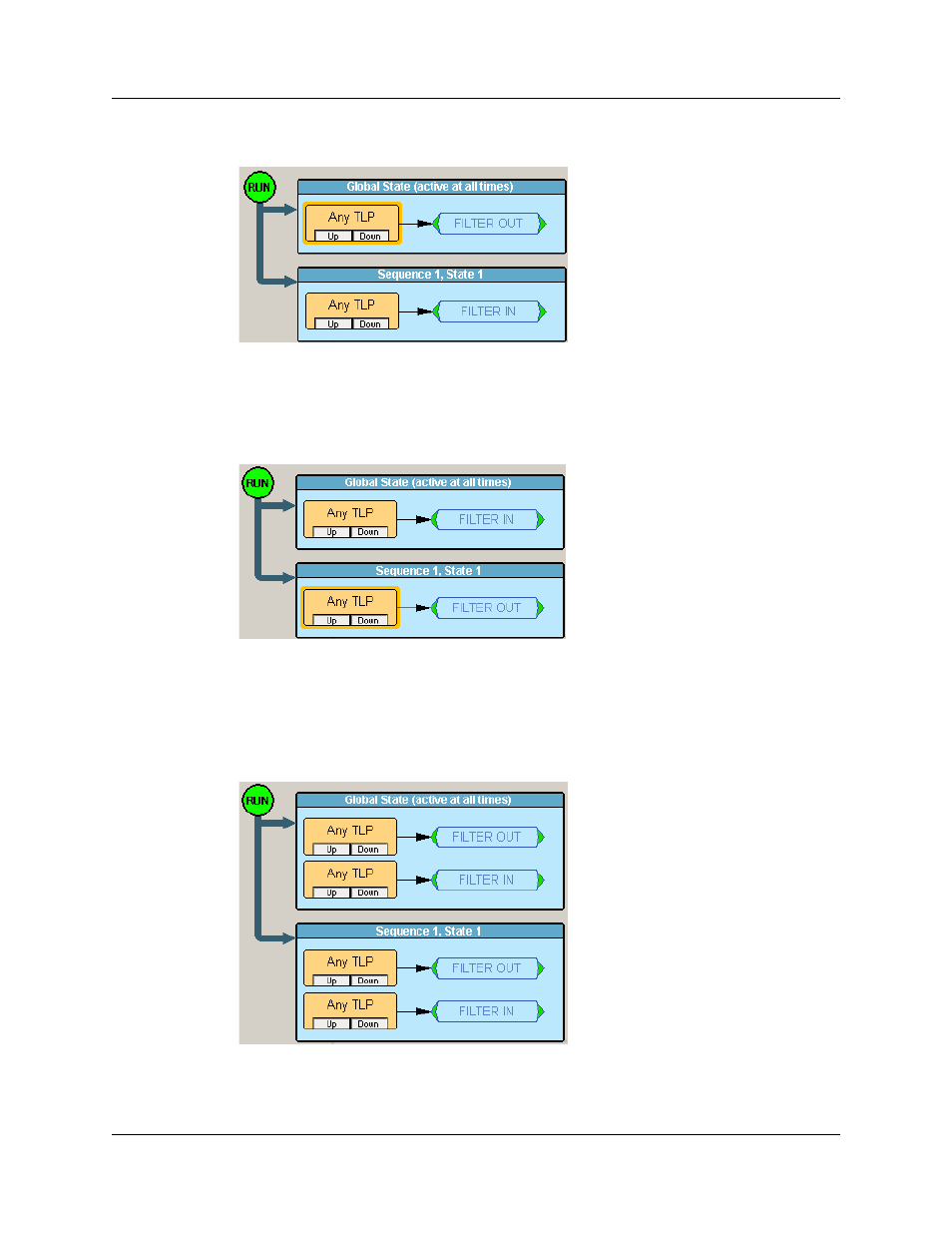

Example 11
Result: Only TLP (any type) is in the CATC Trace.
Reason: The sequence rule to filter in Any TLP is overwriting the global state rule to filter
out Any TLP.
Example 12
Result: Empty CATC Trace.
Reason: The sequence rule to filter out Any TLP is not contradicting the global state rule
to filter in Any TLP. Both rules are applied. (The global rule filters out DLLPs and Ordered
Sets, and the sequence rule filters out TLPs.)
Example 13
Result: Only TLP (any type) is in the CATC Trace.
