Chapter 2: Hardware Description PETracer ML User Manual
14
Teledyne LeCroy
2.6 PETracer ML Analyzer LED Descriptions
When powered on, the PETracer ML activates the user-accessible controls and LEDs on
the front and rear panels of the UPAS.
Warning! Do not open the UPAS enclosure. There are no operator serviceable parts
inside. Refer servicing to Teledyne LeCroy.

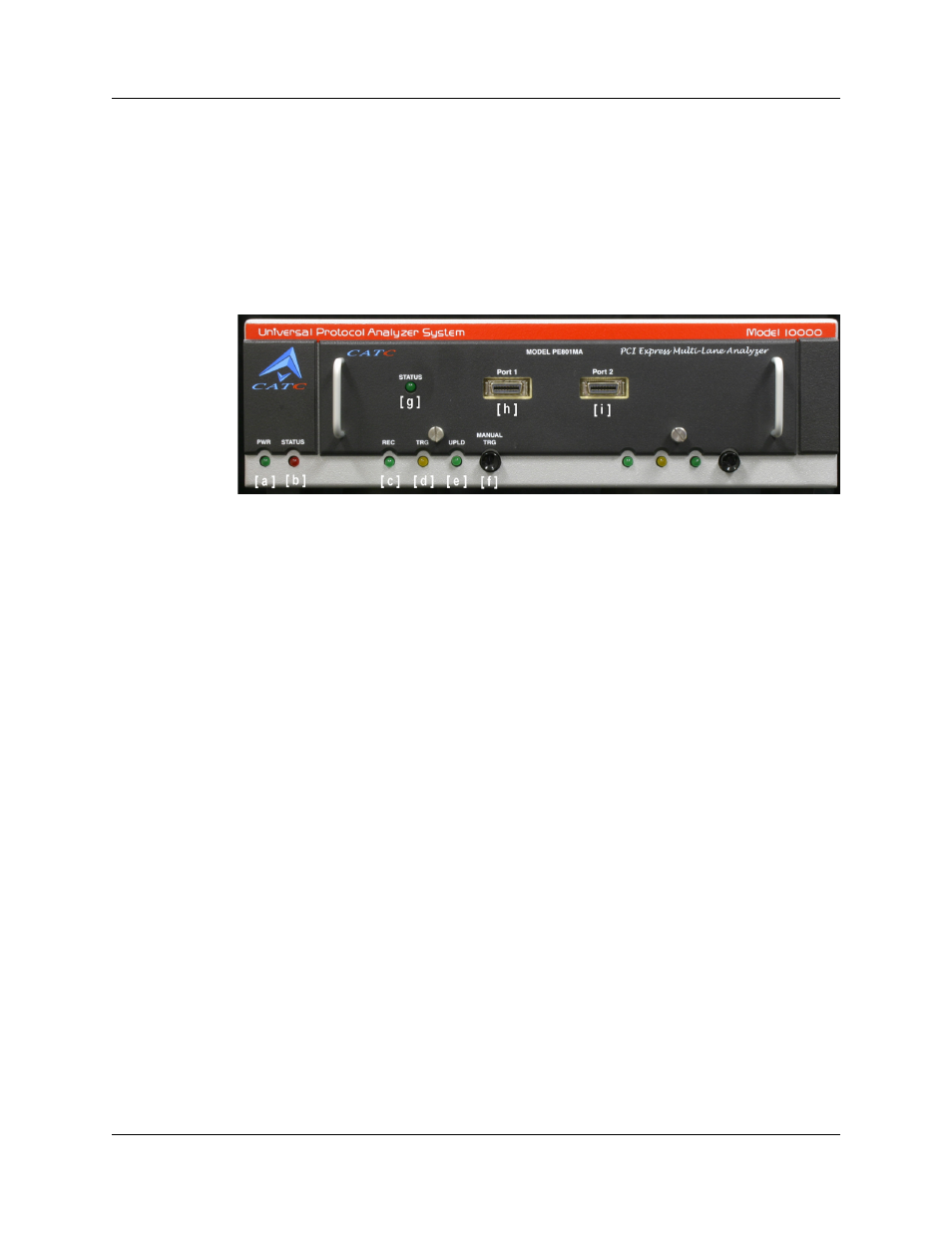

UPAS LEDs (from left to right)
(a) Green PWR (power) indicator LED for UPAS: lights when the unit power is switched
on.
(b) Red Status indicator LED for UPAS: lights during initialization/power up of UPAS
base unit. Blinks if a self-test fails.
The following LEDs and the Manual Trigger button on the UPAS function in conjunction
with the PETracer ML module inserted above it:
(c) Green REC (recording) LED: lights when the unit is recording.
(d) Orange TRG (triggered) LED: lights when the unit triggers on an event.
(e) Green UPLD (Upload): lights when unit is uploading data to host machine.
(f) Manual Trigger push-button: allows a manual CATC Trace capture.
LEDs and Connectors on the PETracer ML Module
(g) Green Status LED: Illuminates when there is traffic on the link.
(h) Probe Data Connector
(i) Probe Data Connector
