Chapter 3: Installation
PETracer ML User Manual
36
Teledyne LeCroy
Installing the Device Emulation Interposer
To install the Interposer into the DUT, perform the following steps.
Step 1 If not already powered off, power off the PETrainer/UPAS 10K system
and the DUT.
Step 2 Insert the edge connector on the Device Emulation Interposer into a
PCI Express slot in the DUT. The Interposer is designed to fit tightly into
any standard x4, x8, or x16 PCI Express slot.
Step 3 The slot Interposer is shipped from Teledyne LeCroy with a metal face
plate for attachment to a PC case. If you are working with a motherboard
that is not in a PC case, you may prefer to remove the metal face plate
so the Interposer can sit flat with the motherboard. To remove the face
plate, unscrew the two screws that hold it onto the Interposer.
Step 4 Attach probe data cable as described below in “Probe Data Cable
Installing the Host Emulation Test Fixture

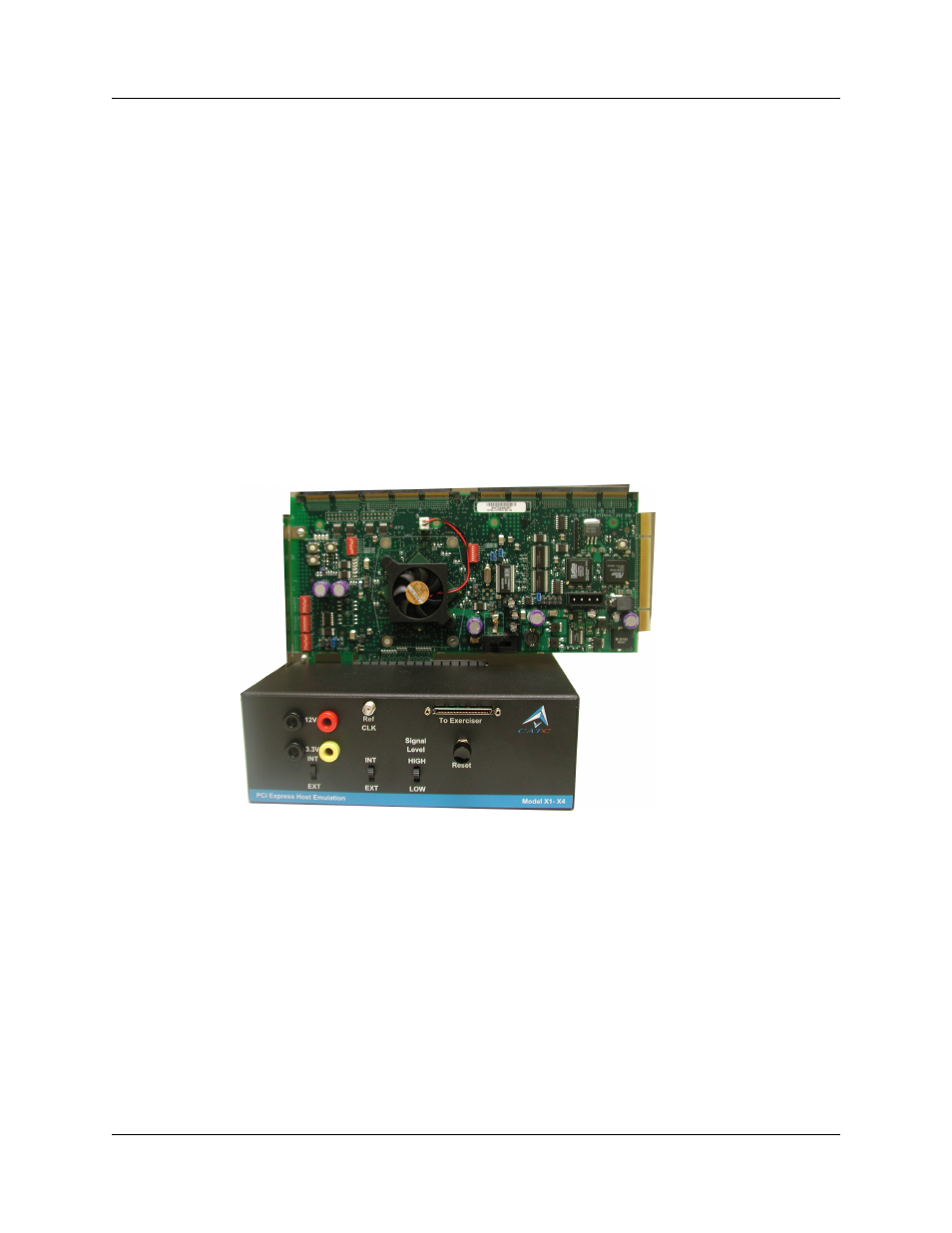

Figure 3.3
Host Emulation Test Fixture with DUT Card on Top
Step 1 If not already powered off, power off the PETrainer/UPAS 10K system
and the DUT.
Step 2 Insert the male edge connector of the DUT into the PCI Express slot on
top of the Host Emulation Test Fixture.
Step 3 Attach probe data cable as described in the next section.
