3.7 Connecting the PETracer ML Analyzer to the
Device Under Test

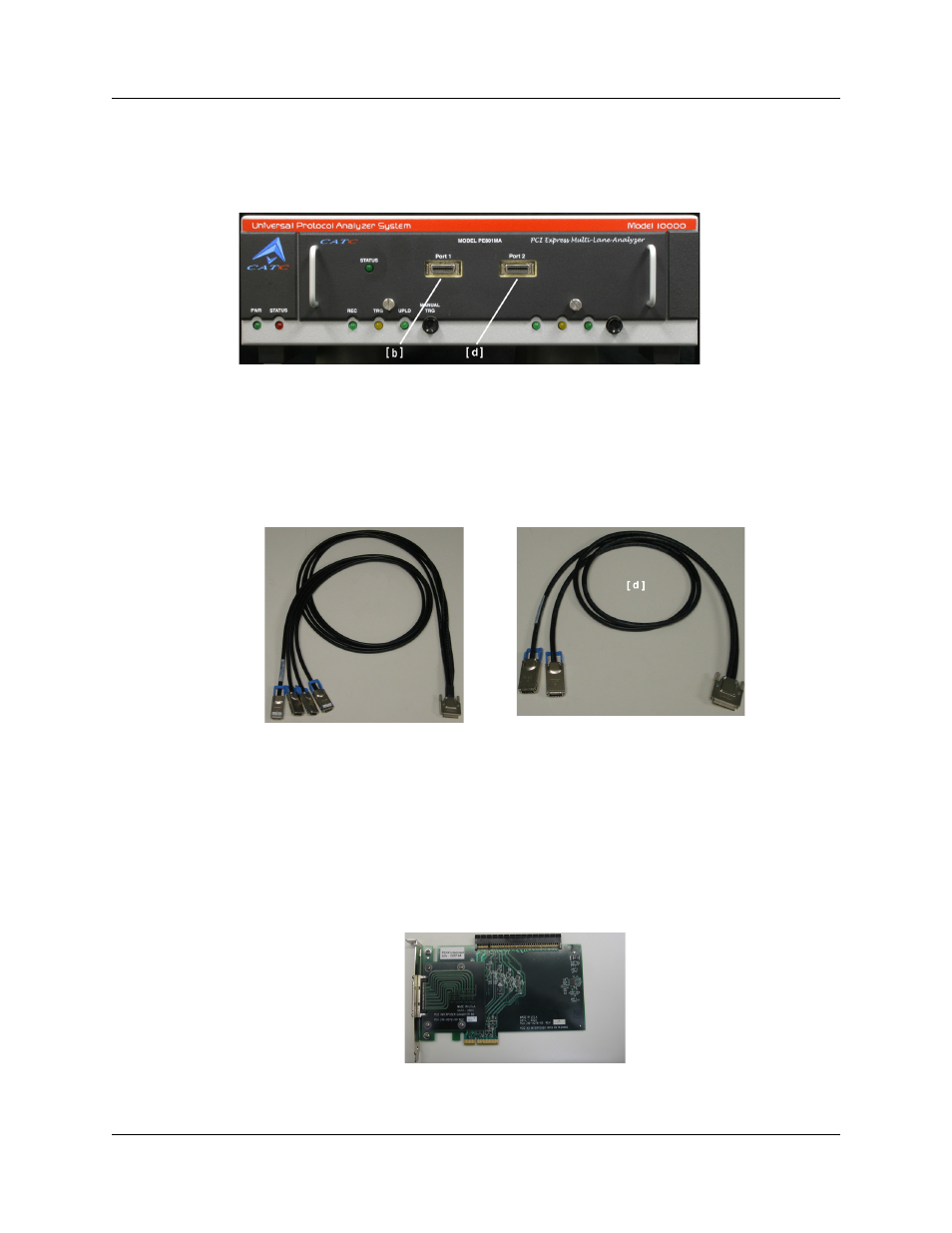

PETracer ML Components
(a) PETracer ML Probe Data connector
(b) PETracer ML Probe Data connector
(c) Probe Data cable: Cable with four connectors. The four-connector cable supports
x8, x4, x2, and x1 links. The small connectors connect to the front of the Analyzer(s).
The large connector at the other end connects to the Interposer.
(d) Probe Data cable: Cable with two connectors. The two-connector cable supports x4,
x2, and x1 links. The small connectors connect to the front of the Analyzer(s).
The large connector at the other end connects to the Interposer.
(e) PETracer ML Slot Interposer Probe: The probe has two connectors: a gold male
connector that fits into a standard PCI Express slot, and a black female connector
that accommodates a PCI Express device. There are two versions of the probe, an
x8 probe and a x4 probe. The gold male adapter on the x4 probe is half the length of
the x8.
PETracer
Cable Connector
To Analyzer
Edge Connector (to Motherboard)
Black Female Connector for a Device
