PETracer ML User Manual Chapter 11: Macros
Teledyne LeCroy
231
Chapter 11: Macros
11.1 Macros
PETrainer™ ML allows you to add buttons to the Status bar at the bottom of the window
(and add commands to the Generate menu) to run traffic generation macros on the
Exerciser.
After a macro script has been defined and assigned to a button the on the Status bar, the
macro can be run by clicking the macro button with the mouse or selecting the macro
name from the Generate menu.
Default Macros: Connect and Disconnect
By default, the PETracer™ software includes two macros, Connect and Disconnect.
These buttons execute macros for creating and breaking a connection between the
Exerciser and a DUT.

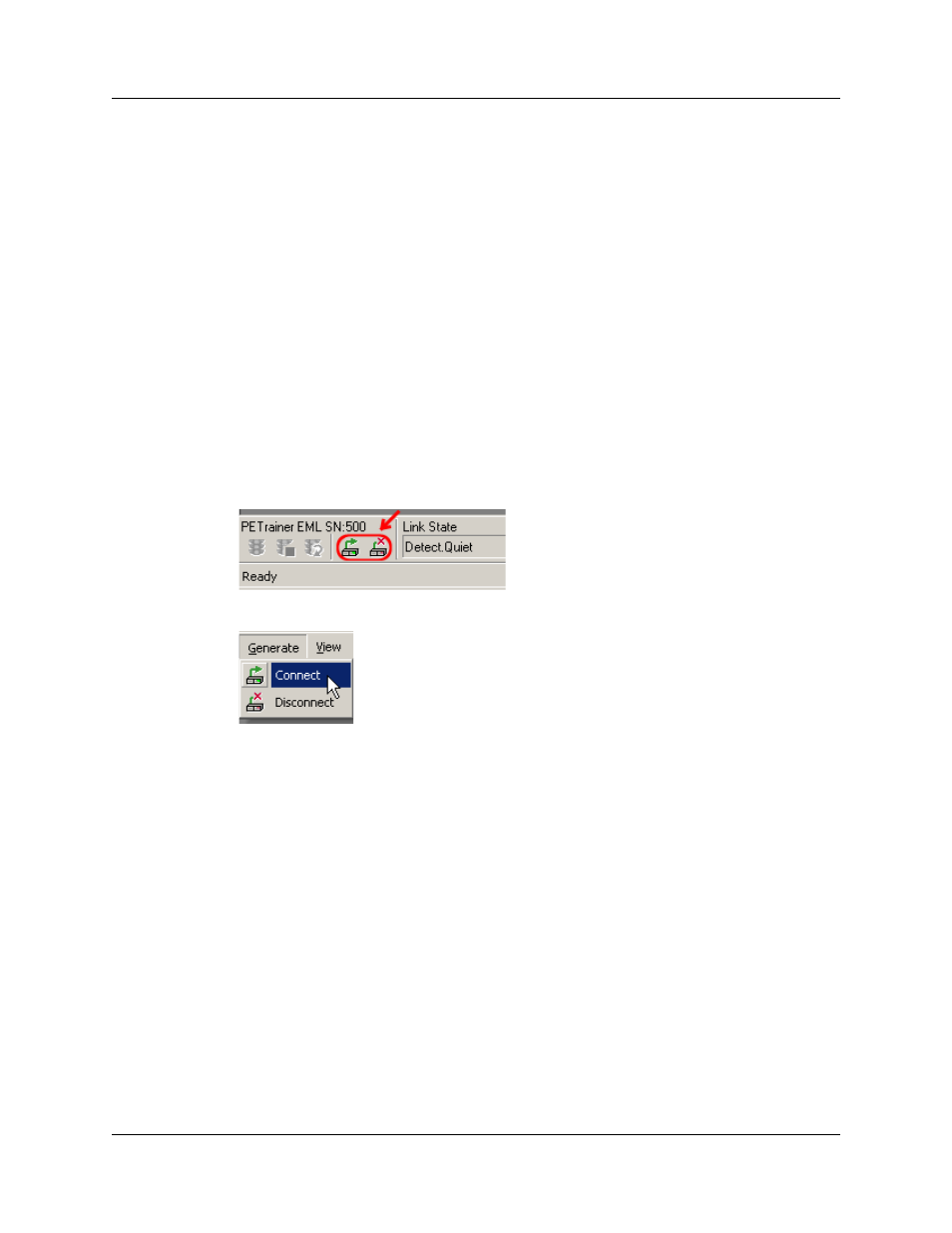

The buttons are on the Status bar when Exerciser hardware is present.
The commands are also on the Generate menu:
Connect Macro
The default code for this macro is the following:
Config = General {TrainerReset = 1}
Link = Detect
Wait = 500
Link = L0
Wait = 500
Link = InitFC
Disconnect Macro
The default code for this macro is the following:
Config = General {TrainerReset = 1}
Link = Detect
