PETracer ML User Manual Chapter 8: Recording Options
Teledyne LeCroy
133
• Up to two sets of Link Conditions or Ordered Sets per channel: If you place a
combination of three Link Conditions and Ordered Sets into three separate state
cells and then assign three different actions to each, an error results.

Example: Place TS1 in the Global State cell and select Filter Out. Then place TS2
in Sequence 1, State 1 and select Advance the Sequence. Then add Link Active
to Sequence 1, State 2 and select Trigger. When you attempt to apply Trigger to
Link Active, an error message appears.


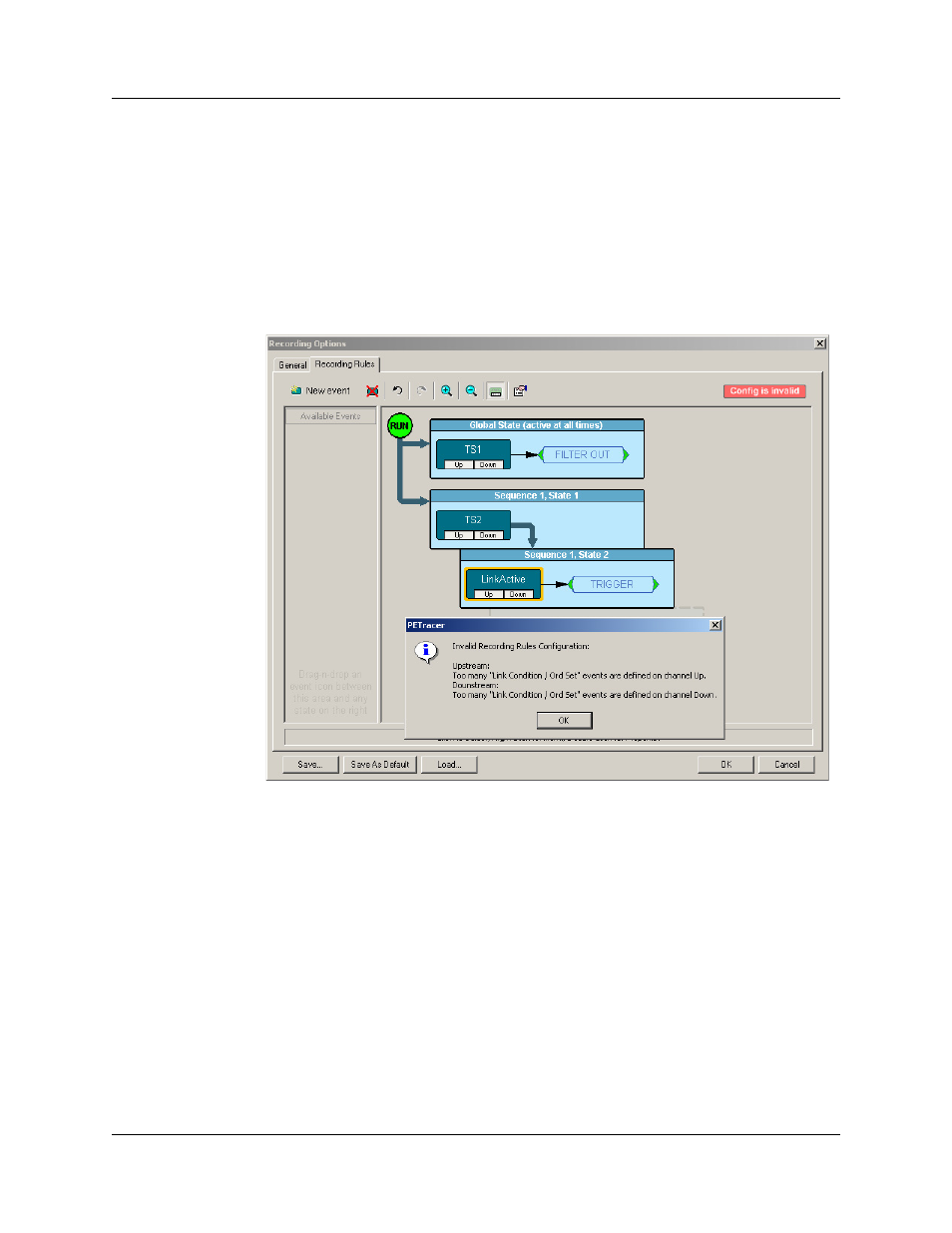

Example: Too many Link Conditions and Ordered Sets. In this example, the user
attempted to create a rule with three Link Conditions and Ordered Sets. The
maximum allowable Link Conditions and Ordered Sets is two.
• In two-unit setups, no cross-box sequencing is allowed: For example, you
cannot configure the first Analyzer to advance sequence on TLP and then configure
the second to trigger on a DLLP-ACK for this TLP. Actions apply to both Analyzers.
• Four different DLLPs per channel
• Three different TLPs per channel
• Four payload DWORD-checkers per channel
• One set of errors per channel
• One Timer event per channel
• Two Counters per channel
