Setting Field Colors
The Field Colors tab allows you to customize the colors associated with each field used
in the packet view.
You may experiment with this option to achieve a color combination that suits you.
Select or change the trigger color using the color buttons labeled - Packet # and 
+ Packet # (before and after trigger) found under the Packet# section of the Field Colors
window.
You select or change a color by clicking the appropriate color button. This action causes
a color palette to pop up. Select the desired color and press OK.
Step 1 Click View > Set Display Options to open the Display Options dialog
box.
Step 2 Select the Color/Format/Hiding property page.

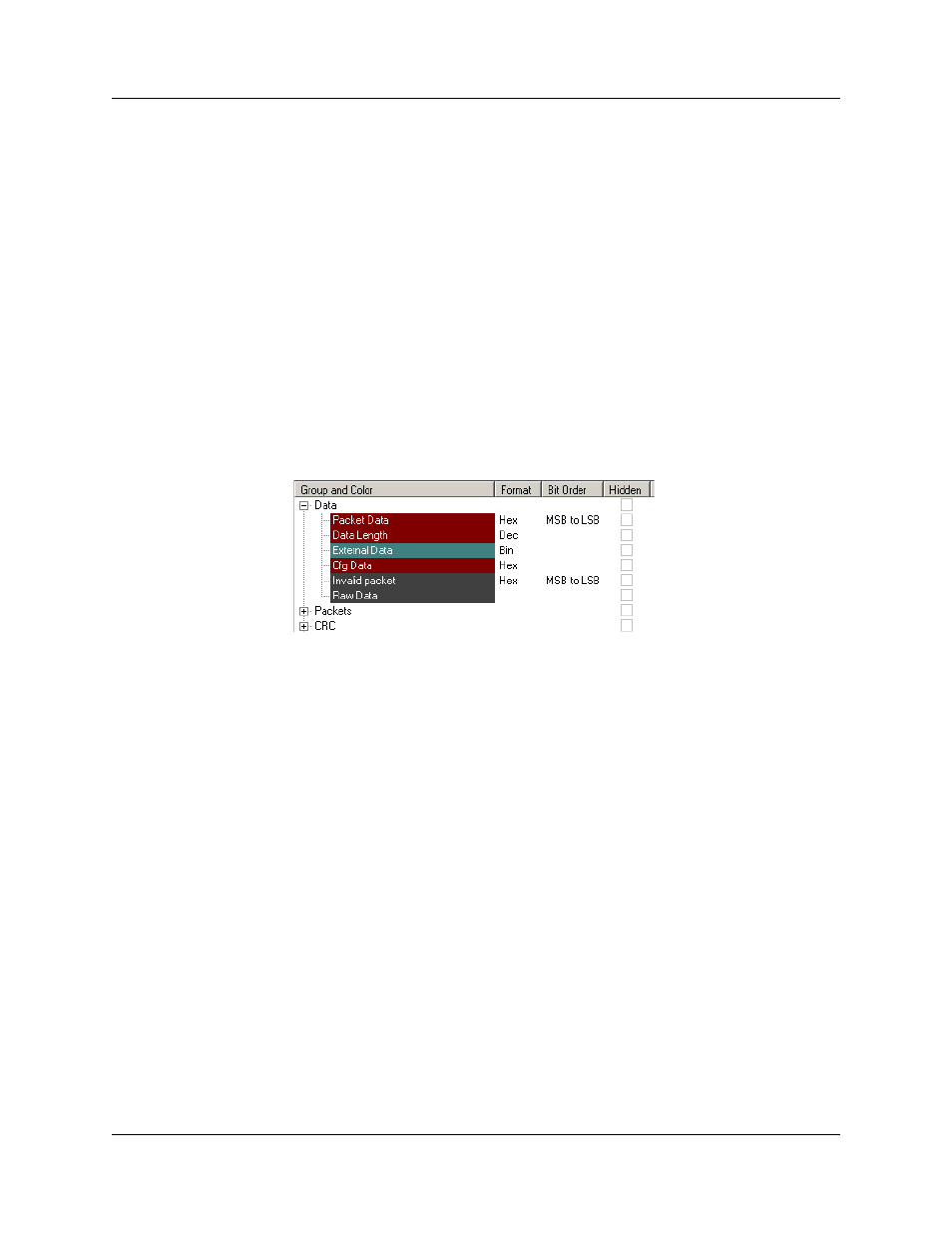

Step 3 Under the Group and Colors column, click the plus symbol (+) next to
the group you want to reformat. The group expands to show the
individual fields within the group. Each field has a color, as shown below:
Step 4 Click the colored cell that you want to change. A color palette appears.
Step 5 Click a color in the palette, then click Apply or OK.
Note: The colors of the following Frame types cannot be changed:
• Invalid Data (frame error) field ( red )
• Softbit Errors (yellow)
