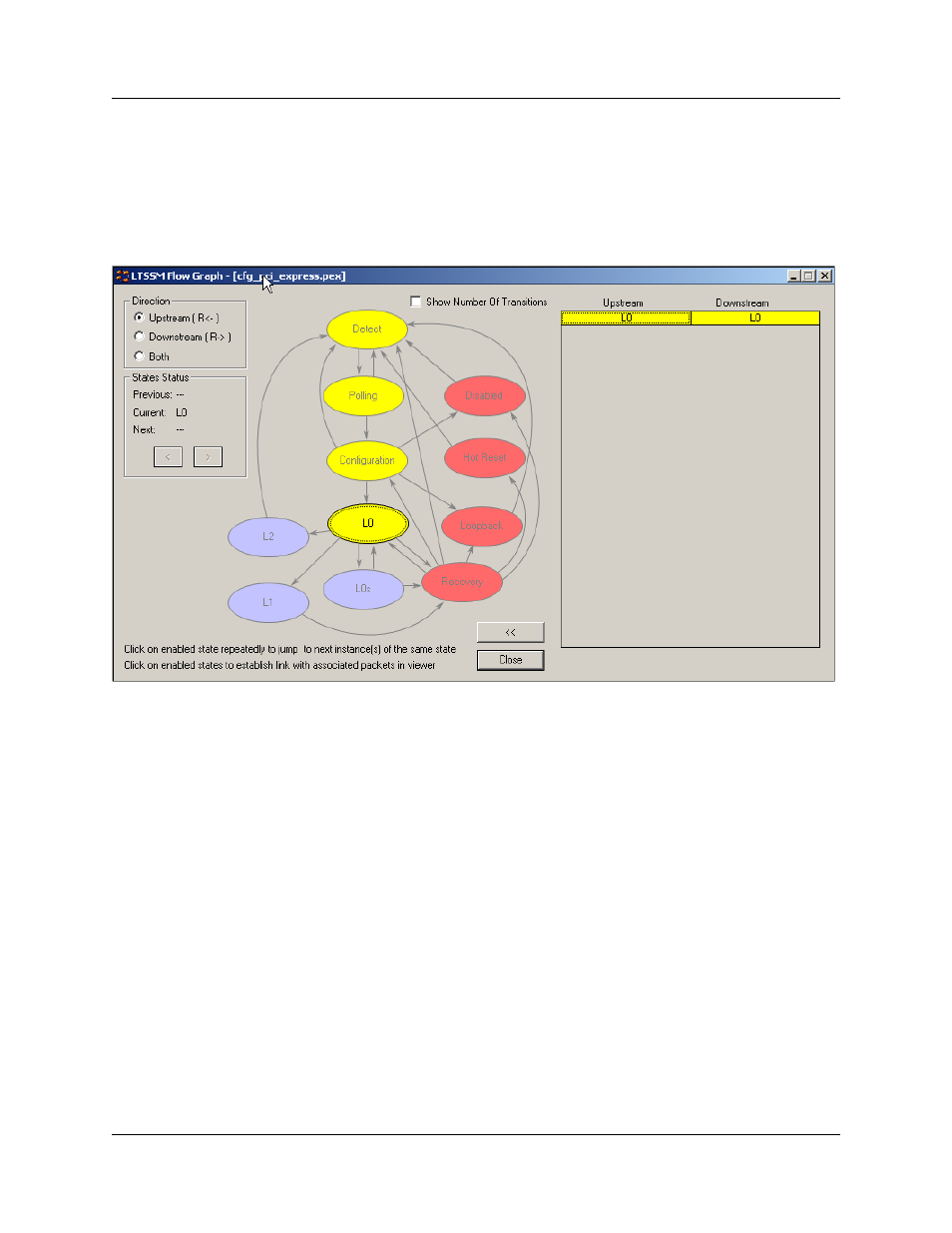

9.8 LTSSM Flow Graph
The LTSSM Flow Graph shows link state transitions that the link goes through, as
recorded in the CATC Trace file.
To obtain the LTSSM Flow Graph, select View > LTSSM Flow Graph.
You can display the following directions:
• Upstream
• Downstream
• Both
You can Show Number of Transitions.
