1. Part Names
1.2
Short Types
1.2.1
Compact types

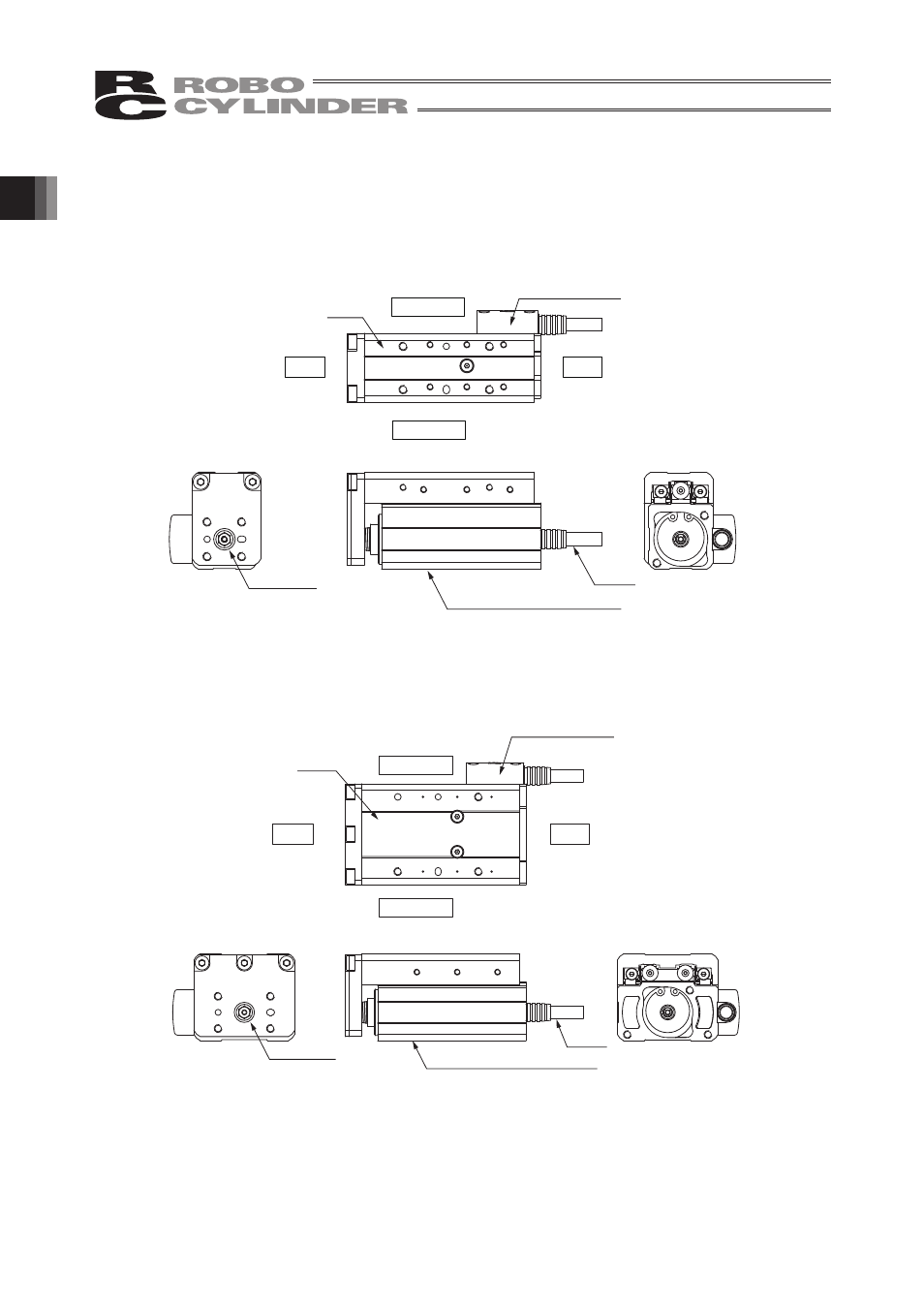

RCA2-TCA3NA, TCA3N (Slide screw, Ball screw),
TCA4NA,TCA4N (Slide screw, Ball screw)
*
Refer to 2, “External Dimensions” for details.
1.2.2
Wide types
RCA2-TWA3NA, TWA3N (Slide screw, Ball screw),
TWA4NA,TWA4N (Slide screw, Ball screw)
*
Refer to 2, “External Dimensions” for details.
Cable
Connector Cover
Main Body (Aluminum Frame)
Table
Right Side
Left Side
Front Plate
Rear
Front
Cable
Connector Cover
Main Body (Aluminum Frame)
Table
Right Side
Left Side
Front Plate
Rear
Front
