Reese 30868 RAIL KIT - Manual (Page 8)

30868N – 9FEB11D PCN14805 ©2011 CEQUENT PERFORMANCE PRODUCTS, INC. LITHO IN USA
8

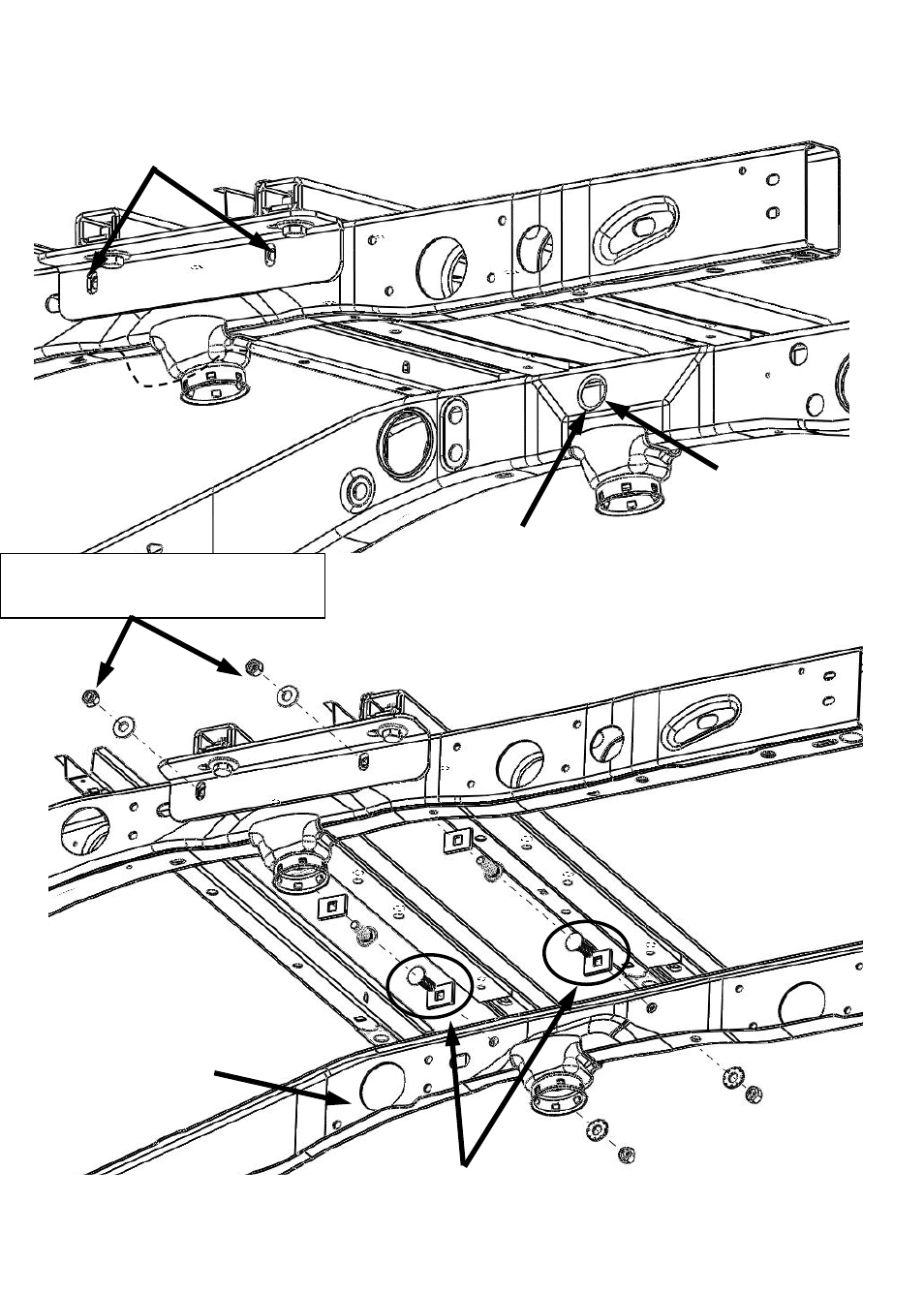

11. Loosely attach frame brackets to frame using 5/8” x 2” carriage bolts, 5/8” conical washers, spacers, and 5/8” nuts
hand tighten ( Figure 17&18 ). Slide spacer onto the carriage bolt and thread the carriage bolt into the pull wire.
Guide the pull wire through chassis (using access hole as shown), then guide the wire through the chassis to
position bolt and spacer through mounting holes. Loosely attach conical washer and nut from outside of frame rail.
Place 5/8” Carriage
Bolt and a spacer on a
pull wire (4 locations)
Guide 5/8” carriage bolt
and spacer through
chassis opening here
Chassis cut away shown
to show where carriage
bolt and spacer will be
installed
5/8” Nut ( 4 Locations )
5/8” Conical Washer ( 4 Locations )
Figure 17
Figure 18
Access Hole for pull
wires (Located on
both sides)
5/8” Carriage bolt will
mount here using pull wire
from access hole
