REESE

INSTALLATION INSTRUCTIONS

Product No.

45007

You can take it with you.

SMALL PARTS

PACKAGE 45218

ELKHART, IN., OAKVILLE, ONT.

CHEVROLET / GMC VANS

WARNING: DO NOT LUBRICATE THREADS, BOLT FAILURE MAY
OCCUR DUE TO OVER TIGHTENING.
WARNING: DO NOT DRILL OR WELD TO THIS HITCH.

IMPORTANT NOTES

USE ONLY REESE SUPPLIED OR APPROVED BOLTS, LOCKNUTS,
AND WASHERS TO INSTALL THIS HITCH

TOOLS REQUIRED

3/4” SOCKET
TORQUE WRENCH

1/2” CARRIAGE BOLT

SMALL BOLT PLATE

1/2” SERRATED WASHER

1/2” LOCK WASHER

1/2” NUT

1/2” CARRIAGE BOLT

LARGE BOLT PLATE

1/2” FLAT WASHER

1/2” LOCK WASHER

1/2” NUT

NOTE: THIS PRODUCT IS NOT
RECOMMENDED FOR USE
ON A 1/2 TON VEHICLE.

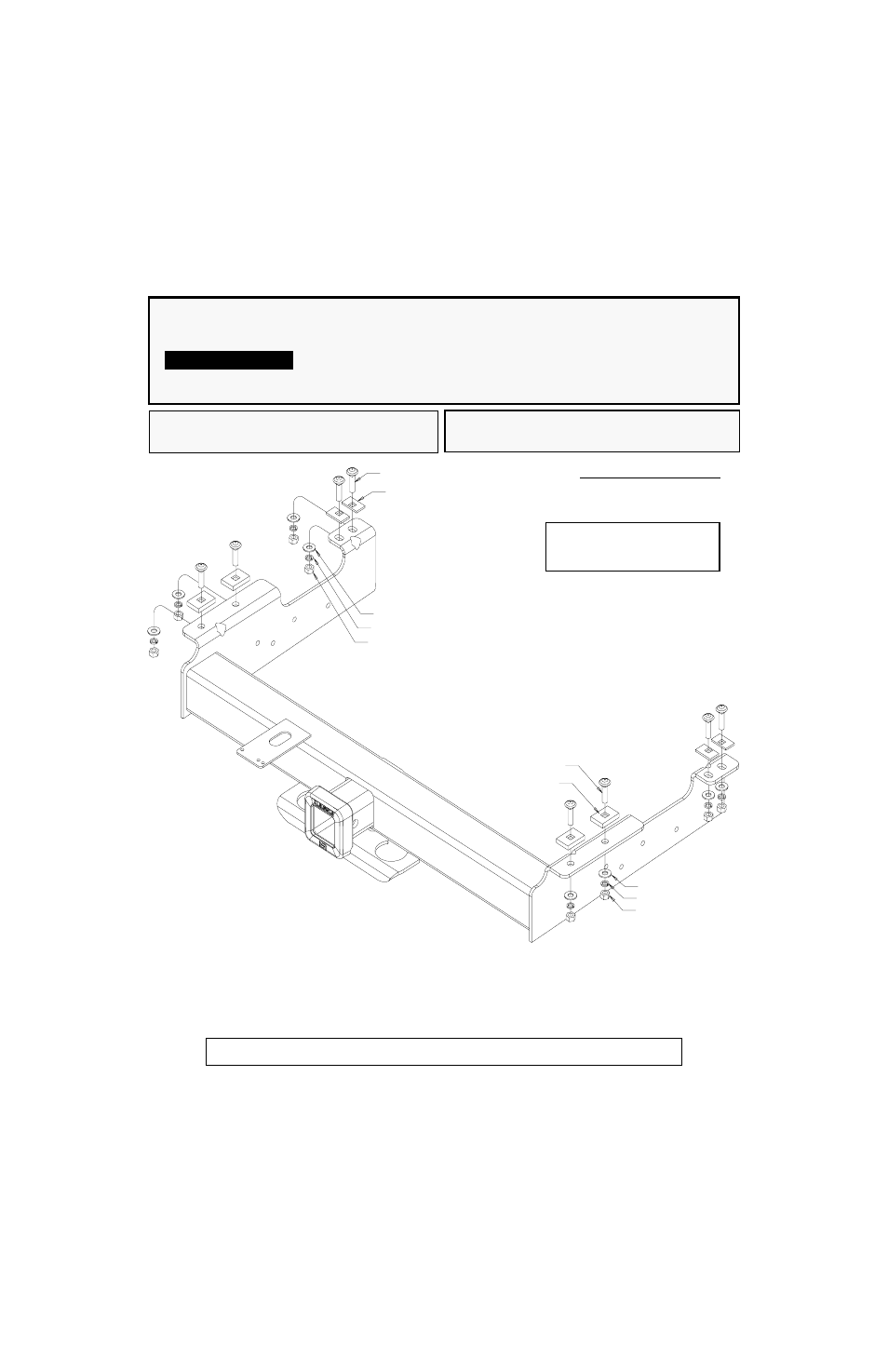

1. Place two 1/2” carriage bolts with the large bolt plates through the two rear holes on each side of the frame.

2. Lift the hitch up to the frame, with the bolt going down through the rear holes in the brackets. Install 1/2” flat
washers, lock washers and nuts on the bolts. See the diagram above.

(OVER)

For Installation Assistance or Technical Help, Call 1-800-758-0869

45007IN-1DEC97B PCN3775 © 1997 REESE PRODUCTS, INC.

Litho in USA
