Slide number 7, Front of vehicle front of vehicle – Reese 30868 RAIL KIT User Manual
Page 7
30868N – 9FEB11D
PCN14805
©2011 CEQUENT PERFORMANCE PRODUCTS, INC.
LITHO IN USA
7
•

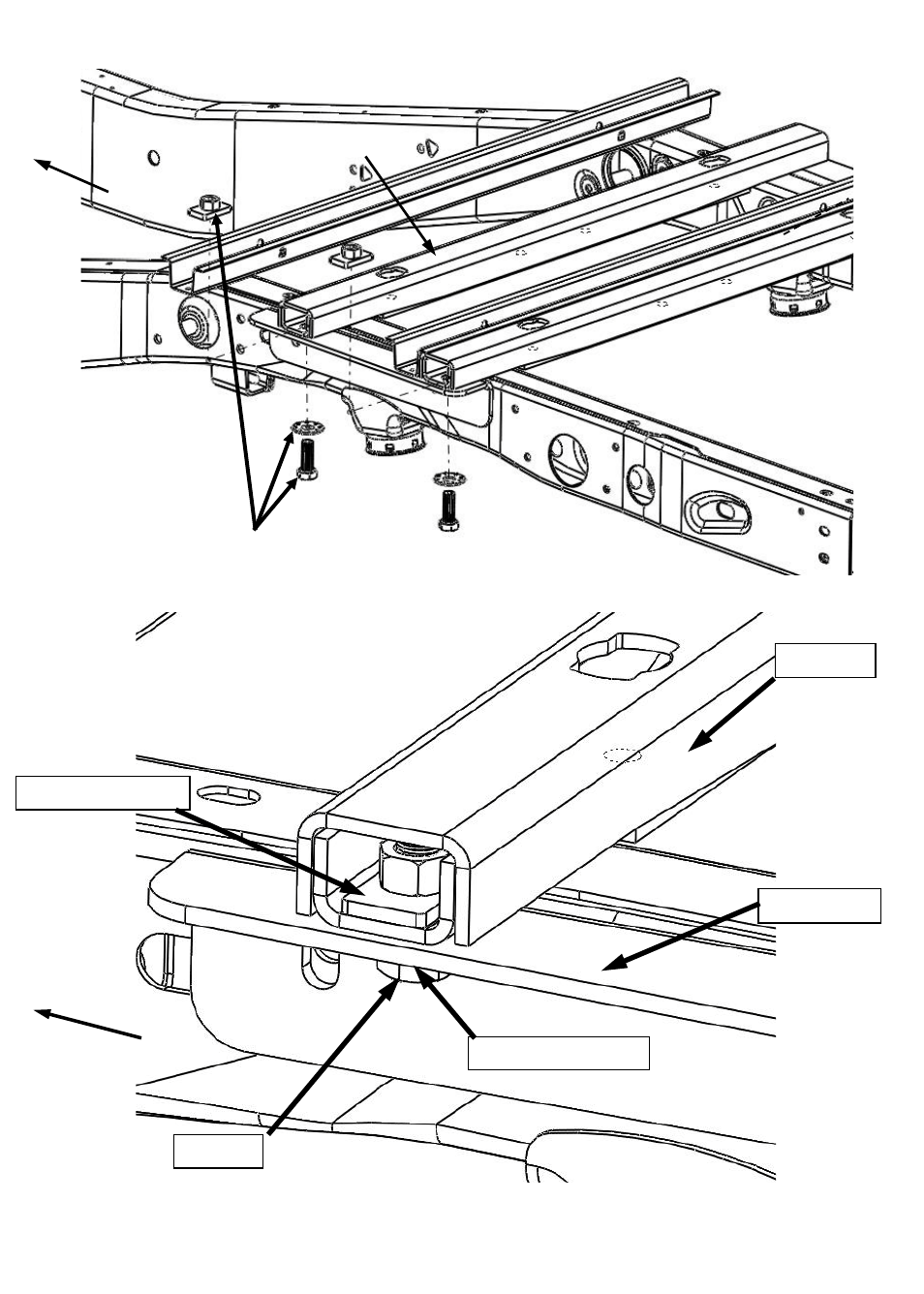

Loosely attach frame brackets to rails using 3/4” X 2” hex bolts, 3/4” conical washers, and welded nut/spacer
hardware. (
Figures 15 & 16
).
3/4” x 2” Hex Bolt ( 4 Places )
3/4” Conical Washer ( 4 Places )
Welded Nut/Spacer ( 4 Places )
Figure 15
Front of
Vehicle
Front of
vehicle
Front Rail
Welded Nut/Spacer
3/4” Conical Washer
3/4” Bolt
Side Bracket
Figure 16
Front Rail
NOTE: The side brackets should be
oriented so the angled edge is parallel
to the top of the truck frame. (The larger slots
will be on top)
