INSTALLATION INSTRUCTIONS

MOUNTING KIT

GENERAL MOTORS 2011

Chevrolet Silverado/GMC Sierra

2500HD & 3500HD

For Installation Assistance or Technical Help, Call 1-888-521-0510

DEALER/INSTALLER:

(1) Read all instructions before installation

(2) Provide this Manual to end user.

END USER:

(1) Save this Manual for future reference.
(2) Pass on copies of Manual to any other user or owner of Hitch.

Note: GMC/Chevrolet 2500/3500

8’ bed

chassis

pictures are shown through out these instructions.

The

6’ bed

will have a hat channel directly above the

rear axel. The same installation process will be used
for the 6’ bed but the rails will be located
approximately as shown in

figures 13 & 14.

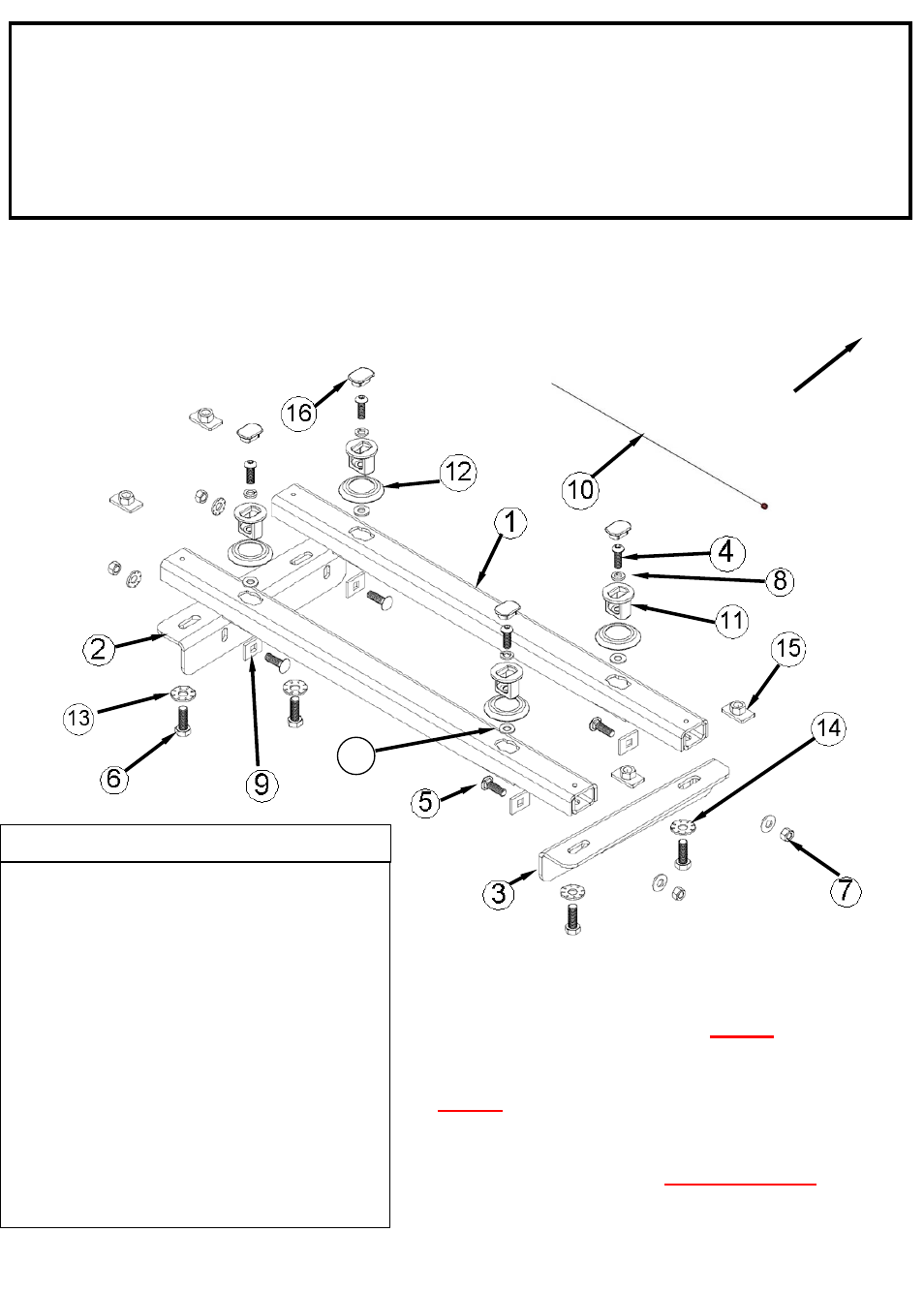

17

PART

QTY.

1

BASE RAIL

(2)

2

FRAME BRACKET – LEFT HAND (1)

3

FRAME BRACKET – RIGHT HAND (1)

4

5/8-11 BUTTON HEAD SCREW (4)

5

5/8-11 GRADE 8 CARRIAGE BOLT 2” (4)

6

¾-10 GRADE 8 HEX HEAD BOLT 2” (4)

7

5/8-11 GRADE 8 NUT (4)

8

5/8 LOCK WASHER (4)

9

SPACER (SQUARE HOLE) (4)

10 PULL WIRE (2)
11 PUCK (4)
12 TRIM RING (4)
13 ¾” CONICAL WASHER (4)
14 5/8” CONICAL WASHER (4)
15 NUT / SPACER ASSEMBLY (4)
16 PUCK PLUG (4)
17 5/8” FLAT WASHER (4)

Front of

vehicle
