Page 68

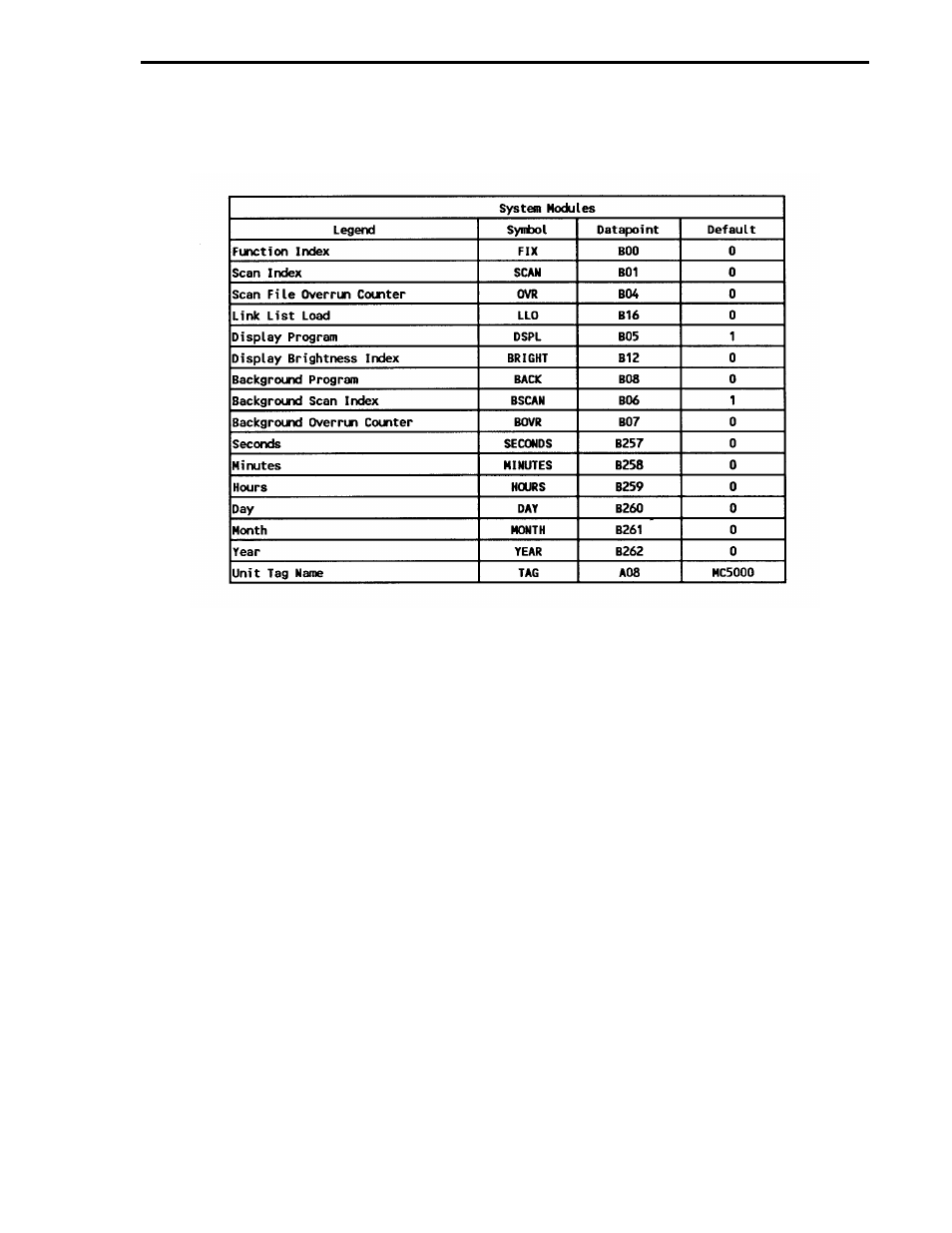

3.4.11 SYSTEM MODULE
The System Module controls the fundamental response of the controller.
FUNCTION INDEX:
The operational algorithm of the unit is selected by the value of this parameter.
0
No Control Algorithm Execution
1
Execute Flexible Control Strategy
(or custom EPROM)
2 - 89
Execute User F-TRAN Program
(or custom EPROM
90 - 96
Reserved
97
Display Test
98
Default Database
99
Execute F-CIM Module
100
Special Approval (Custom EPROM)
101 - 255
Execute User F-TRAN Program
MODULAR CONTROLLER QUICK START
3-43
