3.2.5 CONFIGURE A MODULE
The navigational sequence would be the following:
•
Select Module Type (then Module, if there’s more than one Module)
•
Select Page (Skipped when there’s only a single page)
•
Select Parameter
3.2.5.1 Module-Mode ConfigurationProcedure
•
Press the Mode button to enter ENGINEER mode
indicated by the appearance of either CONFIGURE,
DISPLAY or PROGRAM at the bottom of the display..
•
If CONFIGURE does not appear, press F2 until CON-
FIGURE appears at the bottom of the display.
•
When CONFIGURE is displayed, press F3 to enter the
CONFIGURE mode.
•
For a Hi-Res display, as shown, press F2 until MOD-
ULE appears at the bottom of the display.
•
When MODULE is displayed, press F3 to enter the
MODULE mode.
•

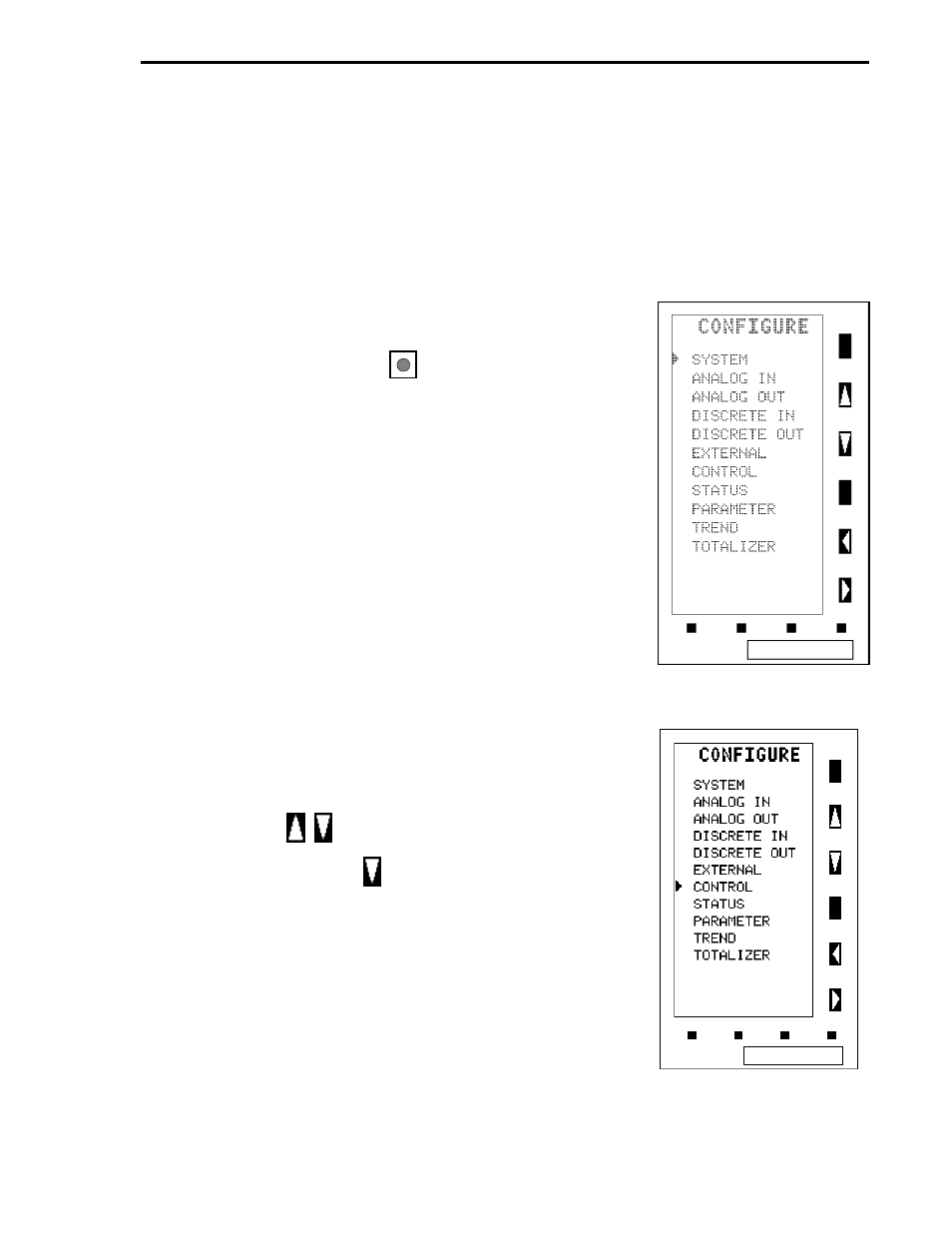

The screen should now appear as shown on the right.
•
Select the desired MODULE type to be configured by
using the keys to navigate to the desired mod-
ule type.
•
In this example, the button was used to navigate to
the CONTROL module type as shown to the right.
•
Press F3 to select this Module type.
