Micromod Micro-DCI: 53MC5000 Multi-Loop Process Controller Installation User Manual
Page 50
7.
Select OK to continue.
8.

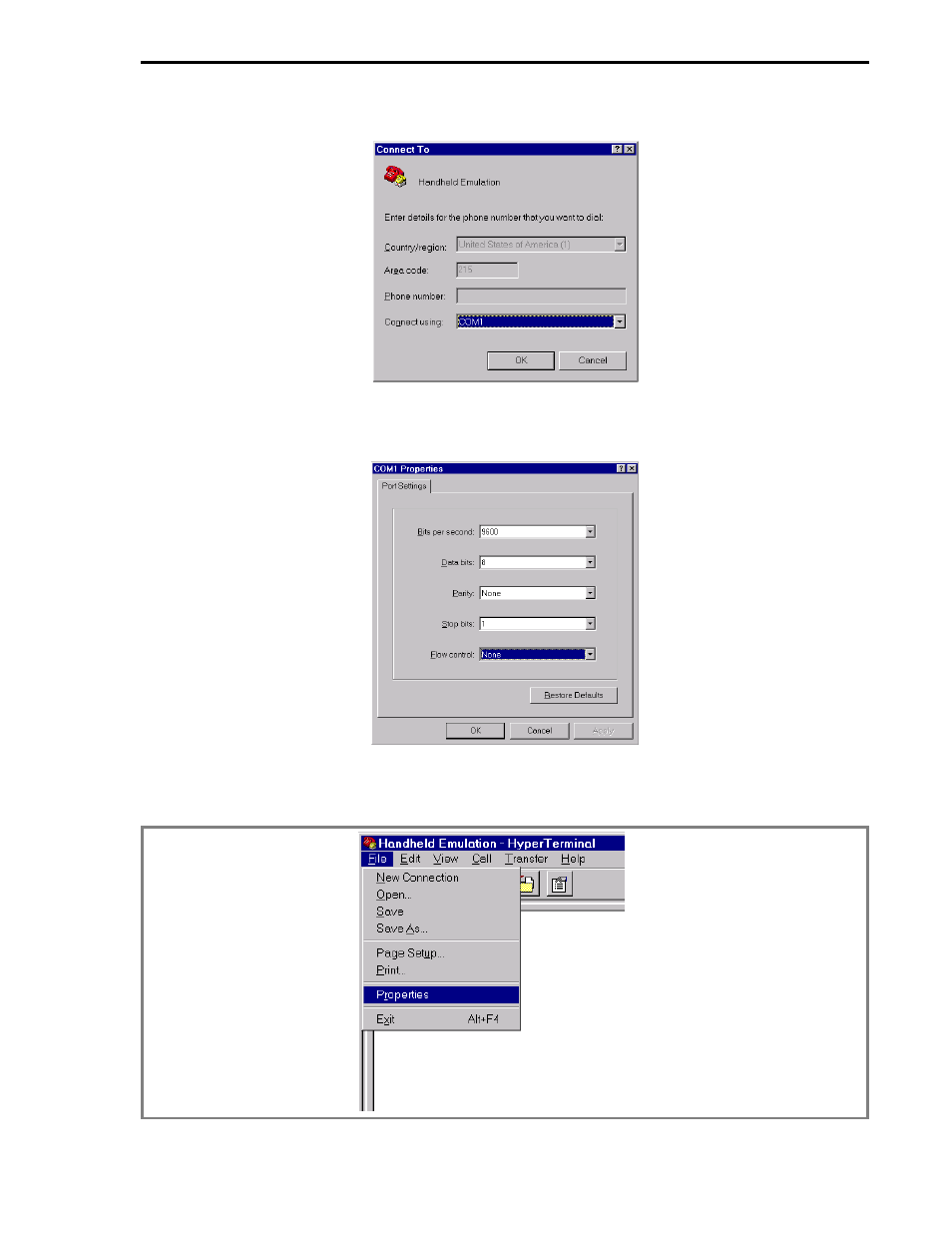

The next window is used to configure the PC COM port communications parameters. The
front port of the 53MC5000 has fixed communication parameters of 9600 baud, 8 Data Bits,
1 Stop Bit, and no Parity.
9.
When the proper settings have been made, select OK to accept the settings.
10. Select File Properties from the HyperTerminal tool bar.
MODULAR CONTROLLER QUICK START
3-25
