3.2.4 CONFIGURE A DATAPOINT
The following procedure illustrates how to alter the contents of datapoint C115 (CONTROL module
& Span parameter) from 100 to 200.
3.2.4.1 Procedure to Configure a Datapoint
•
Press the Mode button to enter the ENGINEER
mode indicated by the appearance of either CONFIG-
URE, DISPLAY or PROGRAM at the bottom of the
display.
•
If CONFIGURE does not appear, press F2 until CON-
FIGURE appears at the bottom of the display.
•
When CONFIGURE is displayed at the bottom, press
F3.
•
If using the Hi-Res display, as shown, press F2 until
DATAPOINT appears at the bottom of the display.
•
Then press F3 to enter DATAPOINT mode.
•

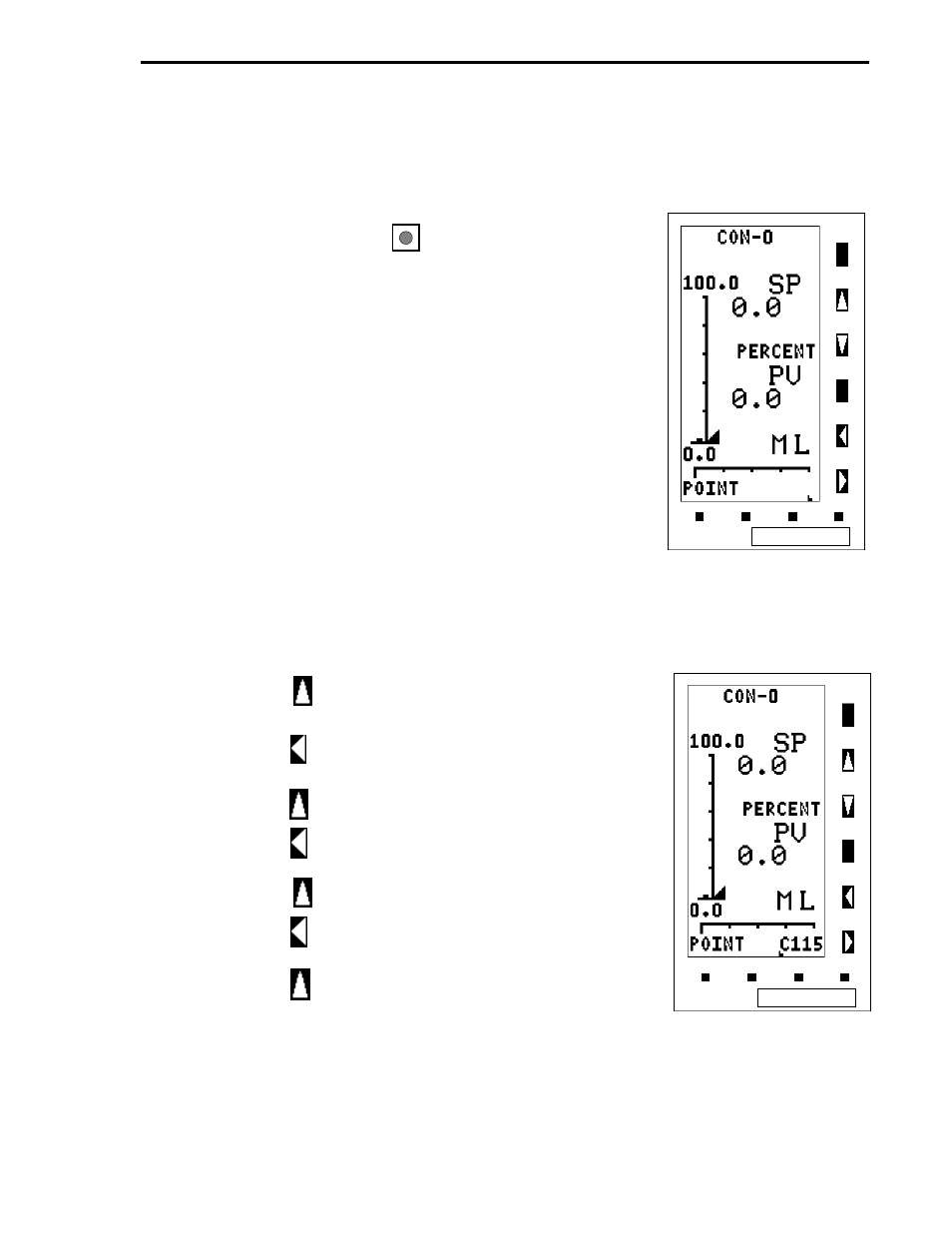

The screen should now show the point-entry line similar
to the one at the right.
•
Press the key until the character "C" appears on
the entry line.
•
Press the key to shift the first entry one position to
the left.
•
Press the key until "1" appears on the entry line.
•
Press the key to shift this entry one position to the
left.
•
Press the key until "1" appears on the entry line.
•
Press the key to shift this entry one position to the
left.
•
Press the key until "5" appears on the entry line.
•
The entry line should appear similar to that shown on
the right.
•
Press F3.
