Numeric and Datapoint Data
•

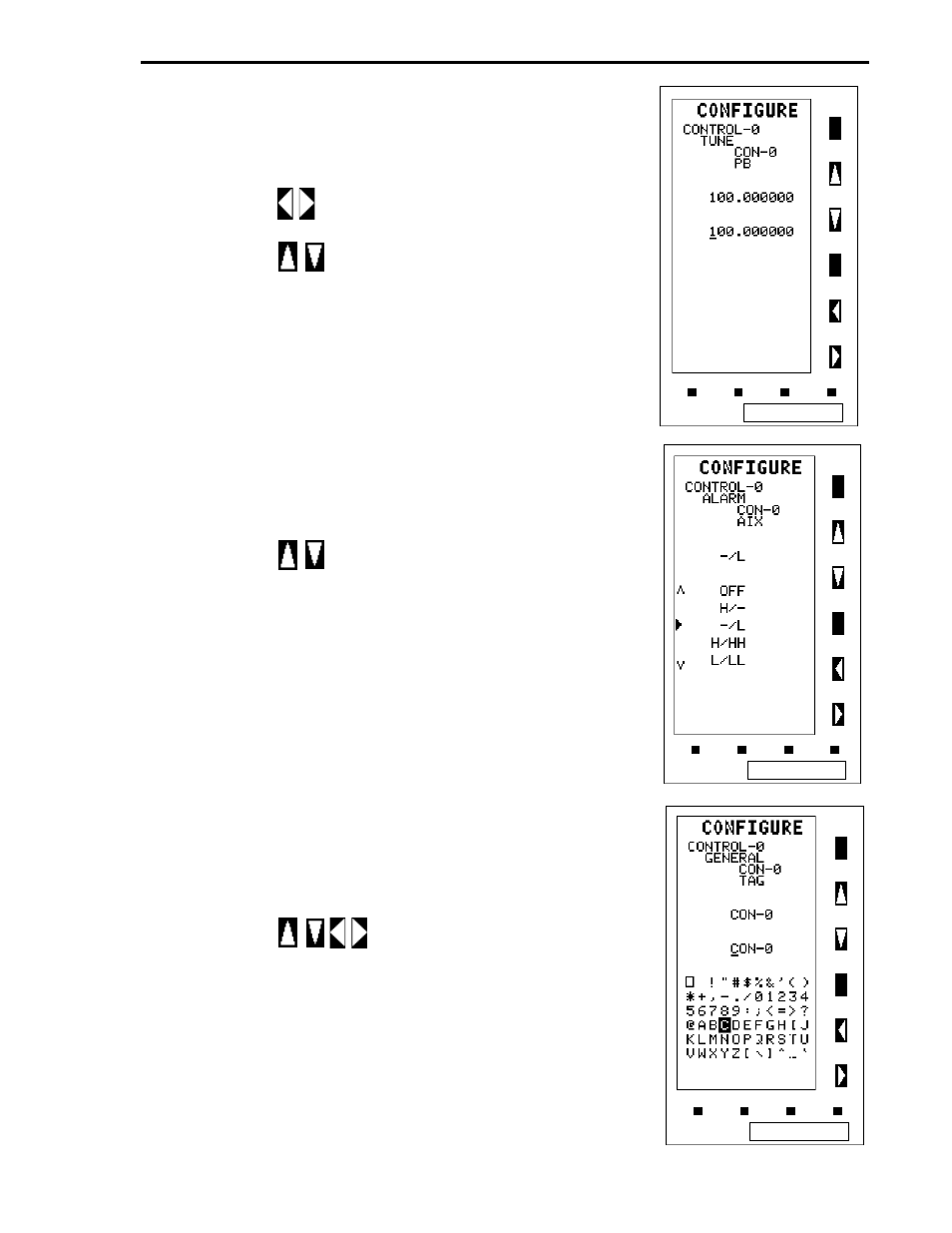

The current value and an editable value are displayed,
as shown in the screen to the right.
•
Use the buttons to select the desired character
position on the edit line
•
Use the buttons to change the character value
on the edit line.
•
Once the new value has been entered, press F3 to
accept the new value on the edit line and change the
parameter’s value or press F1 to abort the changes and
retain the current value.
Listed-Choices Data
•
A list of choices for the value is displayed with the
current value indicated, as shown to the right.
•
Use the buttons to scroll to the desired selec-
tion.
•
If the length of the list exceeds what can fit on the
screen, up (
∧
) and down (
∨
) arrows are displayed indi-
cating the direction to scroll in to view the additional
selections. An axample is shown in the screen to the
right.
•
Press F3 to accept the new value or press F1 to abort
the changes and retain the current value.
Word Data
•
The screen shows the current value, an editable value
and a table of alphanumeric characters from which to
select as shown in the example on the right.
•
The underline indicates the character to be changed.
•
Use the buttons to select the desired val-
ues from the alphanumeric table.
•
Press the F2 button to shift the underline one position
to the right. The underline "wraps around" to the left-
most character if scrolling past the right-most position.
•
Press F3 to accept the new value on the edit line and
change the parameter’s value or press F1 to abort the
changes and retain the current value.
