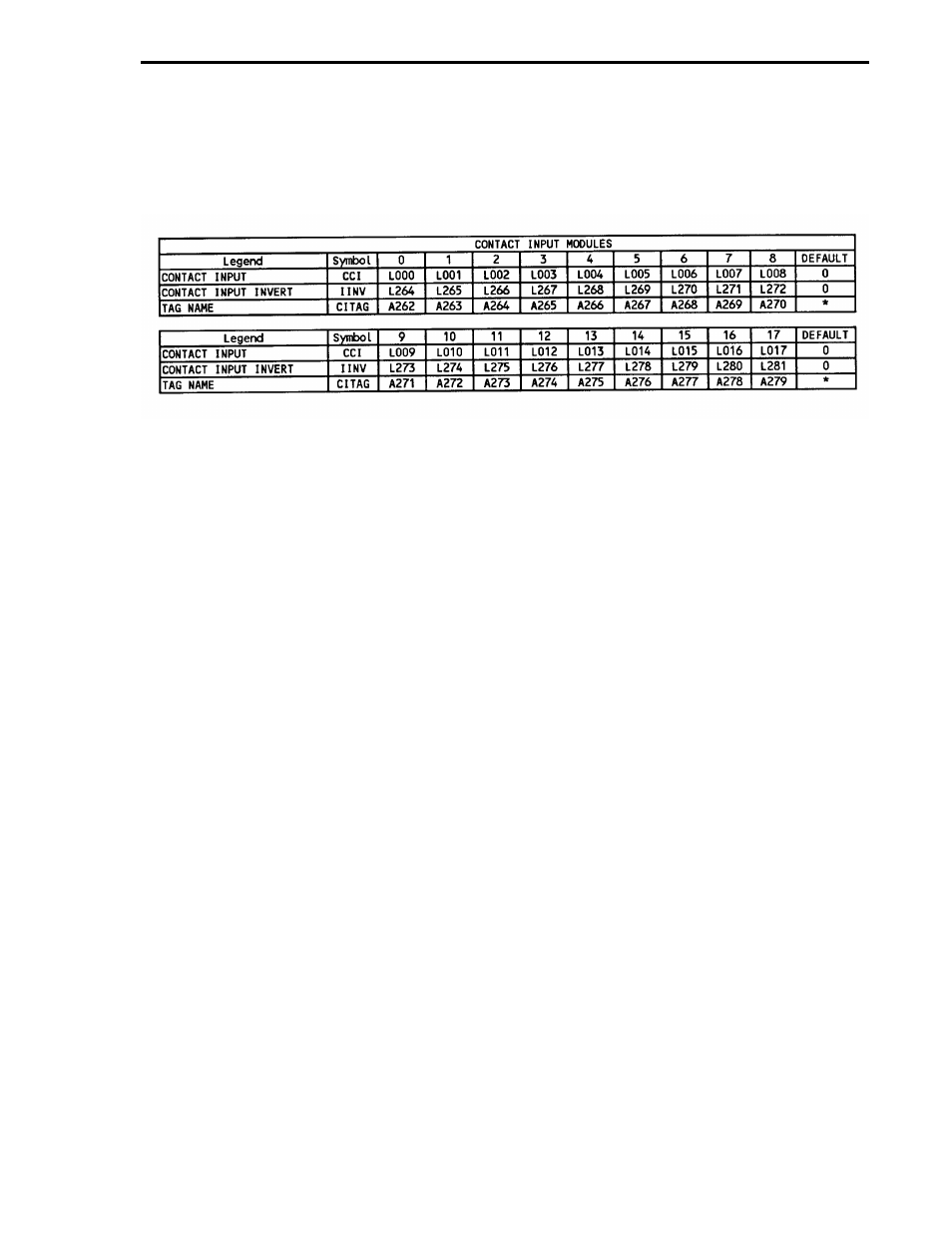

3.4.3 CONTACT INPUT MODULES
The contact input modules generate logic levels based on the applied voltages or contact condition
on the associated terminals. INPUTS DI2 - DI17 are active when the appropriate hardware options
are installed. The parameters for each module are given below.
CONTACT INPUT:
The value of this datapoint is either a "1" or "0" based on the input voltage level and the IINV pa-
rameter.
CONTACT INPUT INVERT:
When this datapoint is a "0" a closed contact or low voltage level will generate a "1" and an open
contact or high voltage will generate a "0" as the input value. When a "1" an open contact or high
voltage level will generate a "1" as the input value.
TAG NAME:
A 10 character user assigned name for each DI can be placed in this datapoint.
