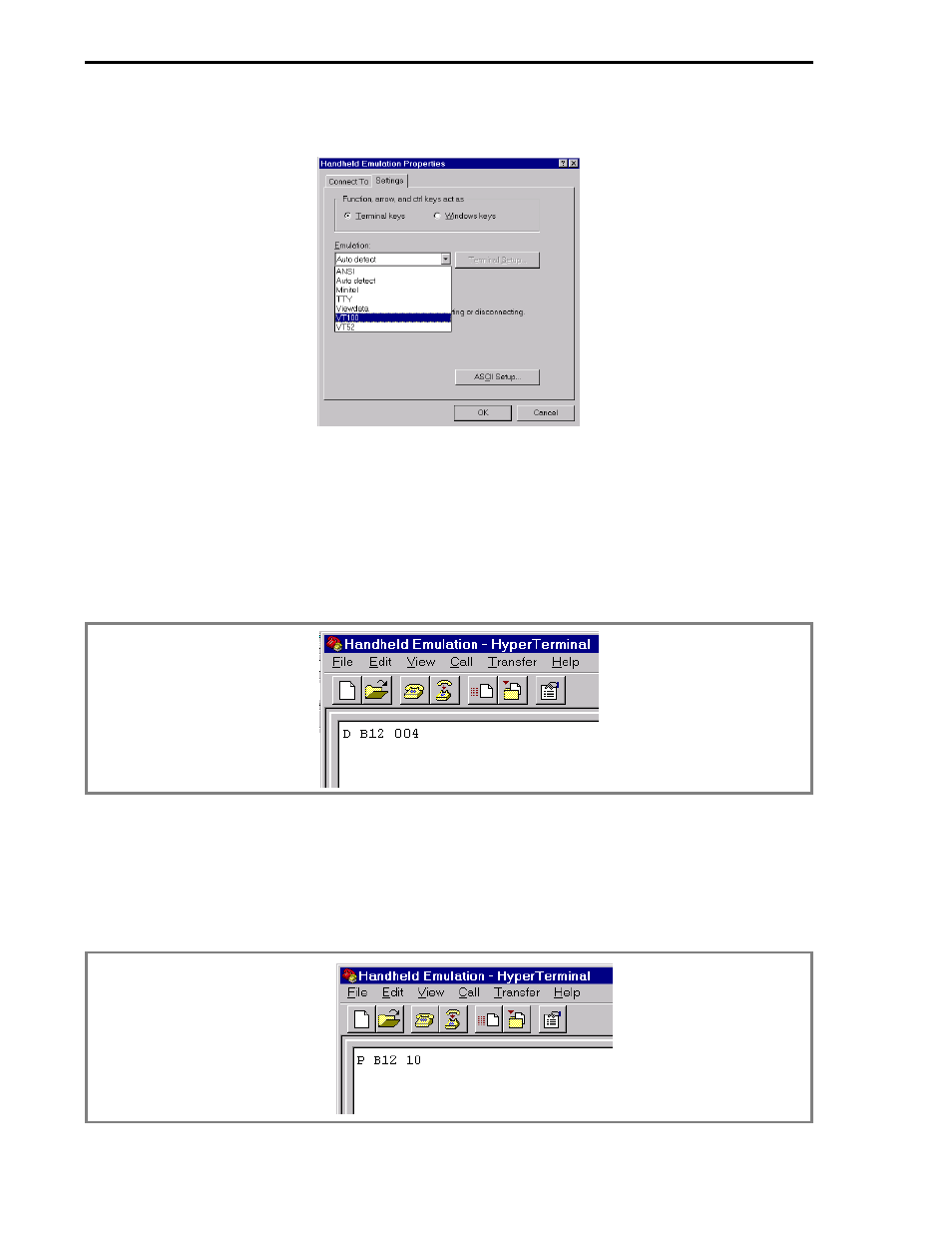

11. In the Properties window, select the Settings tab as pictured below. Choose the VT100

option from the Emulation pull down list. Click OK to continue.

12. The terminal mode setup is now complete. If the cable is connected between the controller

and the PC, the basic handheld functions may now be performed using the terminal mode.

13. Displaying database values:

Any database location within the controller can be displayed. To display a database location
type D. The controller will respond by placing a space after the letter D. Enter the database
location (such as B12) and press the ENTER key. The controller will respond by displaying
the current value of this database location.

14. Modifying a database location:

Any database location within the controller can also be modified. To modify a database
location type P (for put). The controller will respond by placing a space after the letter P.
Enter the database location to be modified and press the ENTER key. The controller will
respond again by sending a space. Enter the new value to be put into the database location
you selected and press the ENTER key.

MODULAR CONTROLLER QUICK START

3-26
