3.4.2 ANALOG OUTPUT MODULES

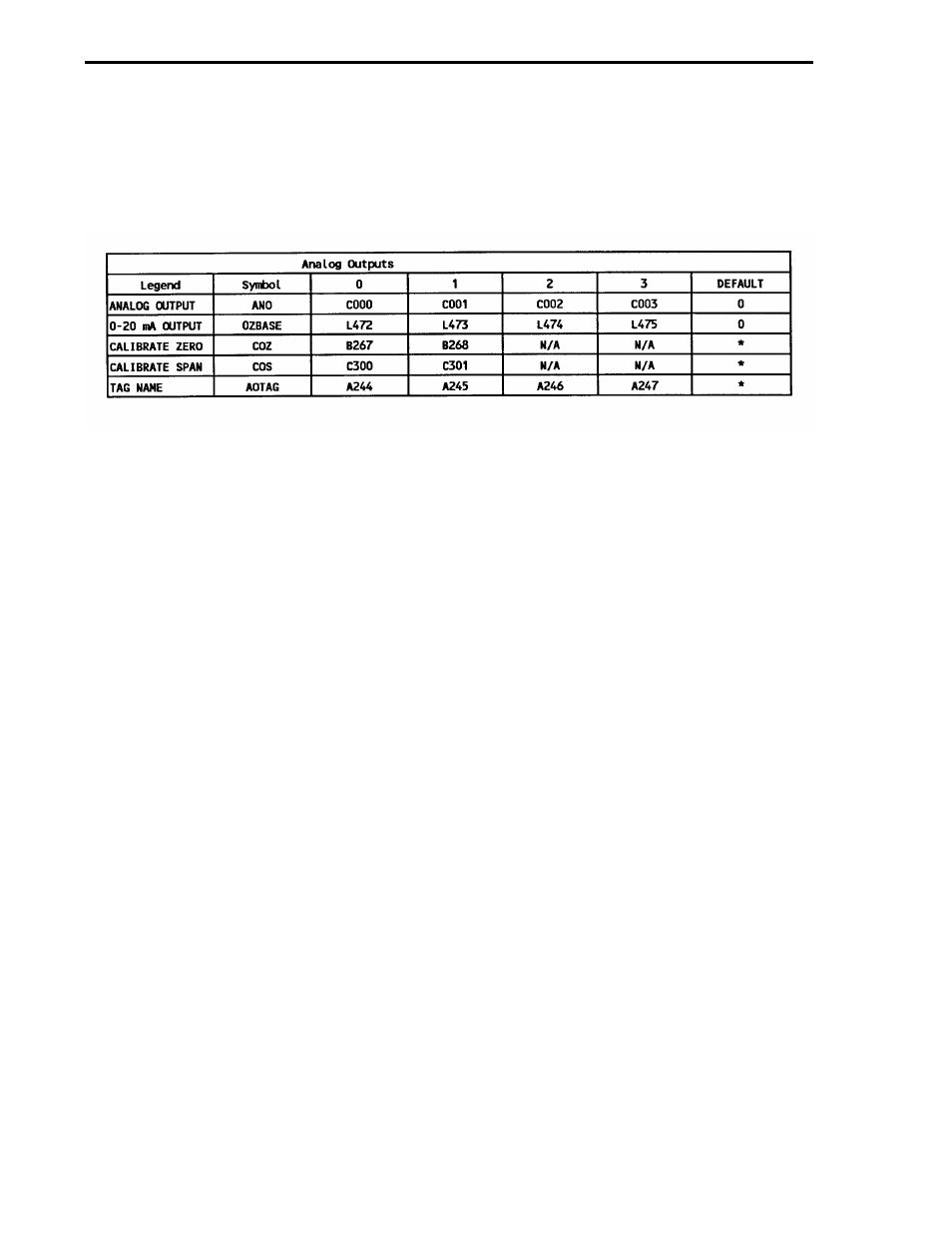

The analog output modules permit the user to configure the characteristics of each output. The
available parameters are shown below. Outputs AO2 and AO3 are only active if the appropriate
hardware option is installed.
ANALOG OUTPUT:
The value in this datapoint represents the percent of output to be generated by the hardware.
0 - 20 mA OUTPUT:
This datapoint indicates the percentage output should generate a 0-20 mA signal when a "1".
When a "0" the percentage output should generate a 0-20 mA signal.
CALIBRATE ZERO and SPAN:
These values are set at the factory for correct operation of the associated output. They should not
need adjustment under normal operation.
TAG NAME:
A 10 character user assigned name for each AO can be placed in this datapoint.
MODULAR CONTROLLER QUICK START
3-30
