Micromod Micro-DCI: 53MC5000 Multi-Loop Process Controller Installation User Manual
Page 33
3.2.2 DISPLAYING A DATAPOINT
The following procedure illustrates how to display the contents of datapoint B012, which is the dis-
play brightness index.Note that
B12 is shown being entered instead of B012 , since leading zeros
are not required when specifying datapoints.
3.2.2.1 Procedure to Display a Datapoint
•
Press the Mode button to enter the ENGINEER
mode indicated by the appearance of either CONFIG-
URE, DISPLAY or PROGRAM at the bottom of the
display.
•
If DISPLAY does not appear, press F2 until DISPLAY
appears
•
When DISPLAY appears at the bottom, press F3.
•
Press F2 until DATAPOINT appears at the bottom of
the display.
•

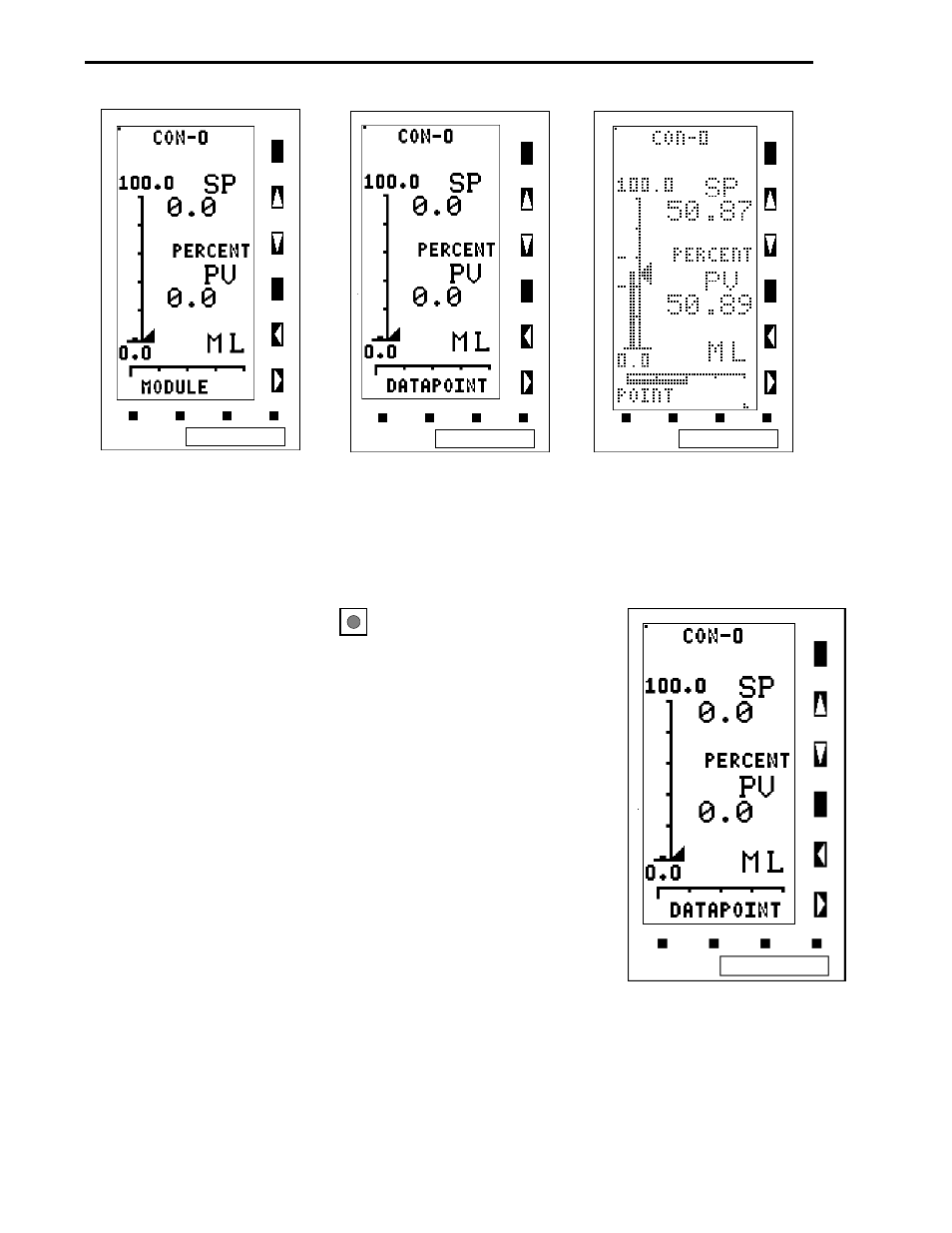

The bottom of the screen should appear as shown on
the right.
•
Press F3 to enter DATAPOINT mode.
MODULAR CONTROLLER QUICK START
3-8
