5. Ensure that the Drive Fluid filter orientation (top and bottom) matches the following figure
and reattach the tubing to the ends of the new filter. Tighten both fittings until they click.

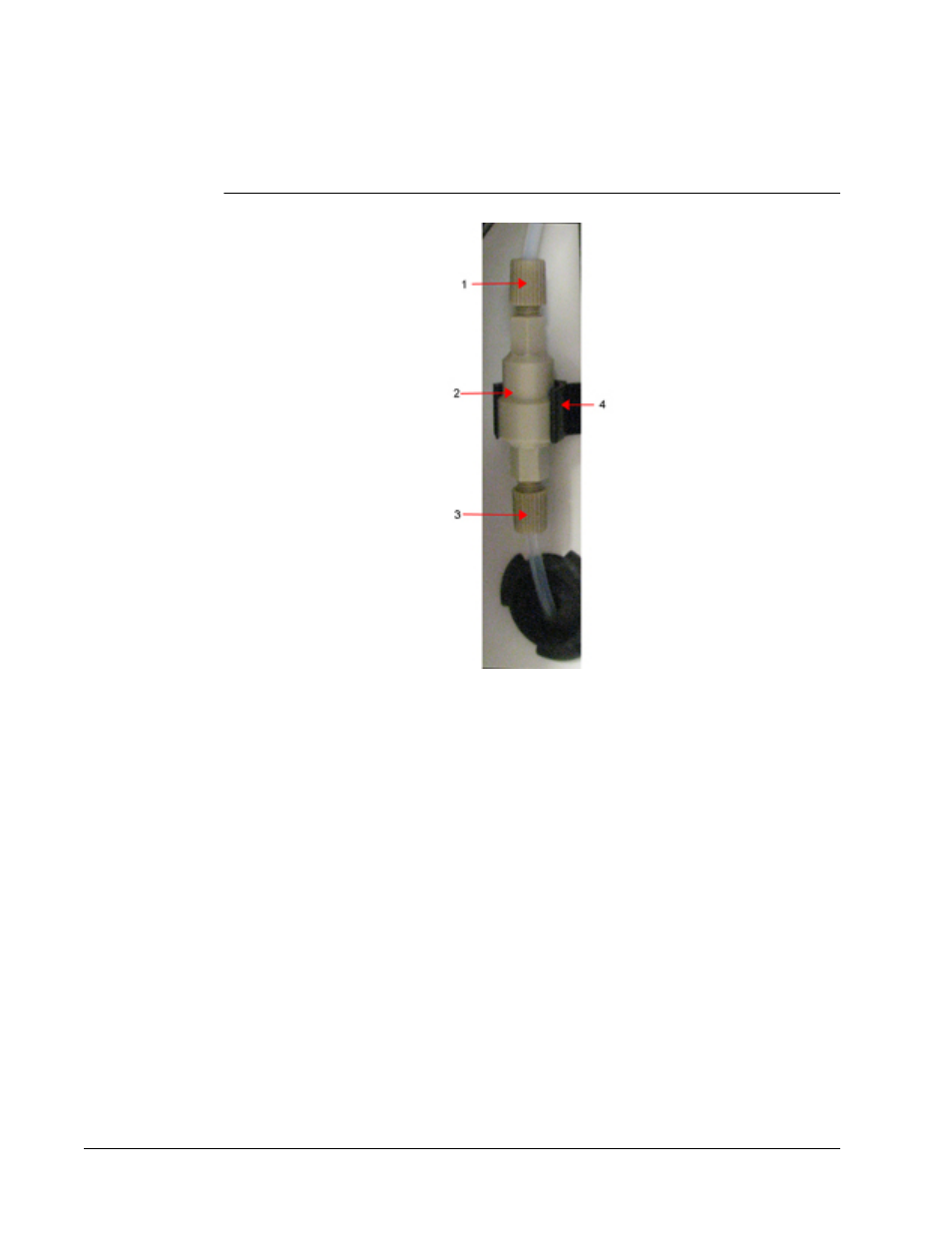

FIGURE 59. Drive Fluid Filter
1. Tube attachments (Unscrew in step 3)
2. Filter
3. Tube attachments (Unscrew in step 3)
4. Mounting bracket
6. Press the new filter into the mounting bracket.
7. Close the side access door.
8. Plug in the power cord and turn on MAGPIX.
9. Use the software to run the Prime command twice. Ensure that Drive Fluid is being
pulled into the syringe during the prime.
