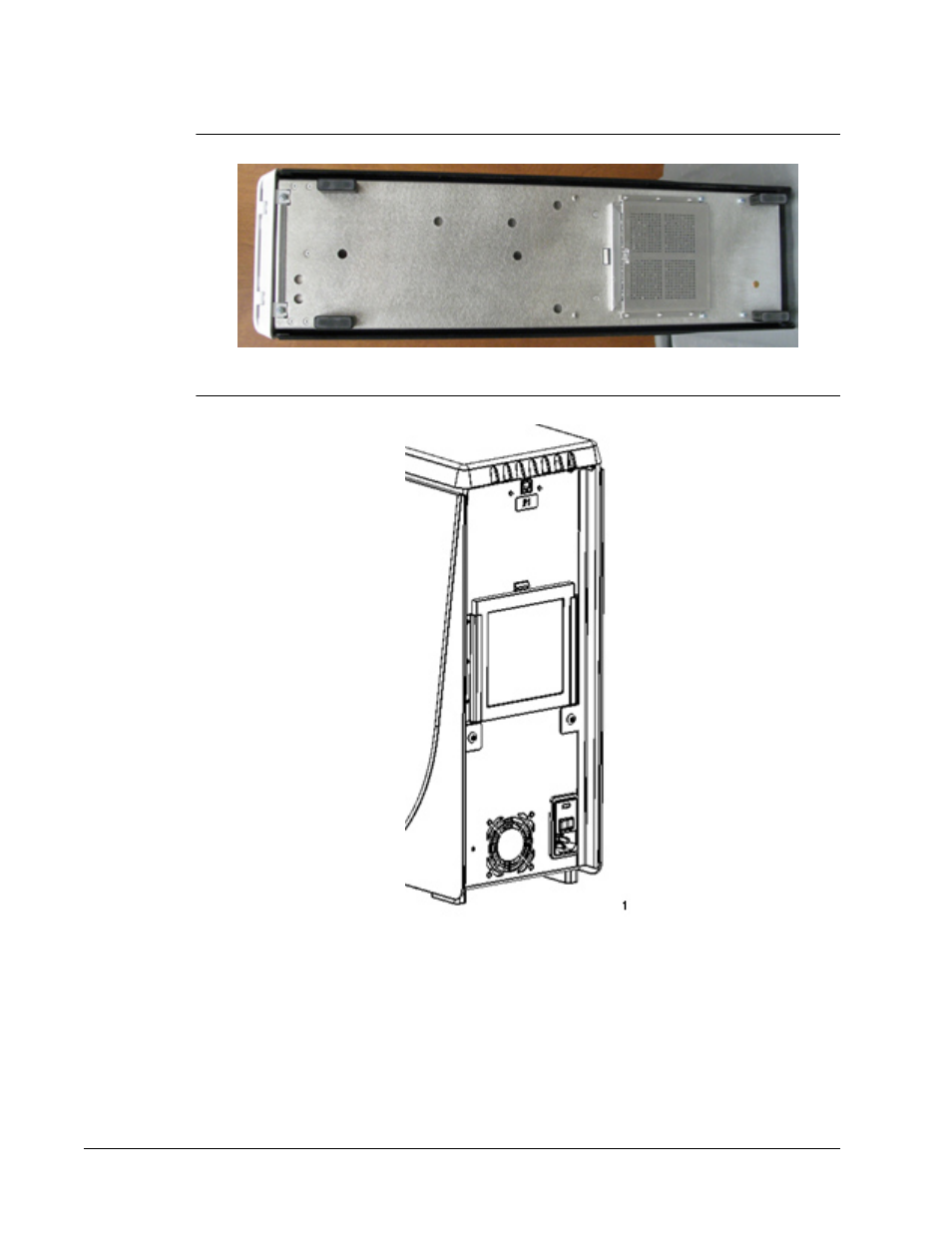

FIGURE 49. Bottom of MAGPIX showing filter in place in holder
FIGURE 50. Back of MAGPIX showing filter in place in holder
Optical Subsystem
The MAGPIX optical subsystem consists of red and green LED illumination, a CCD-based
camera, an imaging chamber, and a magnet to hold the magnetic microspheres in place
during the imaging process. The optical subsystem is contained in the same area as the
PCBAs. It is not accessible by the user and requires no user maintenance.
Technical Overview
53
