Before handling or unpacking MAGPIX, make certain that the selected site is appropriate.
Refer to the
Installation Diagrams on page 12 for handling and site installation requirements
and detailed dimensions of MAGPIX.
Check for these requirements:
• Indoors
• Operating temperature of 15-35°C (59-95°F)
• Operating relative humidity of 20-80%, noncondensing
• Operating altitude up to 2400m (7874 ft) above mean sea level
• Available electrical power outlet with protective earthing and easy accessibility
• Available area of approximately 3’ X 3’ (91.44cm), including a 2” (5.08cm) clearance
between the back of MAGPIX and any wall or vertical surface.
• Stable, level surface
MAGPIX arrives in a large, corrugated cardboard overpack on skids.

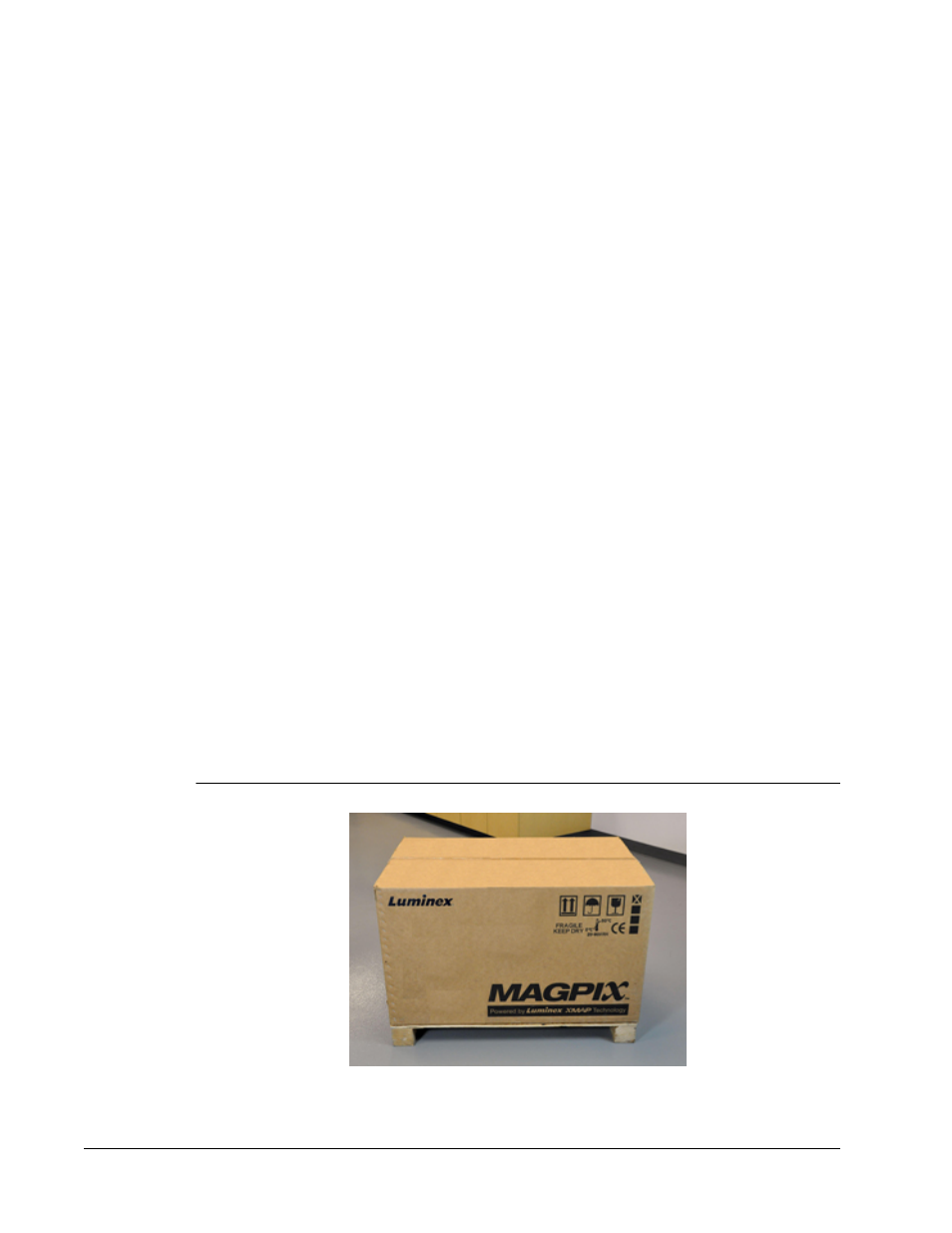

FIGURE 8. The MAGPIX Overpack
